HJL36150U43X Schneider Electric Industrial Automation Components

What is the price of HJL36150U43X?
Purchase the HJL36150U43X from Powermatic Associates at the price of $6,117.00. Order today.

Out if stock but available for backorder.

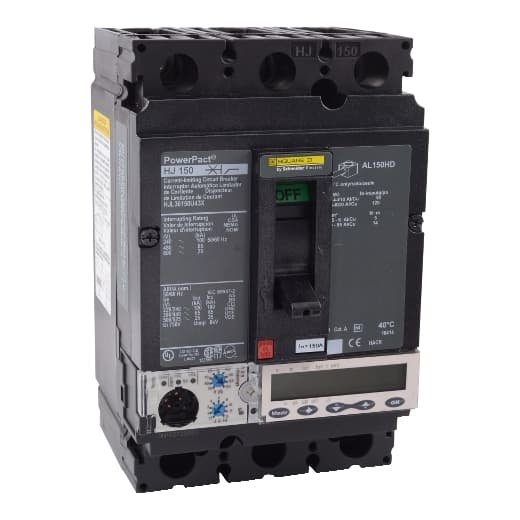

Square D by Schneider Electric HJL36150U43X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 5.2A (LSI) design. It is a 3-pole (3P) device with a rated current of 150A and offers a connection type with lugs on both load and line sides. This MCCB provides protection functions including Long-time (L), Short-time with fixed time delay (S), Instantaneous (I), and Zone Selective Interlocking (ZSI). It has a rated insulation voltage (Ui) of 750 V, rated voltages of 600Vac and 250Vdc, and a degree of protection of IP40. The operating mode is manual toggle. Protection settings are adjustable for overload (0.3...1 x In), short-circuit with time delay (1.5...10 x lr), and instantaneous protection against short-circuit (1.5...15 x In). It features a rated operating voltage (Ue) of 690 V, rated impulse voltage (Uimp) of 8 kV, and short circuit breaking ratings as specified for various voltages. The trip unit is an electronic Micrologic Ammeter 5.2A with LSI protection and an LCD display. Measurement functions include current measurements for phases and neutral, RMS instantaneous current, current unbalance, highest RMS current of the three phases, ground fault current, and demand/peak current values with an adjustable calculation window of 5-60min. It is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The utilisation category is A.
