LC1D2583E7 Schneider Electric Industrial Automation Components

LC1D2583E7 on Powermatic Associates
Schneider Electric

Part#:LC1D2583E7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

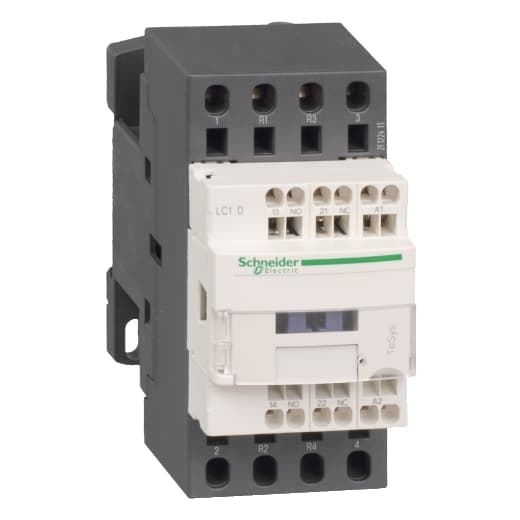

Schneider Electric LC1D2583E7 is a magnetic contactor from the Deca sub-range, featuring spring connections and a 4-pole (2NO+2NC) configuration. It has a rated current of 40A (AC-1) and is designed for DIN rail mounting. The contactor's net width is 45 mm and it offers a degree of protection of IP20. The control voltage (AC) ranges from 38.4-52.8Vac (48Vac nominal; 50Hz; 0.8...1.1 x Uc) to 40.8-52.8Vac (48Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, both types being 1NO+1NC instantaneous auxiliaries. The rated impulse voltage (Uimp) is 6 kV, and it boasts a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is also 690 V.

Product Details

  • Overvoltage Category
    III
  • Product Name
    TeSys D
  • [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz
  • Average Impedance
    2 mOhm - Ith 40 A 50 Hz power circuit
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Minimum Switching Voltage
    17 V signalling circuit
  • Power Pole Contact Composition
    2 NO + 2 NC
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Power Dissipation Per Pole
    3.2 W AC-1
  • Heat Dissipation
    2…3 W 50/60 Hz
  • Range
    TeSys
  • Control Circuit Type
    AC 50/60 Hz
  • Coil Technology
    Without built-in suppressor module
  • Contactor Application
    Resistive load
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Product Or Component Type
    Contactor
  • Utilisation Category
    AC-1
  • Signalling Circuit Frequency
    25...400 Hz
  • Poles Description
    4P
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Front Cover
    With
  • Device Short Name
    LC1D
  • Rated Breaking Capacity
    450 A 440 V power circuit IEC 60947
  • [Ie] Rated Operational Current
    40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Electrical Durability
    1.4 Mcycles 40 A AC-1 <= 440 V
  • Mechanical Durability
    15 Mcycles
  • Minimum Switching Current
    5 mA signalling circuit
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 40 A 140 °F (60 °C) power circuit
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Mounting Support
    Rail Plate
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Operating Time
    12...22 ms closing 4...19 ms opening
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 40 A gG <= 690 V type 2 power circuit
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 450 A 440 V power circuit IEC 60947
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring terminals 1 0.02 in² (10 mm²)flexible without cable end
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • [Icw] Rated Short-Time Withstand Current
    240 A 104 °F (40 °C) - 10 s power circuit 380 A 104 °F (40 °C) - 1 s power circuit 50 A 104 °F (40 °C) - 10 min power circuit 120 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Product Certifications
    GOST CSA LROS (Lloyds register of shipping) DNV RINA GL BV CCC UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D2583E7 on Powermatic Associates is $253.68. Order now.
