LC1D32KUE Schneider Electric Industrial Automation Components

LC1D32KUE on Powermatic Associates
Schneider Electric

Part#:LC1D32KUE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

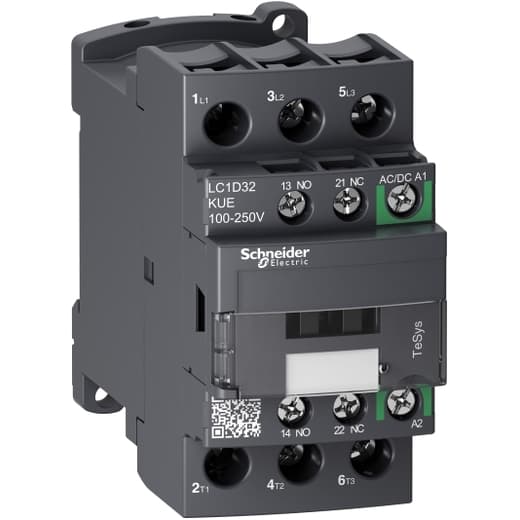

Schneider Electric LC1D32KUE is a magnetic contactor from the Deca Green sub-range, featuring a low-consumption coil (1.4VA / 1.3W) that is electronically-controlled. It offers screw connections and is designed with 3 poles (3P; 3NO), supporting a rated current of 50A (AC-1) and 32A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It provides a degree of protection of IP20 and operates with control voltages ranging from 85-275Vdc (100-250Vdc nom.; 0.85...1.1 x Uc) for DC and 85-275Vac (100-250Vac nom.; 50Hz/60Hz; 0.85...1.1 x Uc) for AC. The rated operating voltage (Ue) is up to 690 V, and it includes 1 NO and 1 NC auxiliary contacts with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power up to 18.5kW for various AC voltages. The rated power in horsepower ranges from 2HP to 25HP across different voltages and phases, adhering to UL/CSA standards. Its mechanical durability is rated at 15,000,000 operations, and its electrical durability with load is 1,600,000 operations. The rated voltage (AC) phase-to-phase is 690 V, with a power consumption of 1.3 W.

Product Details

  • Range
    TeSys
  • Overvoltage Category
    III
  • Signalling Circuit Frequency
    25...400 Hz
  • Product Or Component Type
    Contactor
  • Heat Dissipation
    1.1 W 50/60 Hz
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • Poles Description
    3P
  • Front Cover
    With
  • Hold-In Power Consumption In VA
    1.6 VA 68 °F (20 °C)) 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Power Pole Contact Composition
    3 NO
  • Mechanical Durability
    15 Mcycles
  • Hold-In Power Consumption In W
    1.1 W 68 °F (20 °C)
  • Device Short Name
    LC1D
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Rated Breaking Capacity
    550 A 440 V power circuit IEC 60947
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Inrush Power In VA
    25 VA 50/60 Hz 68 °F (20 °C))
  • Coil Type
    AC/DC electronic
  • Average Impedance
    2 mOhm - Ith 50 A 50 Hz power circuit
  • Product Name
    TeSys D Green
  • Inrush Power In W
    18 W 68 °F (20 °C)
  • Coil Technology
    Built-in bidirectional peak limiting
  • Minimum Switching Voltage
    17 V signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Minimum Switching Current
    5 mA signalling circuit
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 50 A 140 °F (60 °C) power circuit
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • [Ie] Rated Operational Current
    32 A 140 °F (60 °C)) <= 440 V AC-3 power circuit 50 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
  • Power Dissipation Per Pole
    2 W AC-3 5 W AC-1
  • Contactor Application
    Resistive load Motor control
  • Electrical Durability
    2.1 Mcycles 29 A AC-3 <= 440 V 0.9 Mcycles 50 A AC-1 <= 440 V
  • Utilisation Category
    AC-3 AC-1
  • [Uc] Control Circuit Voltage
    100...250 V AC 50/60 Hz 100...250 V DC
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Operating Time
    45...55 ms closing 20...90 ms opening
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Mounting Support
    Plate Rail
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.13 lb
  • Motor Power Kw
    7.5 kW 220...230 V AC 50 Hz AC-3) 15 kW 380...400 V AC 50 Hz AC-3) 15 kW 415 V AC 50 Hz AC-3) 15 kW 440 V AC 50 Hz AC-3) 18.5 kW 500 V AC 50 Hz AC-3) 18.5 kW 660...690 V AC 50 Hz AC-3)
  • [Icw] Rated Short-Time Withstand Current
    100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit 60 A 104 °F (40 °C) - 10 min power circuit 138 A 104 °F (40 °C) - 1 min power circuit 260 A 104 °F (40 °C) - 10 s power circuit
  • Motor Power HP (UL / CSA)
    2 hp 115 V at AC 60 Hz for 1 phase 5 hp 230/240 V at AC 60 Hz for 1 phase 10 hp 200/208 V at AC 60 Hz for 3 phase 10 hp 230/240 V at AC 60 Hz for 3 phase 20 hp 460/480 V at AC 60 Hz for 3 phase 25 hp 575/600 V at AC 60 Hz for 3 ph
  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D32KUE on Powermatic Associates is $279.80. Order now.
