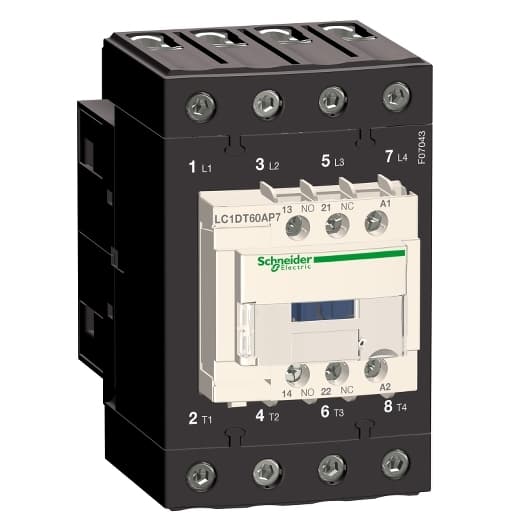

LC1DT60AF7 Schneider Electric Industrial Automation Components

Product Details

• Product Certifications
  GL CCC CSA RINA DNV LROS (Lloyds register of shipping) GOST BV UL
• [Icw] Rated Short-Time Withstand Current
  320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
• Standards
  CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
• [Ui] Rated Insulation Voltage
  Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
• Control Circuit Voltage Limits
  0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
• Associated Fuse Rating
  10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
• Irms Rated Making Capacity
  140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
• Connections - Terminals
  Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
• Mounting Support
  Rail Plate
• Auxiliary Contacts Type
  Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
• Inrush Power In VA
  140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
• [Ue] Rated Operational Voltage
  Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
• [Ith] Conventional Free Air Thermal Current
  10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
• Hold-In Power Consumption In VA
  13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
• Non-Overlap Time
  1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
• Safety Reliability Level
  B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Operating Time
  4...19 ms opening 12...26 ms closing
• Front Cover
  With
• Average Impedance
  1.6 mOhm - Ith 60 A 50 Hz power circuit
Electrical Durability
1.4 Mcycles 60 A AC-1 <= 440 V
Rated Breaking Capacity
800 A 440 V power circuit IEC 60947
[Ie] Rated Operational Current
60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
Auxiliary Contact Composition
1 NO + 1 NC
Minimum Switching Current
5 mA signalling circuit
Insulation Resistance
> 10 MOhm signalling circuit
Signalling Circuit Frequency
25...400 Hz
Minimum Switching Voltage
17 V signalling circuit
Coil Technology
Without built-in suppressor module
Heat Dissipation
4…5 W 50/60 Hz
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Mechanical Durability
6 Mcycles
Power Dissipation Per Pole
5.8 W AC-1
Overvoltage Category
III
Control Circuit Type
AC 50/60 Hz
[Uc] Control Circuit Voltage
110 V AC 50/60 Hz
Product Or Component Type
Contactor
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Product Name
TeSys D
Power Pole Contact Composition
4 NO
Poles Description
4P
Device Short Name
LC1D
Utilisation Category
AC-1
Contactor Application
Resistive load
Range
TeSys
