PJL36000S60 Schneider Electric Industrial Automation Components

PJL36000S60 on Powermatic Associates
Schneider Electric

Part#:PJL36000S60

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

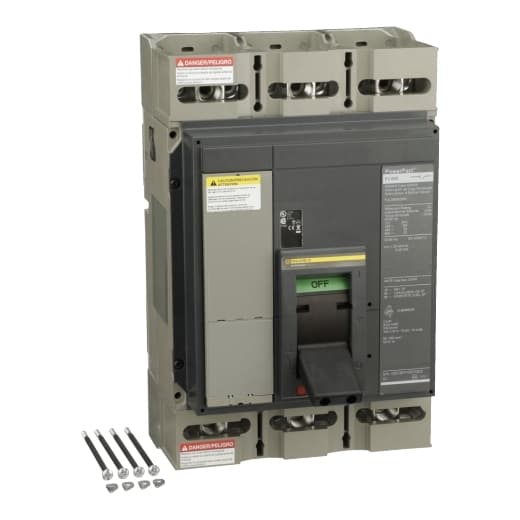

Square D by Schneider Electric PJL36000S60 is an automatic molded case switch-disconnector designed for mounting plate installation. It features a rated current of 600A and a connection type that utilizes lugs on both the load and line side. This part falls under the PowerPact PJL sub-range and is specified with a rated voltage (AC) of 600 V. It is equipped with 3 poles, all of which are protected, and has a frame current rating of 1200 AF.

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line
  • Depth
    8.05 in (204.47 mm)
  • Number Of Poles
    3P
  • Width
    8.27 in (210.06 mm)
  • Height
    12.86 in (326.64 mm)
  • Breaking Capacity Code
    J
  • Line Rated Current
    600 A
  • Product Or Component Type
    Automatic switch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36000S60 on Powermatic Associates is $6,584.00. Order now.

PJL36000S60 Related Documents

Product Datasheet-1631030556738.pdfInstruction Sheet-1631030556743.pdfCatalog-1631030556745.pdf
