PJL36060CU31A Schneider Electric Industrial Automation Components

PJL36060CU31A on Powermatic Associates
Schneider Electric

Part#:PJL36060CU31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

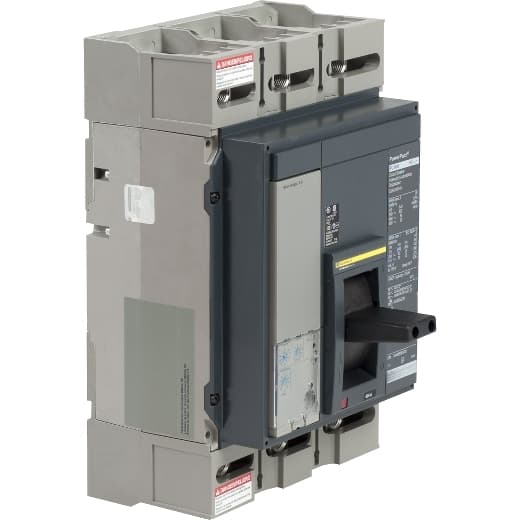

Square D by Schneider Electric PJL36060CU31A is a molded case circuit breaker (MCCB) designed for mounting on a plate. This PowerPact PJL series breaker is rated for 600A with a connection type of lugs on both the load and line sides. It operates at a rated voltage of 600V AC and features three poles. The protection functions include long-time protection (L), short-time protection with fixed time delay (S), and instantaneous protection (I), supported by a trip current rating of 600 AT and a frame current rating of 1200 AF. Its short circuit breaking rating is specified as 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, covering all three protected poles. The breaker utilizes an ET5.0 (LSI) electronic trip unit.

Product Details

  • Height
    12.86 in (326.64 mm)
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Device Short Name
    A
  • Depth
    8.05 in (204.47 mm)
  • Electrical Connection
    Lugs load Lugs line
  • Line Rated Current
    600 A
  • Continuous Current Rating
    100 %
  • Width
    8.27 in (210.06 mm)
  • Breaking Capacity Code
    J
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36060CU31A on Powermatic Associates is $22,868.00. Order now.
