Part#:PJL36060M68

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

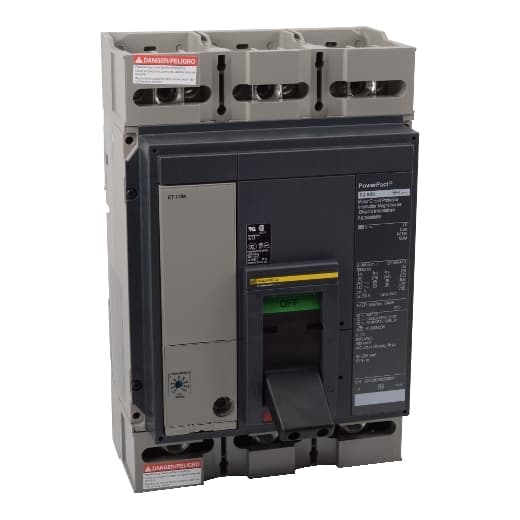

Square D by Schneider Electric PJL36060M68 is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. It features a standard model with an 80% rated current of 800A and utilizes lugs for both load and line side connections. This MCCB falls under the PowerPact PJL sub-range and is rated for 600V AC with a 3-pole configuration. It offers protection functions including Long-time (L) and Instantaneous (I) protection, with a trip current rating of 800 AT and a frame current rating of 1200 AF. The short circuit breaking rating varies by voltage: 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, protecting all three poles. The trip unit type is an ET1.01 (LI) Electronic, ensuring precise operation under specified conditions.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Continuous Current Rating
    80 %
  • Width
    8.27 in (210.06 mm)
  • Depth
    8.05 in (204.47 mm)
  • Height
    12.86 in (326.64 mm)
  • Breaking Capacity Code
    J
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    600 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36060M68 on Powermatic Associates is $7,560.00. Order now.
