Part#:PJL36080U43A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

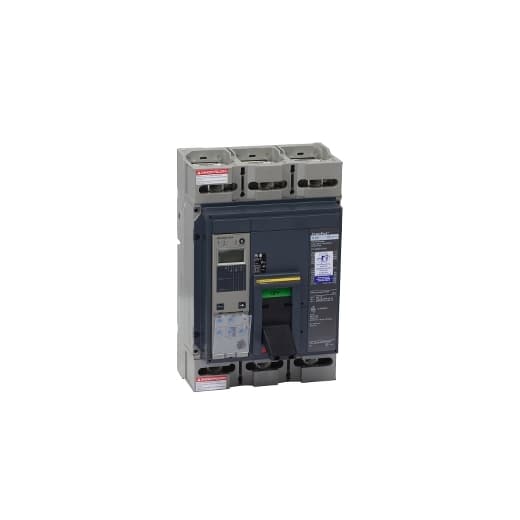

Square D by Schneider Electric PJL36080U43A is a Moulded Case Circuit Breaker (MCCB) designed for mounting on a plate. This standard model, part of the PowerPact PJL sub-range, features a rated current of 1000A and operates with a connection type of lugs on both the load and line sides. It is a 3 Pole device, equipped with an ET1.01 (LI) electronic trip unit, providing Long-time (L) and Instantaneous (I) protection functions. The breaker has a rated voltage of 600V AC, a trip current rating of 1000 AT, and a frame current rating of 1200 AF. Its short circuit breaking rating varies by voltage: 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, ensuring protection across all three poles.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36080U43A on Powermatic Associates is $17,921.00. Order now.
