T02AN23T7 Schneider Electric Electronic Components

T02AN23T7 on Powermatic Associates
Schneider Electric

Part#:T02AN23T7

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

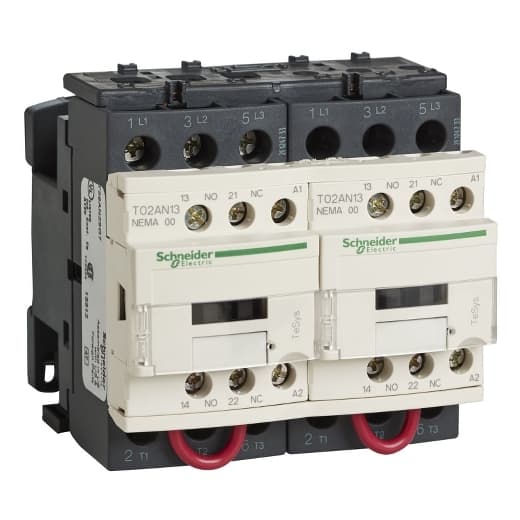

NEMA Contactor, TeSys N, reversing, Size 00, 9A, 2HP at 460VAC, 3 pole, 3 phase, 480VAC 50/60Hz coil, open

Product Details

  • Product Type
    Contactor
  • NEMA Size
    00
  • Electrical Connection
    Screw clamp terminals
  • [Ue] Rated Operational Voltage
    600 V AC
  • Number Of Poles
    480 V AC
  • Contactor Type
    Reversing
  • Coil Volltage
    3 phase
  • Network Phases
    Common control circuit
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Rated Current
    9 A
  • Range
    TeSys N
  • Control Circuit
    3P
  • Motor Horsepower Rating HP
    1.5 hp 200 V AC 1.5 hp 230 V AC 2 hp 460 V AC 2 hp 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T02AN23T7 on Powermatic Associates is $643.74. Order now.

T02AN23T7 Related Documents

Catalog-1631032409162.pdfInstruction Sheet-1631032409153.pdfProduct Datasheet-1631032409150.pdf
