T02CN13T7 Schneider Electric Electronic Components

T02CN13T7 on Powermatic Associates
Schneider Electric

Part#:T02CN13T7

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

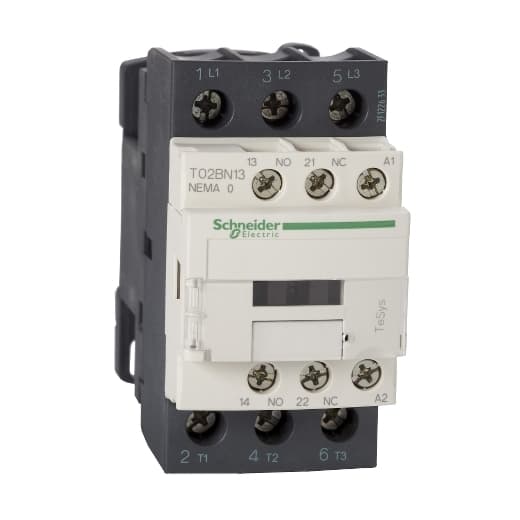

NEMA Contactor, TeSys N, nonreversing, Size 1, 27A, 10HP at 460VAC, 3 pole, 3 phase, 480VAC 50/60Hz coil, open

Product Details

  • Product Type
    Contactor
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Number Of Poles
    3P
  • Depth
    3.66 in (92.96 mm)
  • Coil Volltage
    480 V AC
  • Range
    TeSys N
  • Control Circuit
    Common control circuit
  • Contactor Type
    Non-reversing
  • Network Phases
    3 phase
  • Width
    1.76 in (44.70 mm)
  • NEMA Size
    1
  • Electrical Connection
    Screw clamp terminals
  • [Ue] Rated Operational Voltage
    600 V AC
  • Product Weight
    0.92 lb(US) (0.42 kg)
  • Rated Current
    27 A
  • Height
    3.34 in (84.84 mm)
  • Motor Horsepower Rating HP
    7.5 hp 200 V AC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T02CN13T7 on Powermatic Associates is $267.90. Order now.
