XB4BW3345 Schneider Electric Industrial Automation Components
Part#:XB4BW3345
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

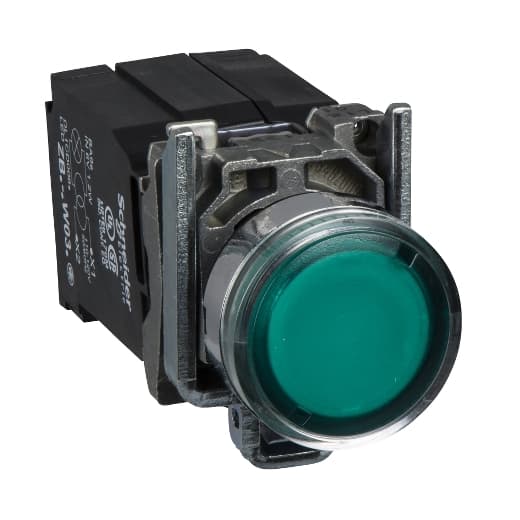

Schneider Electric XB4BW3345 is an illuminated flush push-button featuring an integral transformer, BA9s base, and incandescent bulb. This push-button, part of the XB4 sub-range, comes with a chromium-plated bezel and is constructed from Zamak for the body and metal for the bezel. It is designed with a round shape and offers a degree of protection rated at IP66, NEMA 4X, and NEMA 13. The mechanical durability of this device is rated for 5,000,000 operations at no load, with an electrical durability (with load) of 1,000,000 operations. It operates on a network frequency of 50/60 Hz and has dimensions of 22 mm in diameter, 47 mm in height, 101 mm in depth, and 30 mm in width. The XB4BW3345 supports a supply voltage of 220 V AC, 230 V AC, and 240 V AC, and features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. The light color is green, and it includes short-circuit protection by a 10A gG cartridge fuse. The control circuit rated current is specified as 10 A (120Vac; AC-15), 6 A (240Vac; AC-15), 3 A (600Vac; AC-15), 1.2 A (125Vdc; DC-13), 0.55 A (250Vdc; DC-13), and 0.27 A (600Vdc; DC-13) to 0.1 A. It features screw-clamp terminals, requires an operating force of 3.8 N, and is designed for spring-return (impulse/momentary) operation with a plain lens type.
Product Details
- Range Of Product Harmony XB4
- Height 1.85 in (47 mm)
- Device Presentation Complete product
- Bezel Material Chromium plated metal
- Contact Operation Slow-break
- Contacts Type And Composition 1 NO + 1 NC
- Contacts Material Silver alloy (Ag/Ni)
- Mounting Diameter 0.87 in (22 mm)
- Light Source Incandescent
- Net Weight 0.37 lb(US) (0.17 kg)
- Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
- Fixing Collar Material Zamak
- Light Block Supply Via integral transformer 1.2 VA 6 V
- Contacts Usage Standard contacts
- [Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
- Head Type Standard
- Bulb Base BA 9s
- Device Short Name XB4
- [Us] Rated Supply Voltage 220...240 V AC 50/60 Hz
- Depth 3.98 in (101 mm)
- Shape Of Signaling Unit Head Round
- Positive Opening With conforming to EN/IEC 60947-5-1 appendix K
- [Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
- Product Or Component Type Illuminated push-button
- Operator Profile Green flush
- Tightening Torque 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- Sale Per Indivisible Quantity 1
- Operator Additional Information With plain lens
- Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- [Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1
- Type Of Operator spring return
- Width 1.18 in (30 mm)
- Mechanical Durability 10000000 cycles
- Signalling Type Steady
- Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
- Operating Force 3.5 N NC changing electrical state 3.8 N
- Terminals Description ISO N°1 (21-22)NC (13-14)NO
- Electrical Reliability Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- Connections - Terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Operating Travel 0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
- Shape Of Screw Head Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
- [Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
