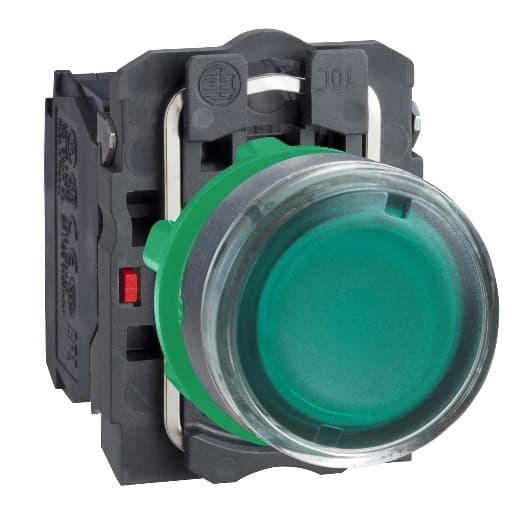

XB5AW3345 Schneider Electric Industrial Automation Components

Product Details

• Bezel Material
  Dark grey plastic
• Operator Profile
  Green flush, unmarked
• Width
  1.18 in (30 mm)
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• Shape Of Signaling Unit Head
  Round
• Depth
  3.98 in (101 mm)
• Tightening Torque
  7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
• Head Type
  Standard
• Contact Operation
  Slow-break
• Net Weight
  0.28 lb(US) (0.129 kg)
• Short-Circuit Protection
  10 A cartridge fuse gG EN/IEC 60947-5-1
• Product Or Component Type
  Illuminated push-button
• Bulb Base
  BA 9s
• [Ui] Rated Insulation Voltage
  600 V 3)EN/IEC 60947-1
• Sale Per Indivisible Quantity
  1
• Contacts Type And Composition
  1 NO + 1 NC
• [Us] Rated Supply Voltage
  220...240 V AC 50/60 Hz
• Positive Opening
  With EN/IEC 60947-5-1 appendix K
• [Uimp] Rated Impulse Withstand Voltage
  6 kV EN/IEC 60947-1
Mounting Diameter
0.87 in (22 mm)
Type Of Operator
spring return
Contacts Material
Silver alloy (Ag/Ni)
Operator Additional Information
With plain lens
Contacts Usage
Standard contacts
Range Of Product
Harmony XB5
Light Source
Incandescent
Mechanical Durability
10000000 cycles
Signalling Type
Steady
Device Short Name
XB5
Light Block Supply
Via integral transformer 1.2 VA 6 V
Height
1.65 in (42 mm)
Device Presentation
Complete product
Fixing Collar Material
Plastic
Cap/Operator Or Lens Colour
Green
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Operating Force
3.5 N NC changing electrical state 3.8 N
Terminals Description ISO N°1
(21-22)NC (13-14)NO
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
