RI-12HA1T-2K2048-H1181 Turck Industrial Automation Components
Part#:RI-12HA1T-2K2048-H1181
Manufacturer:Turck
Category:Industrial Automation Components
Alt. Part#:1545728
Product Lifecycle:Active
Get a quick Quote!

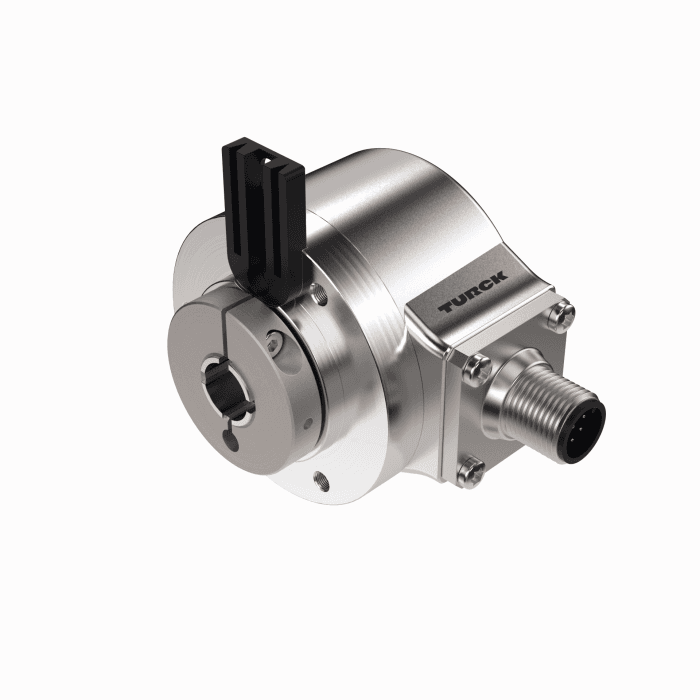

RI-12HA1T-2K2048-H1181 Turck - RI-12HA1T-2K2048-H1181 Incremental Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-12HA1T-2K2048-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- RoHS Yes
- Country Of Origin USA
- HTS Code 9029108000
- Operating Voltage 30 volts
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Protection class shaft IP67
- Protection class IP67
- Ambient temperature -40…+85 °C
- Electrical connection Connector, M12 × 1
- Output function Push-Pull 7272, with inverted signals
- Housing material Die-cast zinc
- Resolution, incremental 2048 ppr
- Flange diameter Ø 50.8 mm
- Operating voltage 5…30 VDC
- Flange type Flange with mounting element
- Shaft diameter D [mm] 9.525 mm
- Technology Optical
- Shaft Type Hollow shaft
- Encoder line Industrial-Line
- Output type Incremental
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-12HA1T-2K2048-H1181 Description
Incremental Encoder, Industrial Line, Resolution, incremental 2048 ppr, Flange with torque stop, Ø 50.8 mm, Hollow shaft, Ø 3/8”, Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 2048 pulses per revolution
Manufacturer warranty
$390.00
Request a quote, and we will send availability within minutes.
Select Qty:
$390.00
$390.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
