RI-12IA4S1-4B1024-H1181/N24 Turck Industrial Automation Components

Name: RI-12IA4S1-4B1024-H1181/N24
Brand: Turck

RI-12IA4S1-4B1024-H1181/N24 on Powermatic Associates

Part#:RI-12IA4S1-4B1024-H1181/N24

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

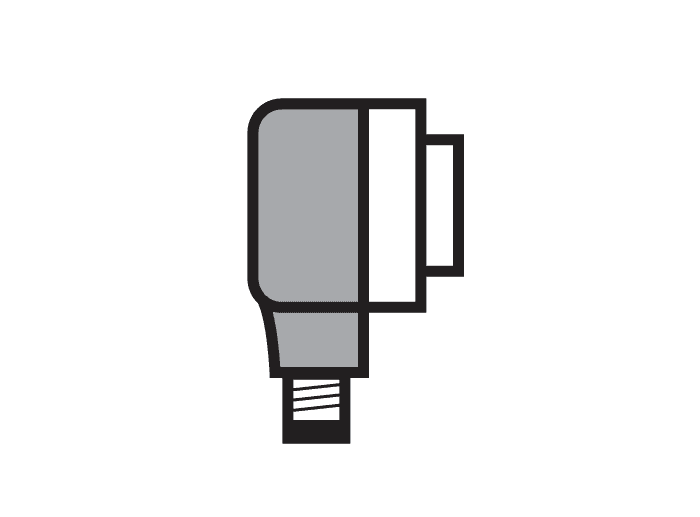

RI-12IA4S1-4B1024-H1181/N24 Turck - RI-12IA4S1-4B1024-H1181/N24 Incremental Hollow Shaft Encoder, Industrial Line

Product Details

Flange type
Flange with mounting element
Electrical connection
Connector, M12 × 1
Technology
Optical
Protection class
IP67
Output function
RS422/TTL, with inverted signals
Operating voltage
5…30 VDC
Protection class shaft
IP65
Encoder line
Industrial-Line
Resolution, incremental
1024 ppr
Shaft Type
Hollow shaft
Ambient temperature
-40…+85 °C
Output type
Incremental
Housing material
Die-cast zinc
Ambient Temperature
-40 degrees celsius, 85 degrees celsius
Operating Voltage
30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Hollow Shaft Encoder, Industrial Line, Resolution, incremental 1024 ppr, Incremental Hollow Shaft Encoder, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
