CL50GXXP Banner Signal Towers
Part#:CL50GXXP
Alt. Part#:10476
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
Column Light: 1-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 160.571568 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Pro-Editor Compatible (Discrete) No
- Cable Length (m) 2
- Product Size (mm) 50
- Max Input Response Time (ms) 10
- Primary Housing Color Black
- Modbus RTU No
- Power DC
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - Tower
- Connection Cable
- NEMA Type and UL Type Rating NEMA and UL 13
- Primary Window Material Polycarbonate Diffused
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Wireless No
- Number of Colors / Segments 1
- Lumens Color 1 72.0
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 114.2
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 100
- Environmental Rating IP67
- Feature: Hazardous Area No
- Indication Yes
- Color Option 1 Green
- Supply Voltage 18-30 V dc
- Feature: Audible No
- Power Source DC
- Color Technology Standard LED
- Input Type PNP
- Feature: Chemical Resistant No
- Feature: Quick Disconnect No
- Primary Housing Material ABS/Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Temperature (°C) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CL50GXXP on Powermatic Associates is $97.00. Order now.
About the product

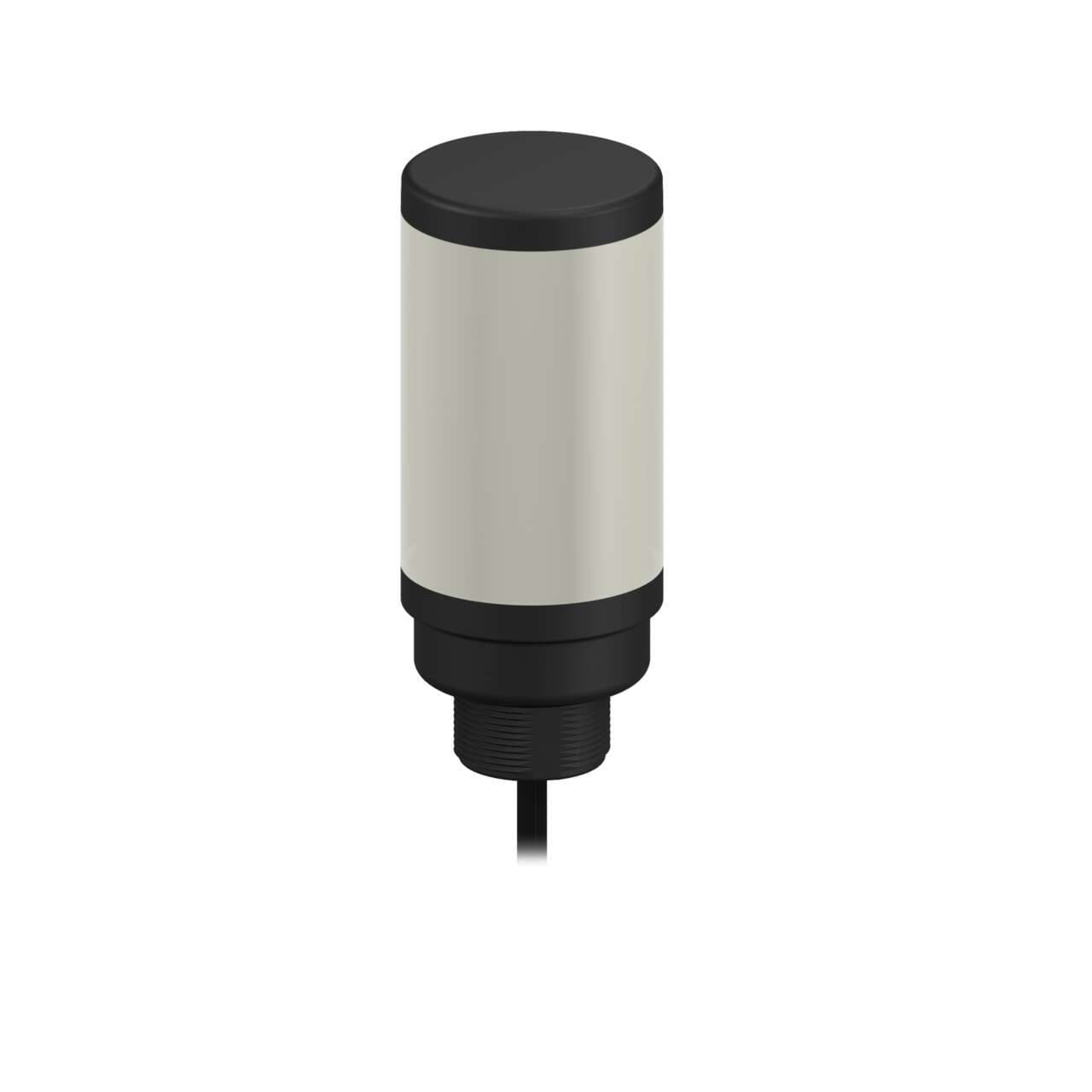

Banner Engineering CL50GXXP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -40°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates a single-tier, green LED illumination, supported by 1 x digital input (18-30Vdc; PNP) for color control. The CL50GXXP is designed with a pre-wired 2m / 6.5ft 4-wire cable terminated with bare end flying leads, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2" with a black housing.
