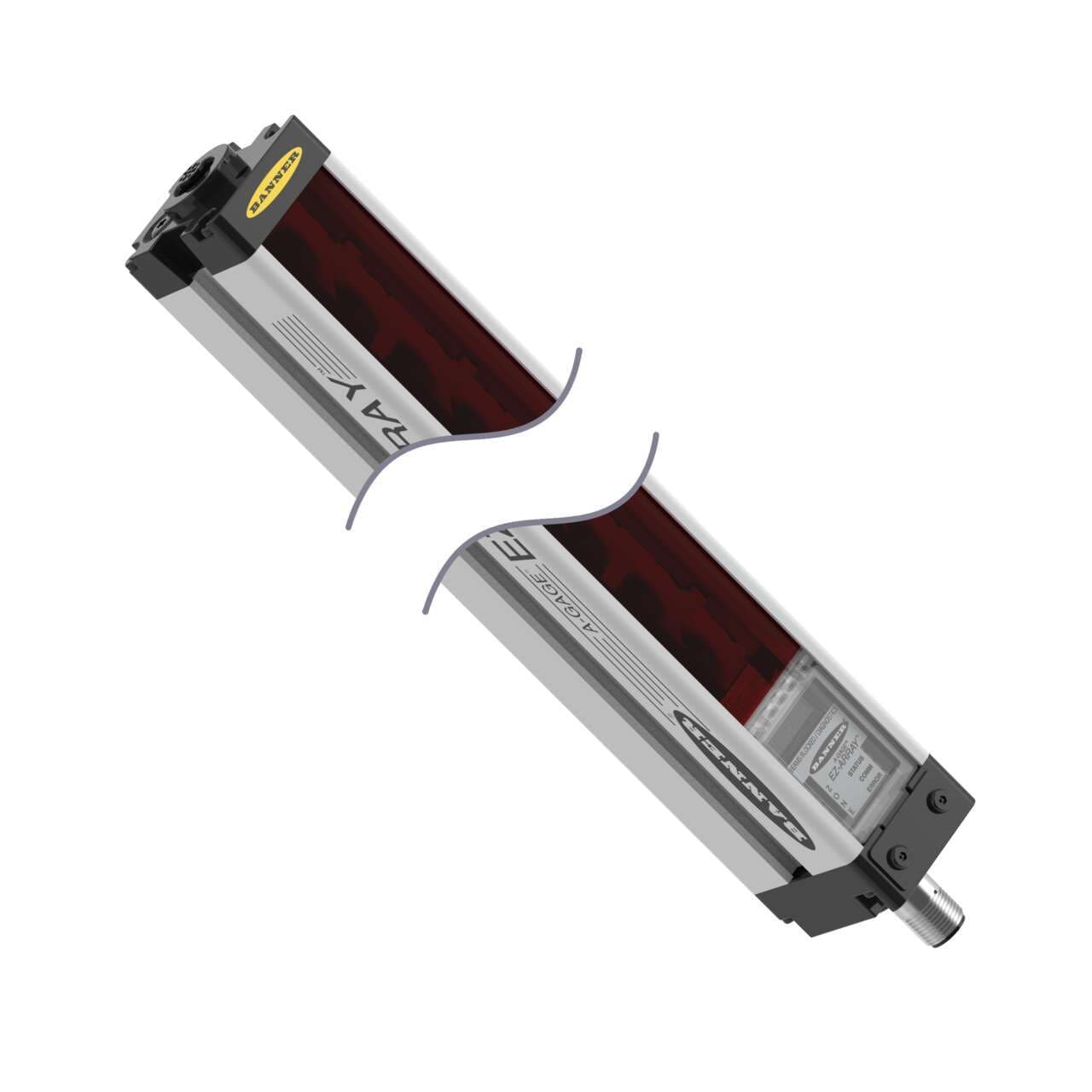

EA5R1050PIXMODQ Banner Measurement Sensors

EA5R1050PIXMODQ on Powermatic Associates
Banner

Part#:EA5R1050PIXMODQ

Alt. Part#:77533

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

EZ-ARRAY Receiver: 1050 mm (41.3 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4; 8-pin M12 Integral QD

Product Details

  • Weight
    526.16672 g
  • Country Of Origin
    MX
  • DeviceNet
    No
  • Number of Beams
    210
  • Max Temp (°C)
    70
  • Power
    DC
  • Device Type
    Two-Piece
  • Minimum Object Sensitivity (mm)
    5-10
  • Array Length (mm)
    1050
  • Sensing Mode (Detailed)
    Receiver
  • RS-485
    Yes
  • Primary Housing Material
    Aluminum
  • Discrete Output
    PNP
  • Beam Spacing
    5 mm
  • Housing Length (mm)
    1128
  • Power Supply
    12-30V dc
  • RS-232
    No
  • IO Link
    No
  • Emitter/Receiver Range (m)
    0.4 - 4
  • Modbus RTU
    Yes
  • Analog Output
    Current (4-20 mA)
  • Max Relative Humidity
    95%
  • Min Temp (°C)
    -40

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R1050PIXMODQ on Powermatic Associates is $1,839.00. Order now.

About the product

Banner Engineering EA5R1050PIXMODQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a measuring light curtain array edge/profile sensor and is specified as the receiver alone. It operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, making it suitable for various industrial environments. The sensor features two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), facilitating versatile connectivity options. With dimensions specifying a 1050mm array length, it can detect objects sized between 5-10mm across a sensing distance of 40cm to 4m. The EA5R1050PIXMODQ achieves a resolution of 5mm within its sensing capabilities and is pre-equipped with an 8-pin Euro-style M12 connector for easy installation. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and communicates via the Modbus RTU RS-485 protocol. The sensor is characterized by 210 beams with a 5mm beam spacing/pitch, ensuring precise detection and measurement.

EA5R1050PIXMODQ Related Documents

126701.pdf
