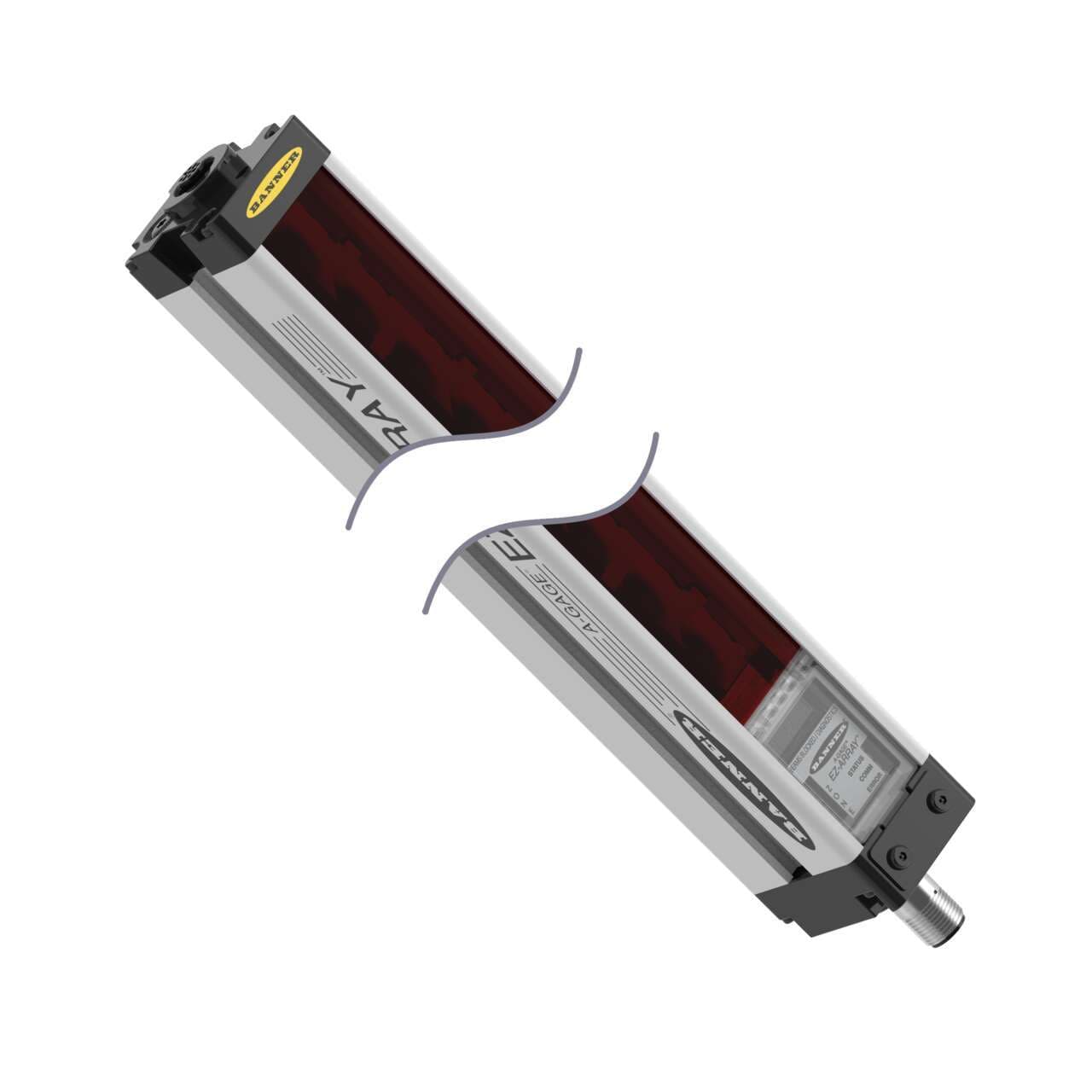

EA5R1050XK2Q Banner Measurement Sensors

Name: EA5R1050XK2Q
Brand: Banner
Price: 1788 USD
Availability: BackOrder

Part#:EA5R1050XK2Q

Alt. Part#:811208

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

EZ-Array Series: Receiver 5 mm Optical Spacing; Range: 4 m; Sensing Length: 1050 mm; Input Voltage 18-30 V; Outputs: IO-Link v1.1/Push-Pull Discrete Output and 2nd PNP Output, Two 0-10 V Analog Outputs; 8-pin Male M12 Integral QD

Product Details

Weight
1360.776 g
Country Of Origin
MX
Power
DC
RS-232
No
Max Relative Humidity
95%
Primary Housing Material
Aluminum
RS-485
No
Emitter/Receiver Range (m)
0.4 - 4
Device Type
Two-Piece
Max Temp (°C)
70
Sensing Mode (Detailed)
Receiver
Min Temp (°C)
-40
Power Supply
12-30V dc
IO Link
Yes
Number of Beams
210
DeviceNet
No
Analog Output
Voltage (0-10 V)
Modbus RTU
No
Array Length (mm)
1050
Discrete Output
PNP / Push-Pull

Beam Spacing

5 mm

Housing Length (mm)

1128

Minimum Object Sensitivity (mm)

5-10

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R1050XK2Q on Powermatic Associates is $1,788.00. Order now.

About the product

EZ-Array Series: Receiver 5 mm Optical Spacing, Range: 4 m; Sensing Length: 1050 mm, Input Voltage 18 To 30 V; Outputs: IO-Link v1.1/Push-Pull Discrete Output and 2nd PNP Output, Two 0-10 V Analog Outputs, Connection: Euro 8-Pin Male M12 Integral QD

EA5R1050XK2Q Related Documents

222507.pdf

$1,788.00
