EA5R2100NUXMODQ Banner Electronic Components

EA5R2100NUXMODQ on Powermatic Associates
Banner

Part#:EA5R2100NUXMODQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

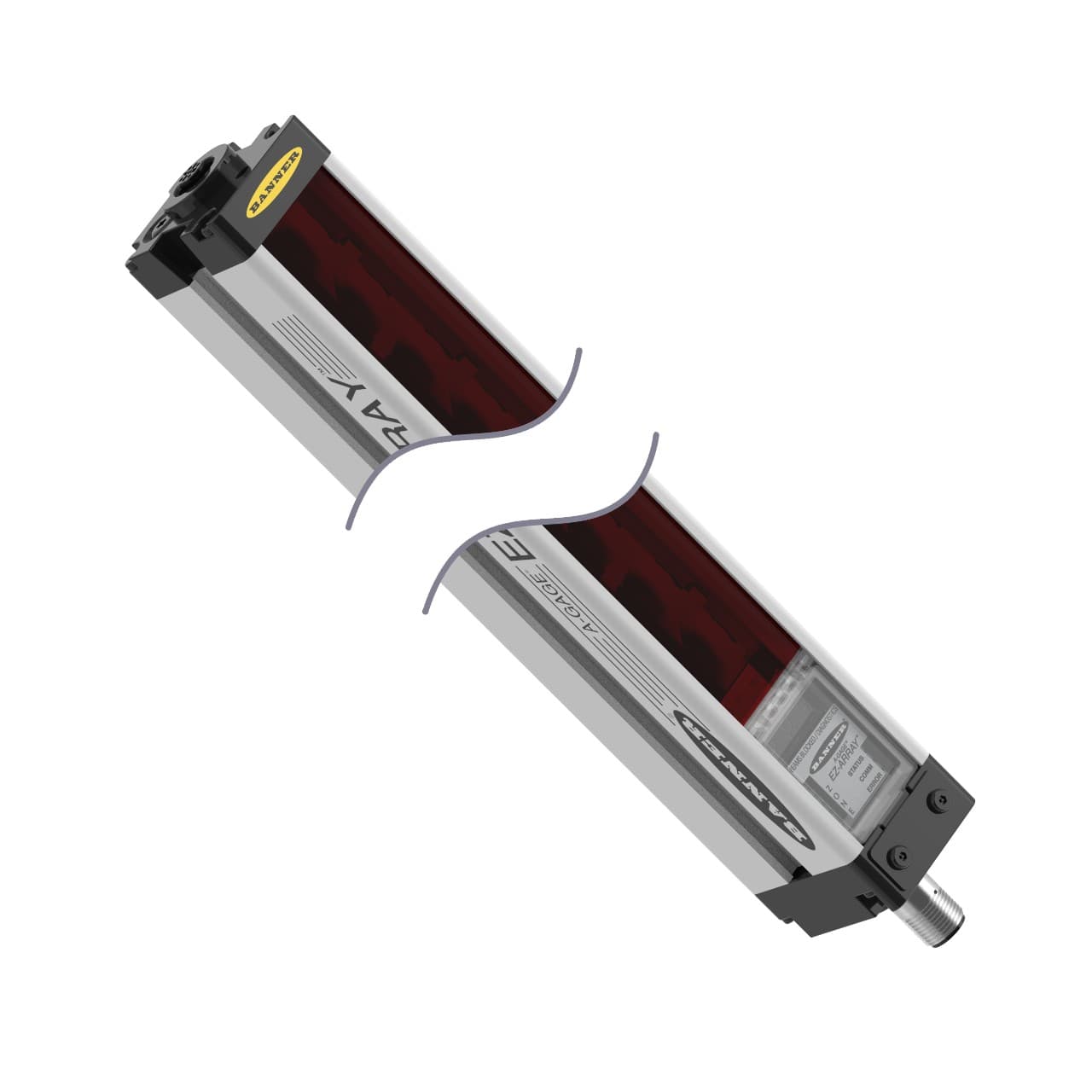

EZ-ARRAY Receiver: 2100mm (82.7 in.), Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc, Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485, Euro 8-pin Quick-Disconnect

Product Details

  • Device Type
    Two-Piece
  • Sensing Mode (Detailed)
    Receiver
  • Housing Length (mm)
    2178
  • Primary Housing Material
    Aluminum
  • Min Temp (°C)
    -40
  • IO Link
    No
  • RS-232
    No
  • RS-485
    Yes
  • Max Temp (°C)
    70
  • Emitter/Receiver Range (m)
    0.4 - 4
  • DeviceNet
    No
  • Modbus RTU
    Yes
  • Power
    DC
  • Array Length (mm)
    2100
  • Minimum Object Sensitivity (mm)
    5-10
  • Discrete Output
    NPN
  • Beam Spacing
    5 mm
  • Analog Output
    Voltage (0-10 V)
  • Max Relative Humidity
    95%
  • Number of Beams
    420
  • Power Supply
    12-30V dc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R2100NUXMODQ Related Documents

EA5R2100Q-1630950189573.pdfEA5R2100Q-1630950189571.stp
