EA5R300PIXMODSRLCQ Banner Measurement Sensors
Part#:EA5R300PIXMODSRLCQ
Alt. Part#:27798
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description

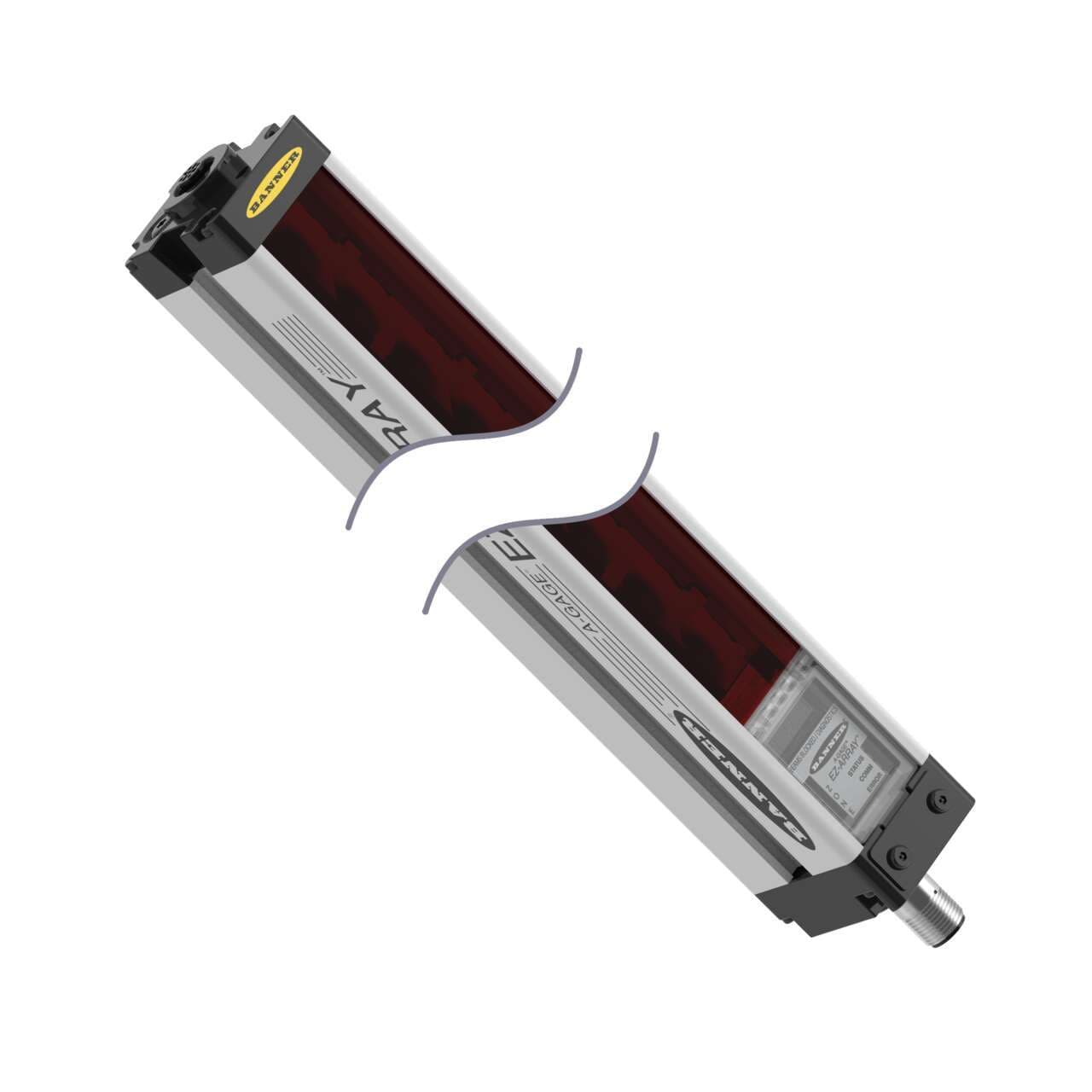

EZ-ARRAY Short Range Receiver: 300 mm (11.8 in); Range: (matching emitter sold separately) 30-1500 mm; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-485; 8-pin M12 Integral QD
Product Details
- Weight 1791.6884 g
- Country Of Origin MX
- Max Relative Humidity 95%
- Power Supply 12-30V dc
- Emitter/Receiver Range (m) 0.3 - 1.5
- Discrete Output PNP
- Minimum Object Sensitivity (mm) 5-10
- Housing Length (mm) 379
- Min Temp (°C) -40
- Max Temp (°C) 70
- Array Length (mm) 300
- Number of Beams 60
- RS-485 Yes
- Analog Output Current (4-20 mA)
- RS-232 No
- Modbus RTU Yes
- IO Link No
- Device Type Two-Piece
- DeviceNet No
- Sensing Mode (Detailed) Receiver
- Low Contrast Yes
- Beam Spacing 5 mm
- Primary Housing Material Aluminum
- Short Range Yes
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R300PIXMODSRLCQ on Powermatic Associates is $979.00. Order now.
About the product
Banner Engineering EA5R300PIXMODSRLCQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a focus on short-range, low-contrast measuring. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It is equipped with a pre-equipped 8-pin Euro-style M12 connector for easy installation. The sensor provides a sensing distance from 30mm to 1.5m and can detect objects sized between 5-10mm with a resolution of 5mm, thanks to its 300mm array length that includes 60 beams with a 5mm beam spacing/pitch. It operates on a supply voltage of 12Vdc to 30Vdc (24Vdc nominal) and supports Modbus RTU RS-485 communication protocol. The EA5R300PIXMODSRLCQ is IP65 rated, indicating a high degree of protection against dust and water ingress, making it suitable for a wide range of industrial applications.
