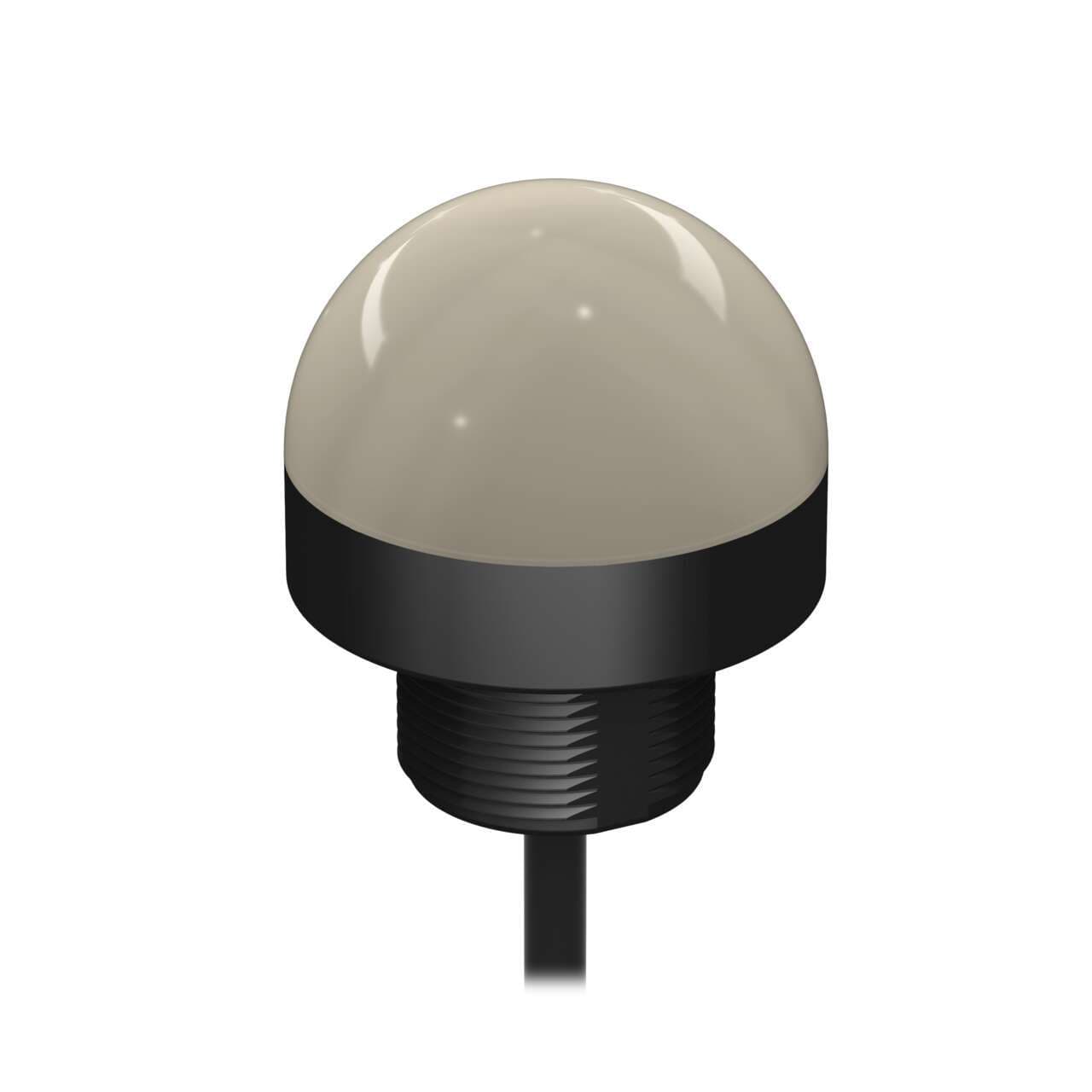

K50LBRXN Banner Pick-to-Light Sensors
Part#:K50LBRXN
Alt. Part#:76857
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: NPN; Colors: Blue Red; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 226.796 g
- Country Of Origin US
- Color Option 1 Blue
- Mounting Thread M30 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Number of Colors / Segments 2
- Supply Voltage 18-30 V dc
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Cable Length (m) 2
- Connection Cable
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Product Size (mm) 50
- Input Type NPN
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect No
- Housing Style Base Mount - Dome Window
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Indication Yes
- Color Option 2 Red
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
- Power DC
- Feature: Audible No
- Wireless No
- Power Source DC
- Max Current Color (mA) 40
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LBRXN on Powermatic Associates is $111.00. Order now.
About the product
Banner Engineering K50LBRXN is a pilot light from the EZ-LIGHT series designed with a 3-color multifunction B/R/Y color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and can be mounted on a surface, base, or pole flush with a 30mm hole using an M30 thread. The dome has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 40mA, and it includes 3 x digital inputs (18-30Vdc; PNP) for color control.
