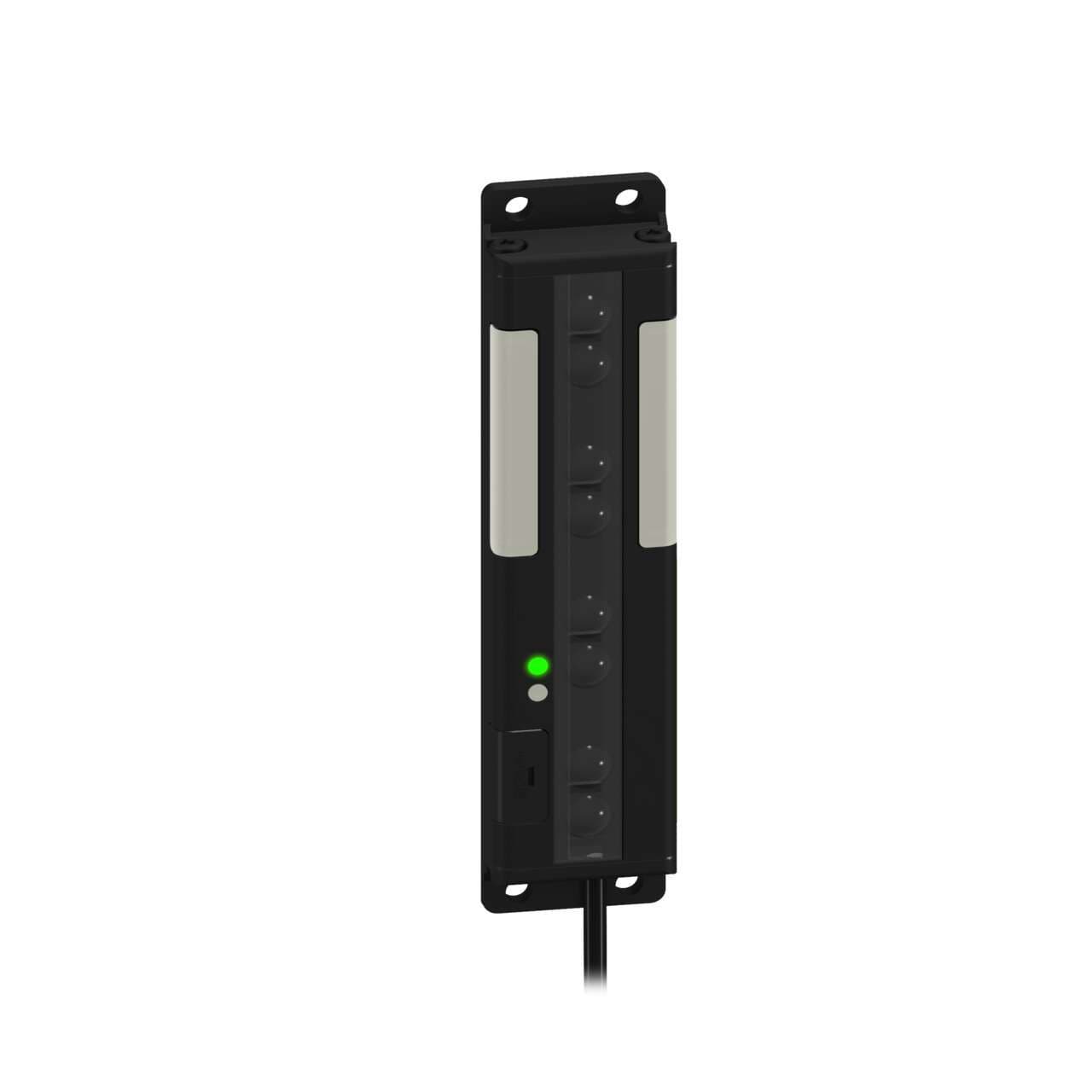

PVD100MA1Q W/6IN Banner Pick-to-Light Sensors
Part#:PVD100MA1Q W/6IN
Alt. Part#:71421
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
PVD Series: Parts Verification; 100 mm 4 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 150 mm (6 in) 5-pin M12 PVC Pigtail QD; Modified for Automotive; See Literature Insert
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Actuation Yes
- Power DC
- Lumens Color 1 12.0
- Input Type Bimodal (PNP/NPN)
- NEMA Type and UL Type Rating NEMA 2
- Job Light Green
- IO Link No
- Sensing Mode (Detailed) Diffuse/Non-Polarized
- Sensing Mode (General) Retroreflective or Proximity
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) Other
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Operation Normally Open/Normally Closed
- Environmental Rating IP62
- Feature: Hazardous Area No
- Housing Style Flat Mount - Array
- Connection Pigtail QD
- Output Type Bipolar (NPN or PNP - user selectable)
- Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
- Button Operation Momentary
- Feature: Audible No
- Number of Colors / Segments 2
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Sensing Array Length (mm) 100
- Primary Window Material Acrylic Clear
- Power Source DC
- Color Option 1 Green
- Max Input Response Time (ms) 400
- Array Length (mm) 100.0
- Primary Housing Color Black
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 88
- Beam Spacing (mm) 28.6
- Feature: Chemical Resistant No
- Activation Function Optical
- Color Option 2 Red
- Mis-Pick Light Red
- Number of Beams 4
- Color Technology Standard LED
- Lumens Color 2 2.5
- Maximum Sensing Distance (mm) 400/2000
- Max Op. Temperature (°C) 50
- Wireless No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Sensing Resolution (mm) 51
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100MA1Q W/6IN on Powermatic Associates is $367.00. Order now.
About the product
Banner Engineering PVD100MA1Q W/6IN is a photo-electric array sensor designed for retro-reflective mode operation. It features a pre-wired 6-inch (150mm) pigtail terminated with a 5-pin M12 connector. This sensor operates within an ambient air temperature of up to +50°C and has a net height of 15mm, a width of 30mm, and a depth of 138mm. The array length is 100mm, and it is housed in aluminium with an acrylic clear window. It offers a sensing distance of 2m (2000mm) and provides light in green and red colors, with wavelengths of 525 nm and 625 nm, respectively. The PVD100MA1Q W/6IN operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and includes 1 x digital output (PNP/NPN transistor). It supports both Normally Open (NO) and Normally Closed (NC) operating modes and is rated with a degree of protection of IP62 NEMA 2.
