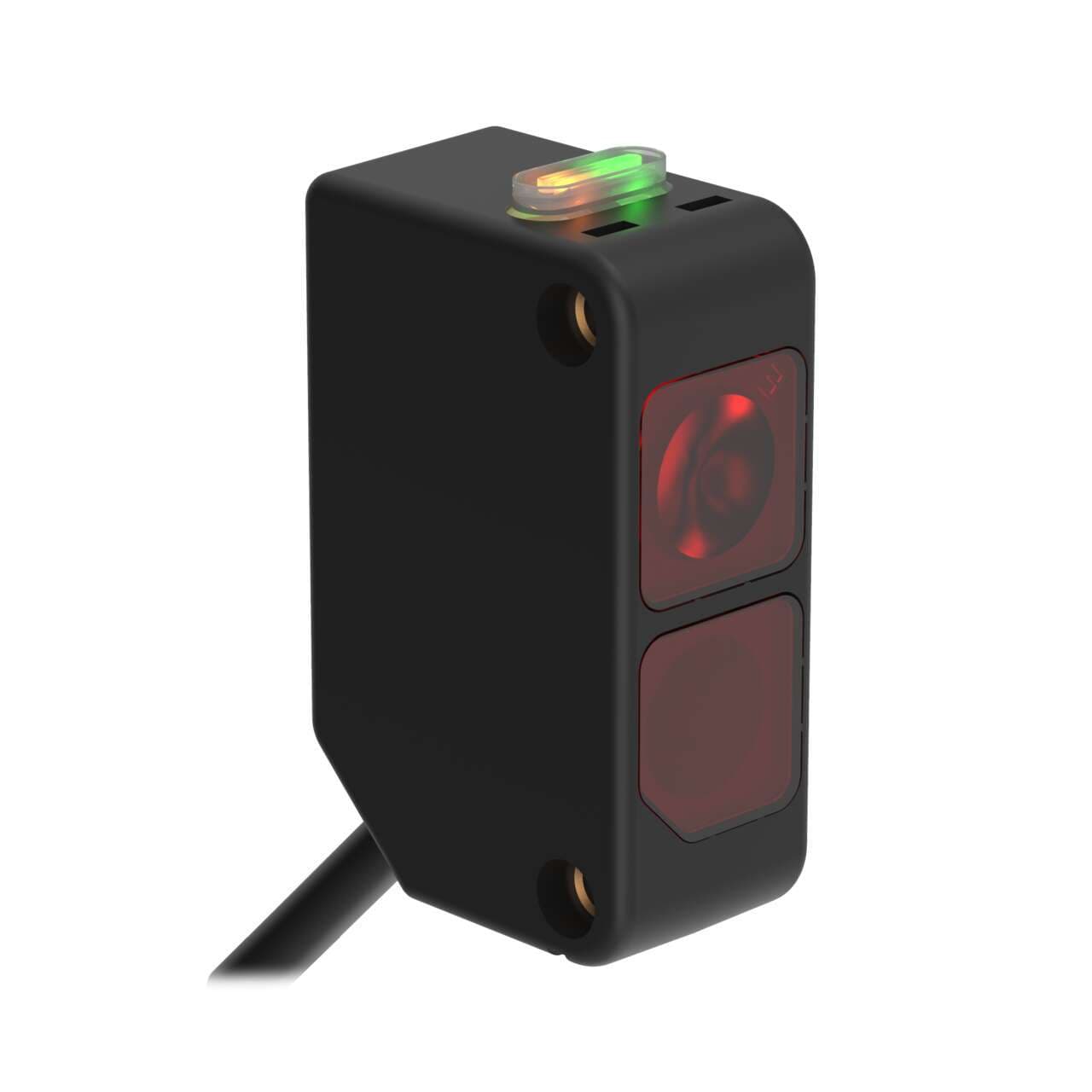

Q20PR W/30 Banner Proximity Sensors
Part#:Q20PR W/30
Alt. Part#:77791
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Receiver (Red); Range: 12 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Max Sensing Distance (mm) 12000
- Max Op. Temp. (°C) 60
- Number of Pins 4
- Opposed Mode Emitter/Receiver Receiver
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Sensing Beam Wavelength 655
- Adjustments N/A
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Sensing Mode (General) Opposed
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- DeviceNet No
- Output response time (ms) 1 ON/0.6 OFF
- IP Rating IP67
- Feature: Hazardous Area No
- Lens Material Acrylic
- IO Link No
- Connection Cable
- Indicator LEDs
- EPLAN Cabinet Installable No
- Repeatability (µs) 140
- Feature: Timing (Hold/Delay) No
- Min Op. Temp. (°C) -20
- Cable Length (m) 9
- Housing Style Rectangular
- Delay at Power-up (ms) 100
- Operation Light/Dark Operate
- Sensing Mode (Detailed) Receiver
- Outputs PNP
- Input/Output Discrete
- Sensing Beam Visible Red LED
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PR W/30 on Powermatic Associates is $104.00. Order now.
About the product
Banner Engineering Q20PR W/30 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component. It operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. This sensor is part of the Q20 series and offers a sensing distance of up to 12 meters with a visible red light of 624 nm wavelength. It features a pre-wired 30ft / 9m cable with bare end flying leads for connection, supporting a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The Q20PR W/30 is equipped with one digital output (PNP transistor) and offers both Light-ON and Dark-ON operating modes. Its response times are quick, with 1ms for ON and 0.6ms for OFF. The device is protected to IP67 NEMA 6 standards, indicating a high degree of protection against dust and water ingress.
