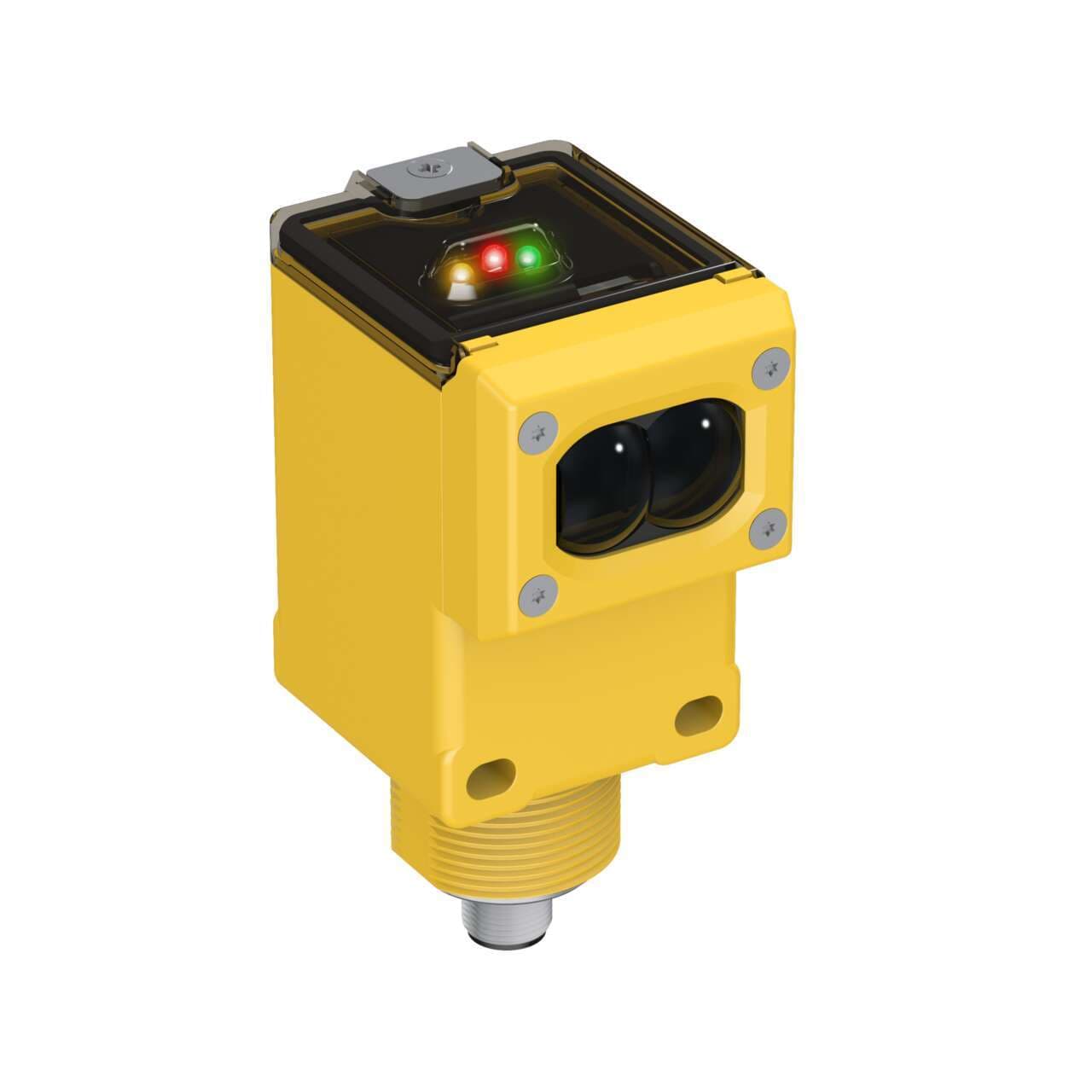

Q45BB6LVQ5 Banner Proximity Sensors

Product Details

• Weight
  254.01152 g
• Country Of Origin
  US
• Primary brand
  Banner Engineering
• Main function
  Sensor (Photo-electric)
• Functions

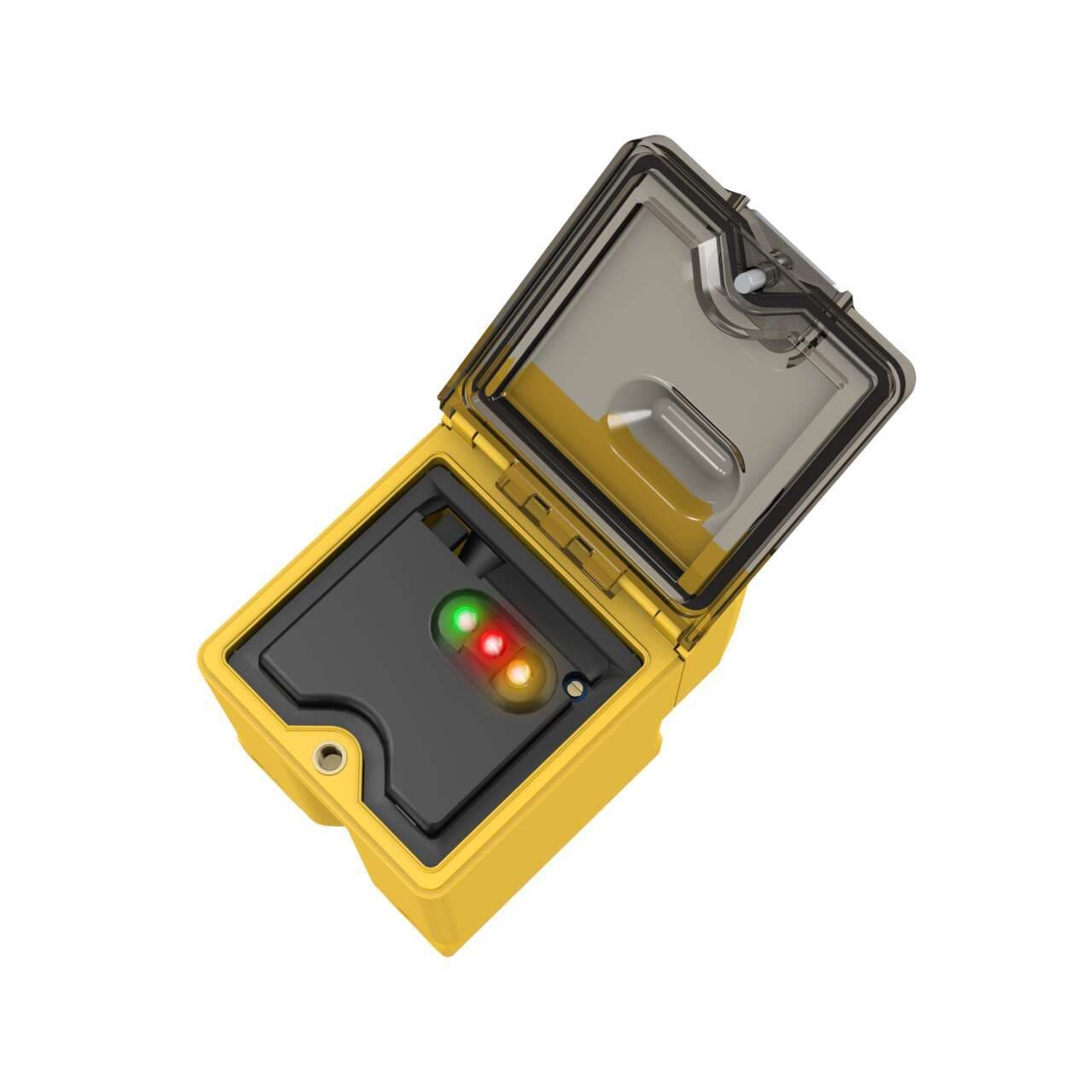

  Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
• Product series / family name
  Q series
• Wavelength
  680 nm
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Compliant with standard(s)
  cURus cCSAus CE
• Sub-range name
  Q45BB6
• Design
  retro-reflective mode
• Operating mode
  Light-ON Dark-ON
• Ambient air temperature for operation
  -40...+70 °C
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  38665
• Light Color
  Visible red
• Thread size
  M30
Material
thermoplastic housing Acrylic lns.
Sensing distance
8cm...9m
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Response time
2ms / 0.002 s
Input/Output
Discrete
Outputs
Bipolar (NPN & PNP)
Max Op. Relative Humidity [%]
90% @ 50°C
DeviceNet
No
Sensing Mode (General)
Retroreflective
Housing Style
Rectangular
Special Feature: Water Detection
No
NEMA Rating
NEMA 6P
Feature: Audible
No
Primary Housing Material
Thermoplastic
Special Feature: Remote Teach
No
Lens Material
Acrylic
Feature: Encapsulated
No
Power Supply/Supply Voltage
10-30 V dc
Operation
Light/Dark Operate
Number of Pins
4
Feature: Hazardous Area
No
Power
DC
Min Op. Temp. (°C)
-40
Sensing Beam Wavelength
680
Barrel Diameter (mm)
30
IO Link
No
Quick Disconnect Type
M12 (Euro)
Delay at Power-up (ms)
100
Output response time (ms)
2
Indicator
LEDs
Connection
Integral QD
Repeatability (µs)
500
Special Feature: Intrinsically Safe
No
Feature: Timing (Hold/Delay)
Yes
Max Sensing Distance (mm)
9000
Max Op. Temp. (°C)
70
IP Rating
IP67
Opposed Mode Emitter/Receiver
N/A
Sensing Beam
Visible Red LED
Sensing Mode (Detailed)
Non-Polarized
Adjustments
Potentiometer
Feature: Chemical Resistant
No
