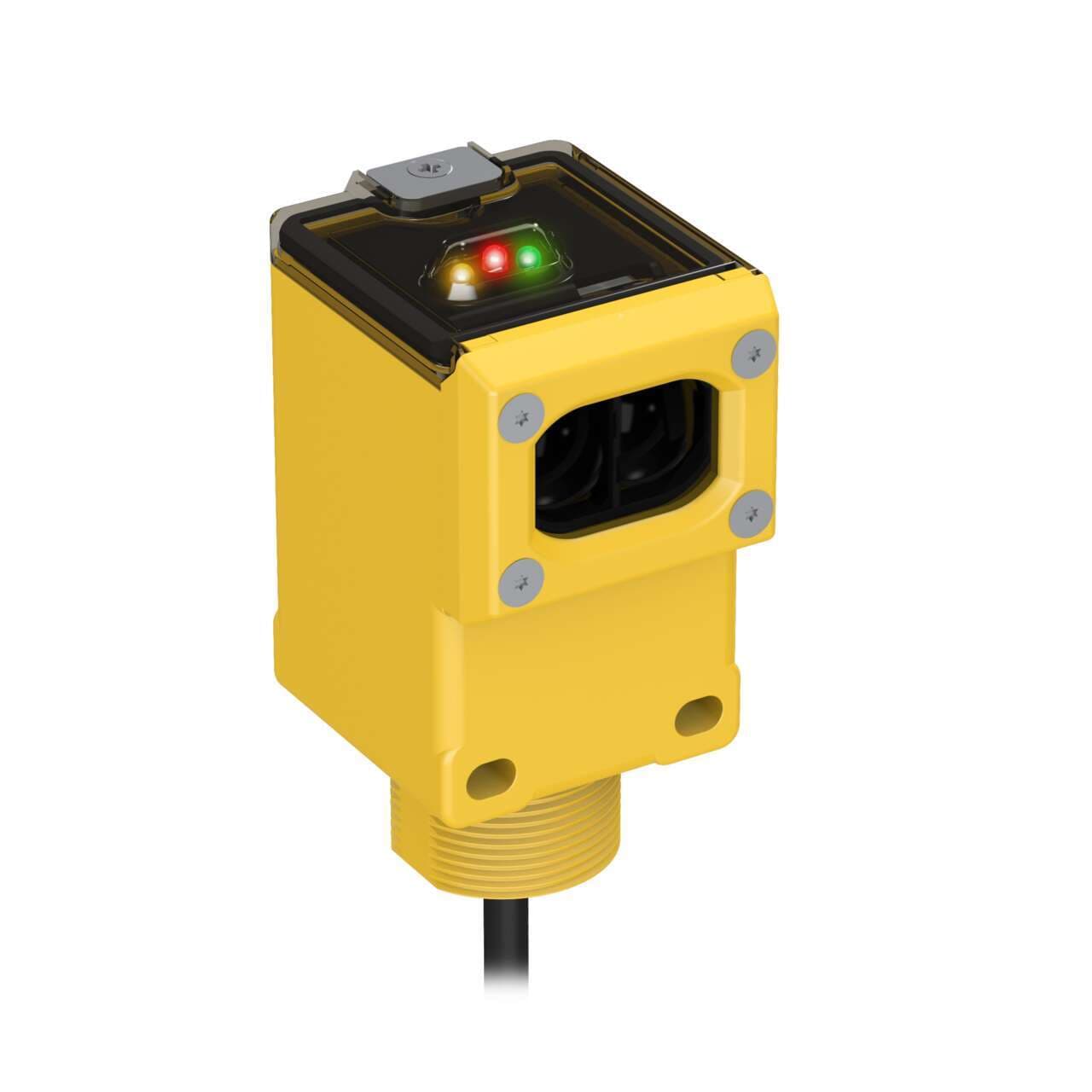

Q45BW13DL Banner Proximity Sensors

Name: Q45BW13DL
Brand: Banner
Price: 177 USD
Availability: BackOrder

Part#:Q45BW13DL

Alt. Part#:53986

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 Series: Diffuse; Range: 1.8 m; Input: 12-250 V dc / 24-250 V ac; Output: SPST Solid-State Relay; 2 m (6.5 ft) Cable

Product Details

Weight
353.80176 g
Country Of Origin
US
Feature: Chemical Resistant
No
DeviceNet
No
IO Link
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
Yes
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Barrel Diameter (mm)
30
Adjustments
Potentiometer
Max Op. Temp. (°C)
55
Output response time (ms)
2
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
IP Rating
IP67
Number of Pins
4

Repeatability (µs)

500

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-25

Quick Disconnect Type

No QD

Connection

Cable

Power Supply/Supply Voltage

12-250 V dc or 24-250 V ac

Outputs

Solid-State AC Switch

Max Sensing Distance (mm)

1800

Input/Output

Solid-State AC Switch

Sensing Mode (Detailed)

Diffuse

Primary Housing Material

Thermoplastic

Housing Style

Rectangular

Sensing Beam

Infrared LED

Sensing Mode (General)

Proximity

Power

AC/DC Universal

Cable Length (m)

Primary brand

Banner Engineering

Supply voltage (AC)

24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Wavelength

880 nm

Thread size

M30

Material

thermoplastic housing Acrylic lns.

Functions

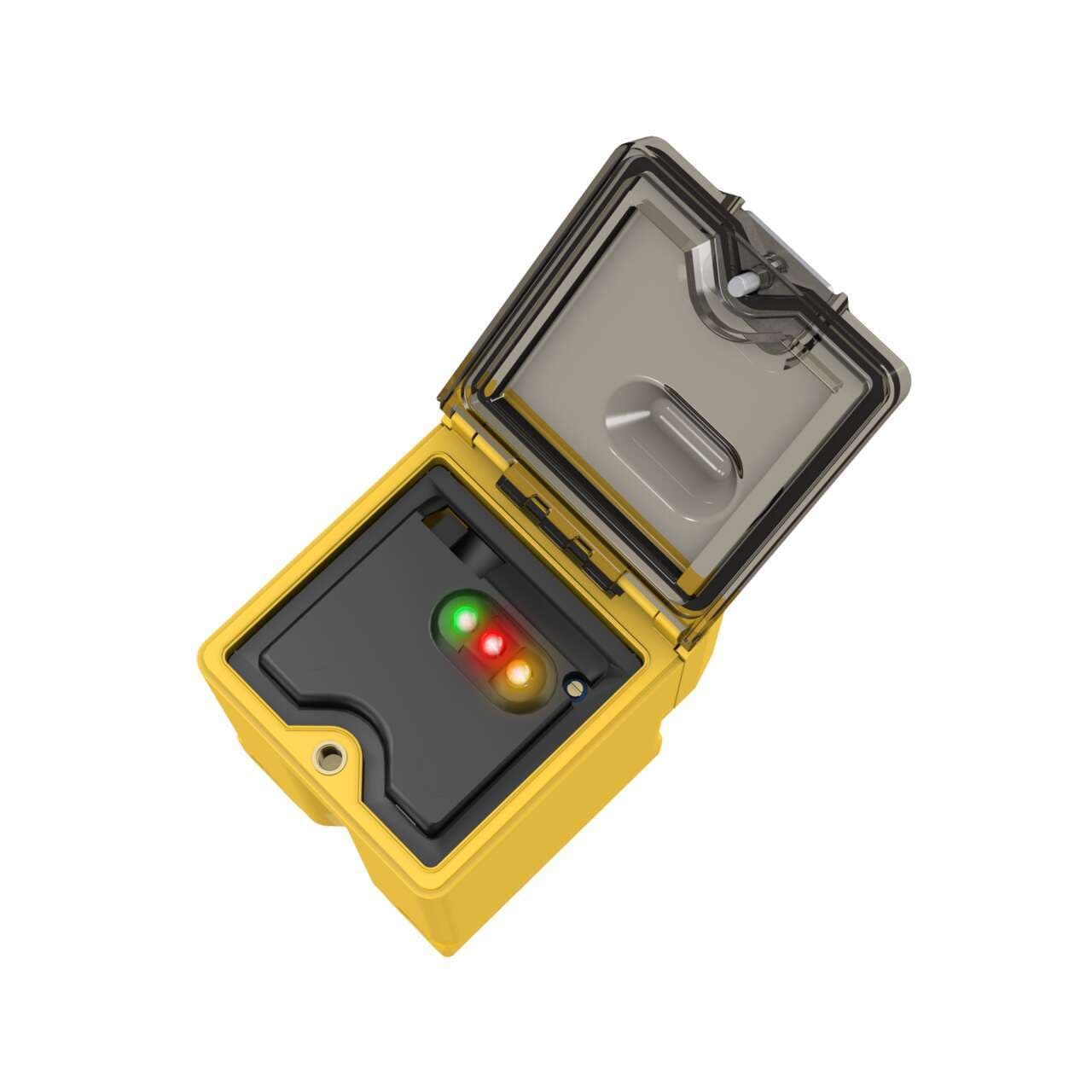

Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment

Sensing distance

1.8m

Shape

Rectangular

Response time

2ms / 0.002 s

Digital outputs

1 x digital output (Solid-state AC output; SPST contact type)

Main function

Sensor (Photo-electric)

Sub-range name

Q45BW13

Light Color

Infrared (IR)

Mounting mode

Threaded mount

Degree of protection

IP67 NEMA 6P

Ambient air temperature for operation

-25...+55 °C

Product series / family name

Q series

Design

diffuse mode

Operating mode

Light-ON Dark-ON

Order code / Manufacturer SKU

53986

Supply voltage (DC)

12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Compliant with standard(s)

cURus CCC cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BW13DL on Powermatic Associates is $177.00. Order now.

About the product

Banner Engineering Q45BW13DL is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. This sensor is equipped with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +55°C. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. The Q45BW13DL operates on a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it adaptable to various power supplies. It belongs to the Q45BW13 series and is protected by an IP67 NEMA 6P rated thermoplastic housing with an acrylic lens, ensuring durability in challenging environments. The sensor has a rectangular shape and can detect objects up to 1.8m away using infrared light with a wavelength of 880 nm. It offers flexible operating modes, including Light-ON and Dark-ON, and provides quick response times of 2ms / 0.002 s. The device includes 1 x digital output (Solid-state AC output; SPST contact type) for efficient signal processing.
