Q45BW13DLQ Banner Proximity Sensors
Part#:Q45BW13DLQ
Alt. Part#:54320
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Diffuse; Range: 1.8 m; Input: 12-250 V dc / 24-250 V ac; Output: SPST Solid-State Relay; 4-pin Mini Integral QD
Product Details
- Weight 272.1552 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Product series / family name Q series
- Sensing distance 1.8m
- Operating mode Light-ON Dark-ON
- Primary brand Banner Engineering

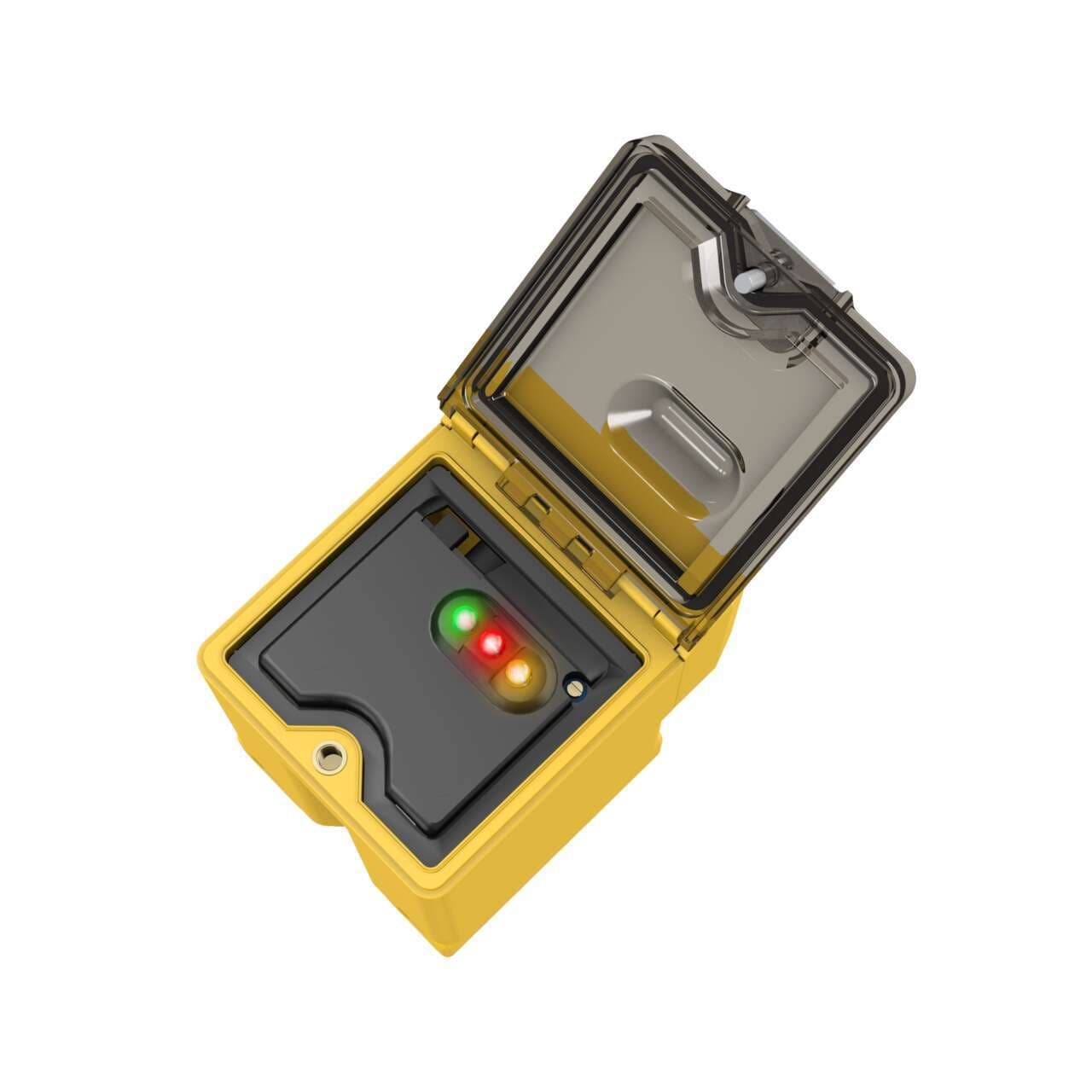

- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Thread size M30
- Order code / Manufacturer SKU 54320
- Sub-range name Q45BW13
- Design diffuse mode
- Wavelength 880 nm
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cURus CCC cCSAus CE
- Supply voltage (DC) 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Supply voltage (AC) 24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Rectangular
- Connection type Pre-equipped with 4-pin 7/8" Mini connector
- Response time 2ms / 0.002 s
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -25...+55 °C
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Max Sensing Distance (mm) 1800
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Sensing Beam Infrared LED
- Quick Disconnect Type 7/8 in. (Mini)
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Mode (General) Proximity
- Number of Pins 4
- Min Op. Temp. (°C) -25
- Feature: Hazardous Area No
- Housing Style Rectangular
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) Yes
- Input/Output Solid-State AC Switch
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 30
- IO Link No
- Sensing Mode (Detailed) Diffuse
- Max Op. Temp. (°C) 55
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs Solid-State AC Switch
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Power AC/DC Universal
- Connection Integral QD
- Repeatability (µs) 500
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Output response time (ms) 2
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- Special Feature: Remote Teach No
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BW13DLQ on Powermatic Associates is $177.00. Order now.
About the product

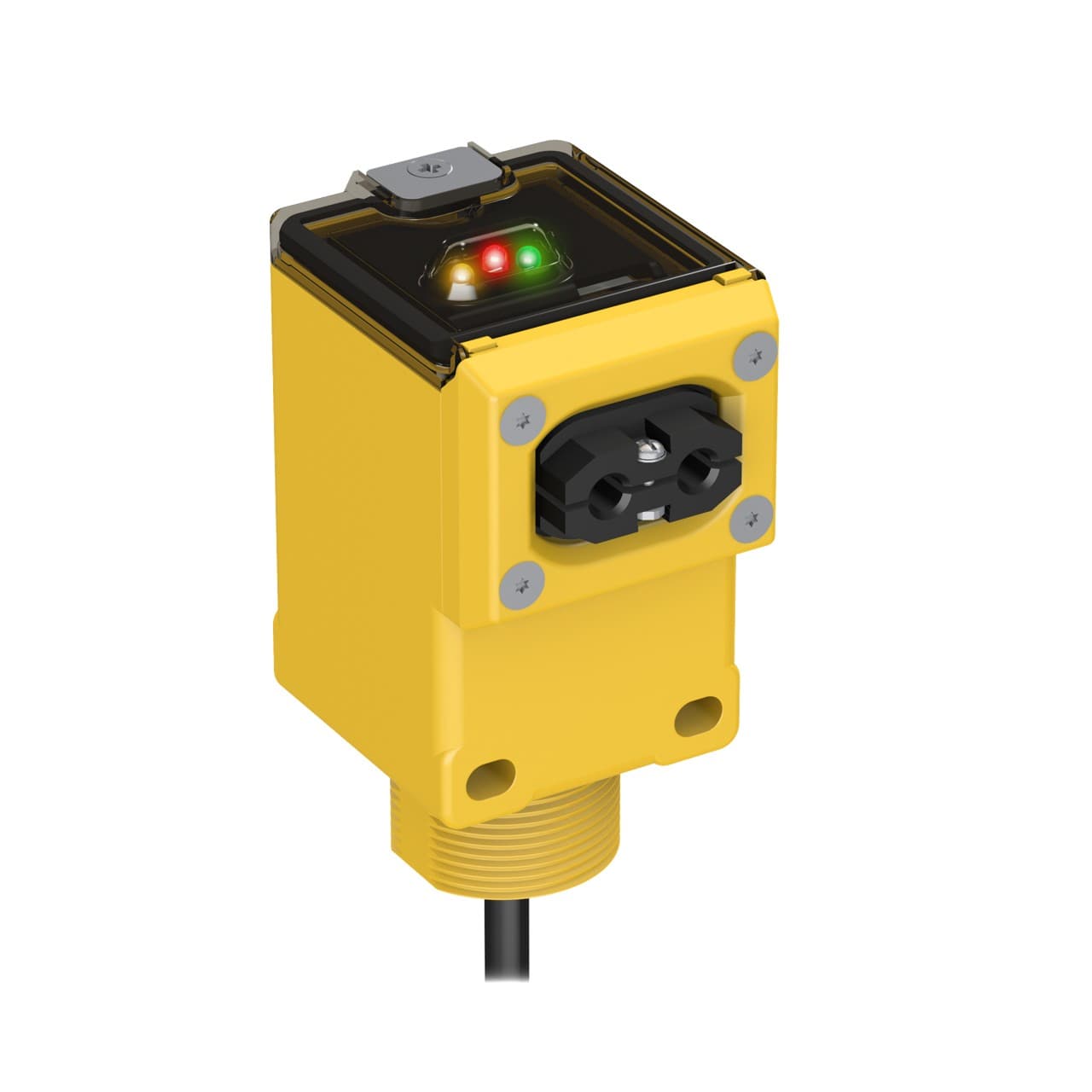

Banner Engineering Q45BW13DLQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes in a rectangular shape with an M30 threaded mount for easy installation. The sensor operates within an ambient air temperature range of -25 to +55°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It offers a sensing distance of up to 1.8m and utilizes infrared light with a wavelength of 880 nm. This model is equipped with a 4-pin 7/8" mini connector for connectivity and supports both AC and DC supply voltages, ranging from 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal), respectively. It features a single digital output (Solid-state AC output; SPST contact type) and boasts a quick response time of 2ms / 0.002 s. The Q45BW13DLQ operates in both Light-ON and Dark-ON modes and is protected to IP67 NEMA 6P standards, making it suitable for a wide range of industrial environments.
