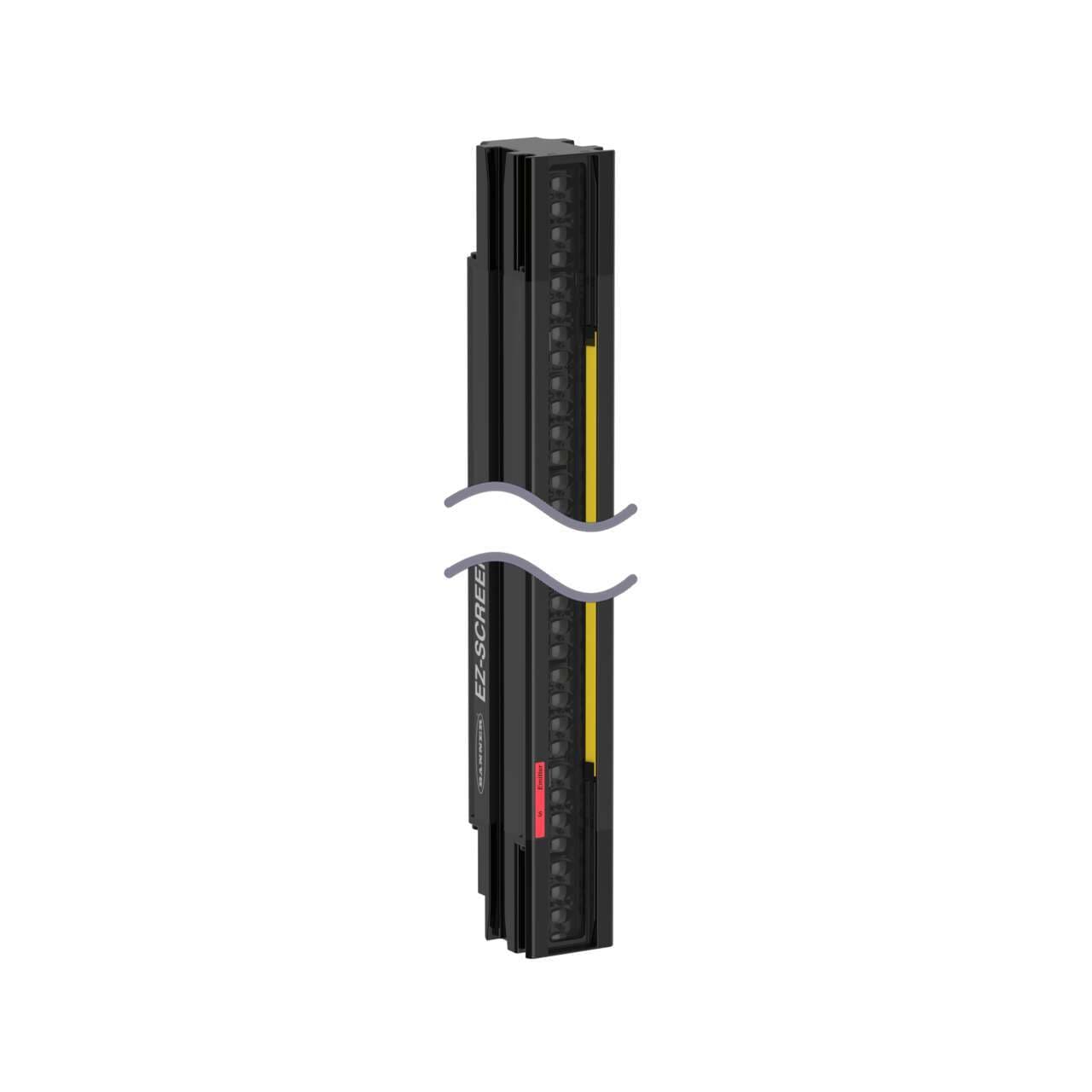

SLLE40-1190-S Banner Safety Light Curtains
Part#:SLLE40-1190-S
Alt. Part#:809075
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS, Emitter; Resolution: 40 mm; Range: 12 m (40 ft); Defined Area: 1190 mm (46.9 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 2616.409374 g
- Country Of Origin MX
- Operating Temperature -20 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Recovery Time 49 / 168
- PL Rating Ple
- Resolution (mm) 40
- Reduced Resolution No
- SIL Rating SIL3; CL3
- Primary Housing Material Aluminum
- Connector Type Removable Disconnect
- Safety Level Type 4
- Electrical Safety Class III
- Scan Code Selectable
- Shock 10g at 16ms (6000 cycles)
- System Type Emitter
- Short Protection Yes
- Vibration 10-55 Hz at 0.35 mm
- Auxiliary Output No
- Fault Output Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Overall Length (mm) 1193
- Defined Area Height (mm) 1190
- Housing Finish Yellow Polyester
- Dimensions WxD (mm) 36 x 45
- External Monitoring Device No
- IP Rating IP65; IP67
- Fixed Blanking No
- Operating Distance (m) 0.1 - 12
- OSSD Rating N/A
- Supply Current 26 mA Typical
- Feature: Integral Muting No
- Feature: ESD Safe No
- Test Input No
- Feature: End-to-End Sensing Yes
- Housing Material Aluminum; Zinc; Acrylic
- Trip/Latch Output N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLE40-1190-S on Powermatic Associates is $1,210.00. Order now.
About the product
Banner Engineering SLLE40-1190-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed specifically as an emitter alone. It features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. This model comes with an Integral Removable Disconnect (RD) connection type and is characterized by a protective height of 1190mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. The net dimensions are 36mm in width, 1193mm in height, and 45mm in depth, with a 40mm beam spacing/pitch for arm detection. It includes 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. The sensing distance ranges from 10cm to 12m, and it has a response time of 12ms / 0.012 s, with a resolution of 40mm.
SLLE40-1190-S Related Documents
