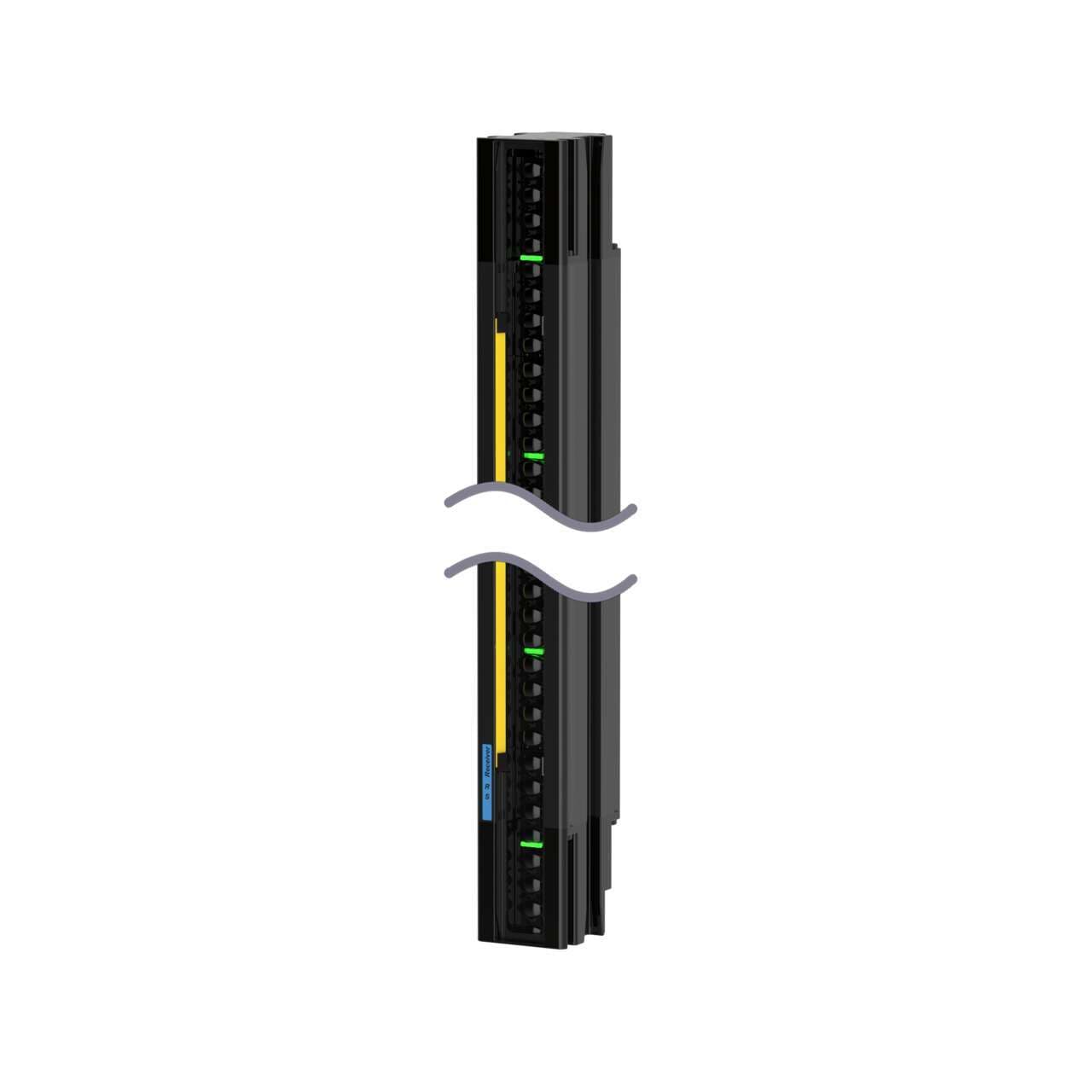

SLLR23-1050-S Banner Safety Light Curtains
Part#:SLLR23-1050-S
Alt. Part#:809050
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS, Receiver; Resolution: 23 mm; Range: 12 m (40 ft); Defined Area: 1050 mm (41.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 2267.96 g
- Country Of Origin MX
- Dimensions WxD (mm) 36 x 45
- Reduced Resolution No
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing Yes
- Trip/Latch Output Trip
- Overall Length (mm) 1053
- Recovery Time 74 / 249
- System Type Receiver
- Defined Area Height (mm) 1050
- IP Rating IP65; IP67
- Auxiliary Output No
- OSSD Rating 24 V dc at 0.5 A each
- Short Protection Yes
- Housing Material Aluminum; Zinc; Acrylic
- Safety Level Type 4
- Operating Temperature -20 to +55 deg. C; RH 95%
- Primary Housing Material Aluminum
- Resolution (mm) 23
- Fault Output Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- External Monitoring Device 1 Channel
- Operating Voltage 24 V dc +/- 15%
- SIL Rating SIL3; CL3
- Supply Current 93 mA Typical
- Fixed Blanking No
- Housing Finish Yellow Polyester
- Electrical Safety Class III
- Feature: ESD Safe No
- Connector Type Removable Disconnect
- Operating Distance (m) 0.1 - 12
- Scan Code Selectable
- Test Input No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLR23-1050-S on Powermatic Associates is $1,412.00. Order now.
About the product
Banner Engineering SLLR23-1050-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed for hand detection with a resolution of 23mm. This unit, serving as the receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, featuring a yellow housing color. It offers an integral removable disconnect (RD) connection type and operates on a 24Vdc supply voltage. The SLLR23-1050-S has a protective height of 1050mm and is designed to function within an ambient air temperature range of -20 to +55°C. It is protected against ingress to IP65 and IP67 standards, ensuring durability in various environmental conditions. The device has a net width of 36mm, a height of 1053mm, and a depth of 45mm, with a 23mm beam spacing/pitch. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and boasts a sensing distance of 10cm to 12m, with a response time of 17.5ms.
