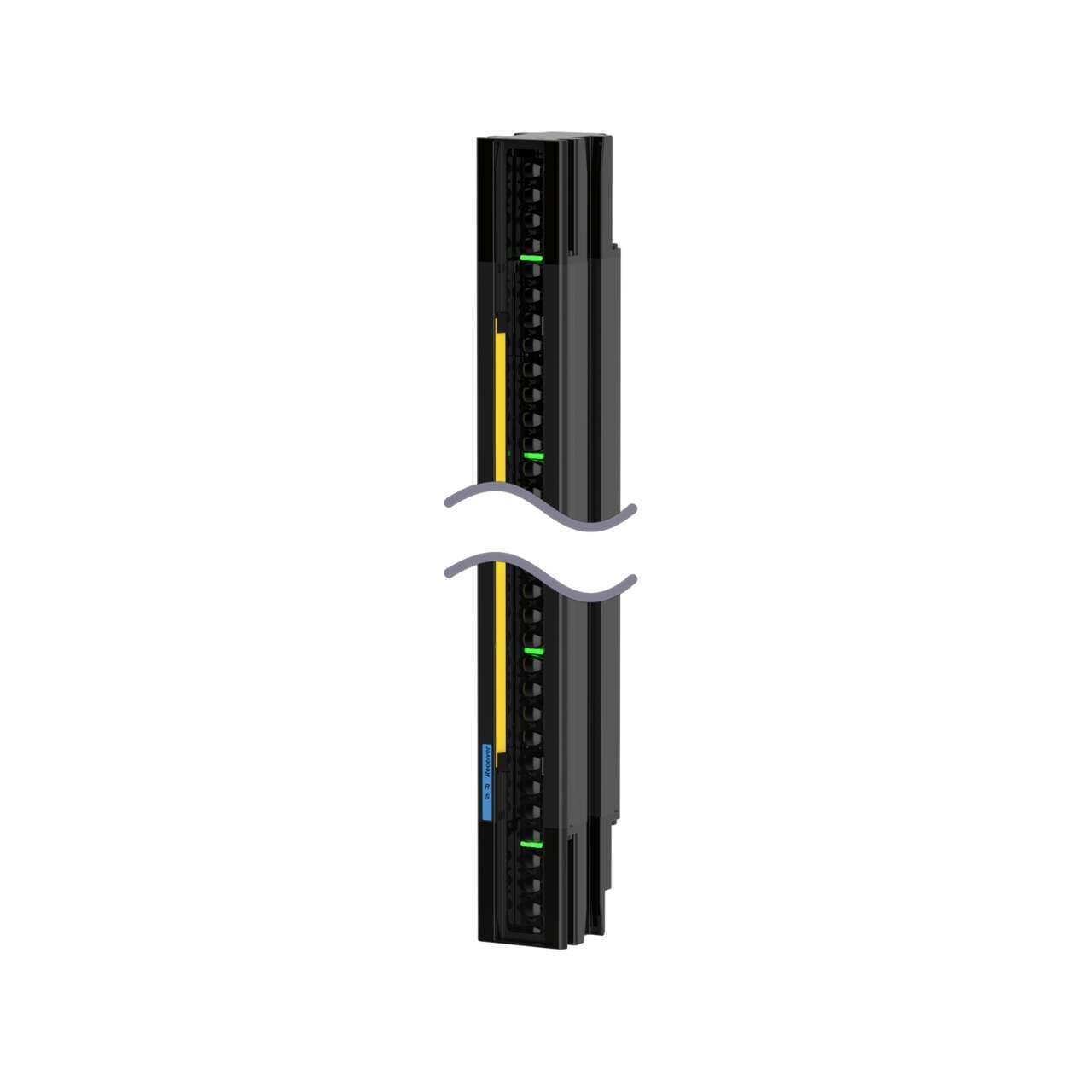

SLLR40-1190-S Banner Safety Light Curtains

Banner Engineering SLLR40-1190-S is a safety light curtain from the LS-S series type 4 safety light curtains designed for arm detection with a resolution of 40mm. This unit, serving as the receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It features an integral removable disconnect (RD) for its connection type. The dimensions include a protective height of 1190mm, a net width of 36mm, a net height of 1193mm, and a net depth of 45mm, all in a distinctive yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLR40-1190-S offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. It has a sensing distance range from 10cm to 12m and utilizes infrared light with a wavelength of 850 nm for detection. The response time is quick at 12ms. For outputs, it is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output, all designed to enhance safety measures in automated environments.
