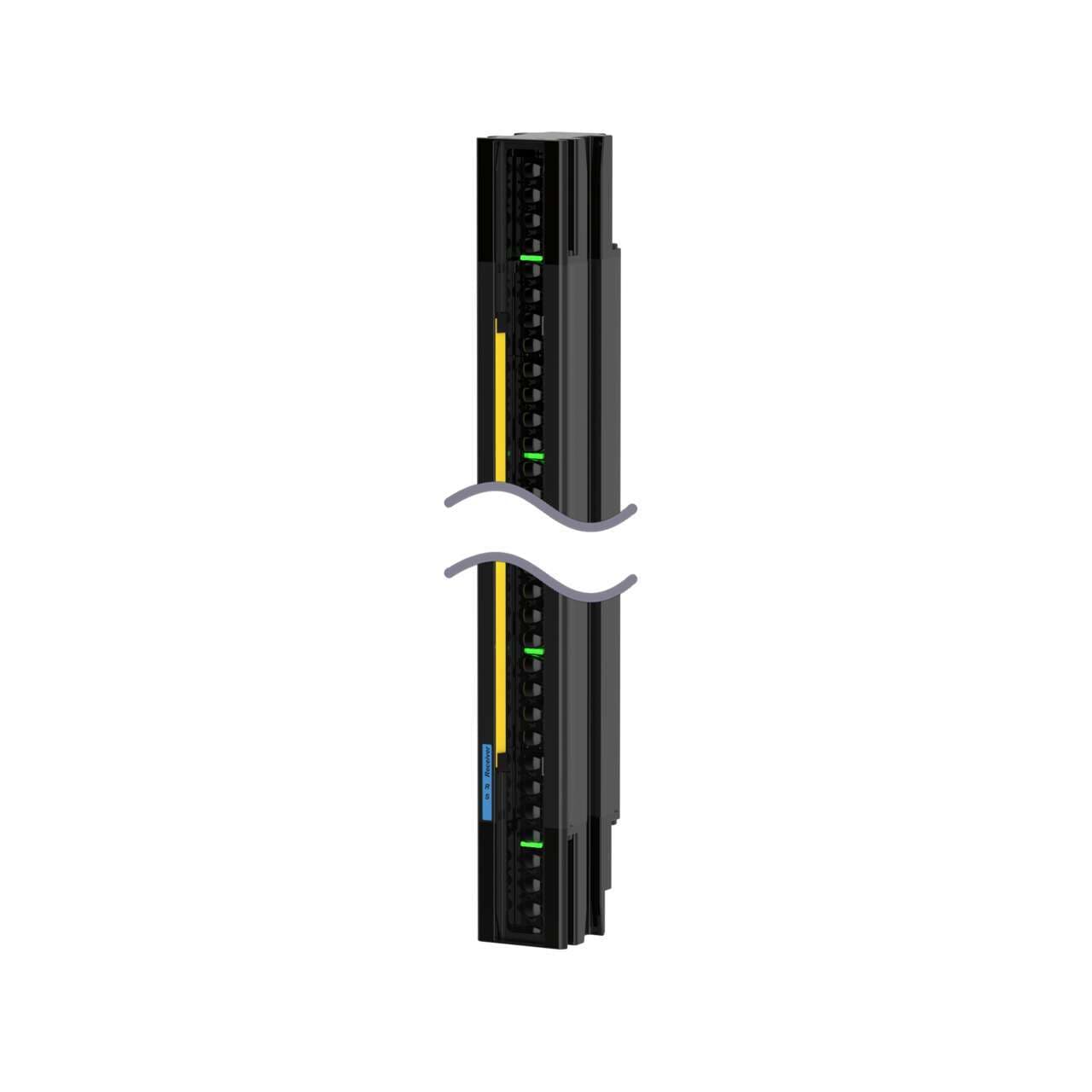

SLLR40-490-S Banner Safety Light Curtains
Part#:SLLR40-490-S
Alt. Part#:808956
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS, Receiver; Resolution: 40 mm; Range: 12 m (40 ft); Defined Area: 490 mm (19.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Product Details
- Weight 1360.776 g
- Country Of Origin MX
- Recovery Time 32 / 110
- Short Protection Yes
- Defined Area Height (mm) 490
- Test Input No
- Feature: End-to-End Sensing Yes
- Safety Level Type 4
- Operating Temperature -20 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- External Monitoring Device 1 Channel
- Operating Distance (m) 0.1 - 12
- Auxiliary Output No
- Supply Current 76 mA Typical
- Primary Housing Material Aluminum
- Resolution (mm) 40
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Connector Type Removable Disconnect
- Feature: Integral Muting No
- PL Rating Ple
- Electrical Safety Class III
- Dimensions WxD (mm) 36 x 45
- Housing Finish Yellow Polyester
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Fault Output Yes
- Fixed Blanking No
- Overall Length (mm) 495
- System Type Receiver
- Trip/Latch Output Trip
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Voltage 24 V dc +/- 15%
- Housing Material Aluminum; Zinc; Acrylic
- Reduced Resolution No
- IP Rating IP65; IP67
- SIL Rating SIL3; CL3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLR40-490-S on Powermatic Associates is $739.00. Order now.
About the product
Banner Engineering SLLR40-490-S is a safety light curtain from the LS-S series type 4 safety light curtains designed for arm detection with a resolution of 40mm. This part, functioning as a receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It features an integral removable disconnect (RD) for its connection type. The protective height of this unit is 490mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLR40-490-S is designed to offer a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. Its dimensions are 36mm in width, 495mm in height, and 45mm in depth. The safety light curtain provides a sensing distance between 10cm and 12m and utilizes infrared (IR) light with a wavelength of 850 nm for detection. It has a quick response time of 8.2ms. Additionally, it is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output.
