Part#:SLPE14-690N

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

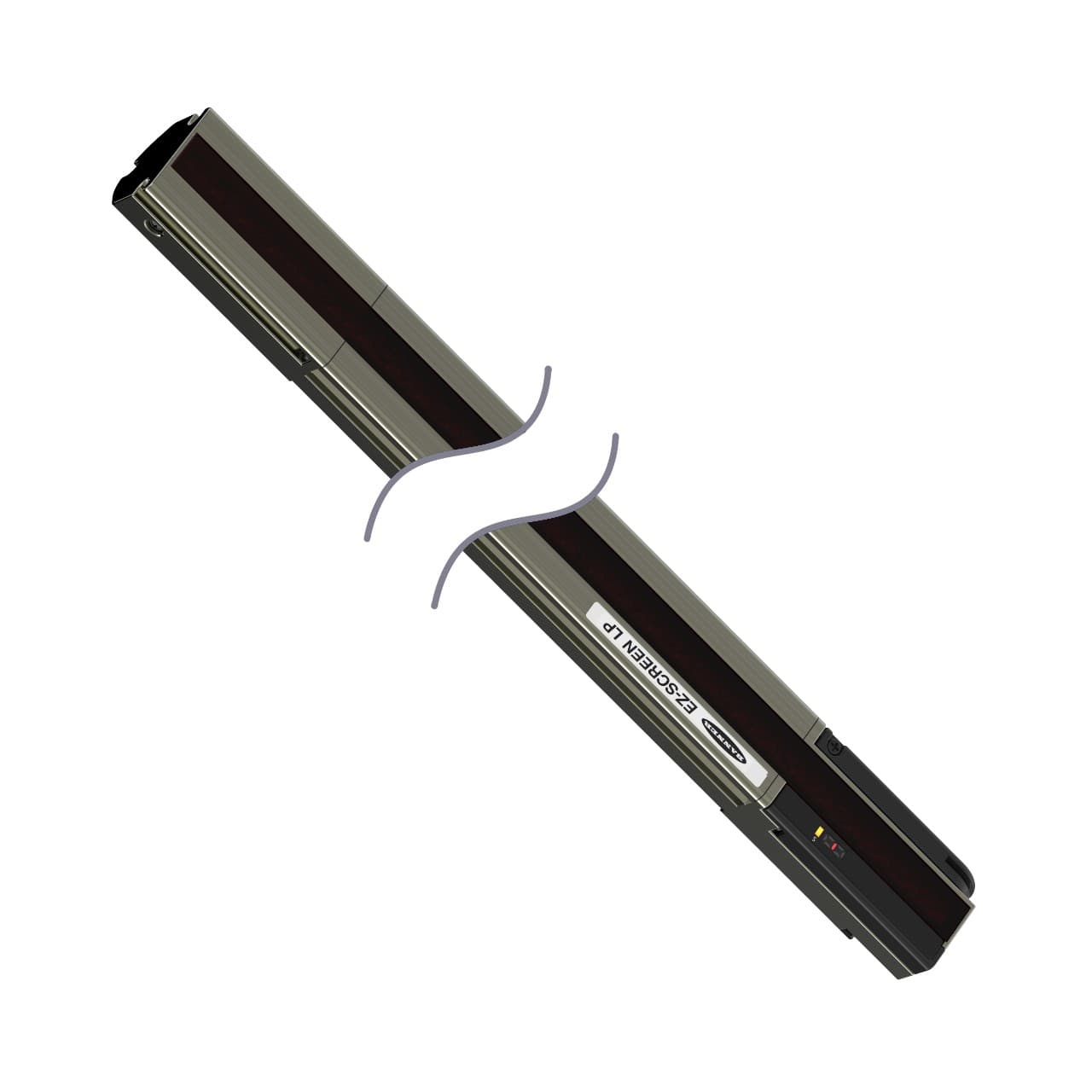

SLPE14-690N EZS LP EMTR 14mm X 690mm

Product Details

  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Operating Distance (m)
    0.1 - 7
  • Shock
    10g at 16ms (6000 cycles)
  • Test Input
    Yes
  • Safety Level
    Type 4
  • Fixed Blanking
    No
  • Reduced Resolution
    Yes
  • Auxiliary Output
    No
  • Feature: ESD Safe
    Yes
  • Overall Length (mm)
    690
  • Recovery Time
    33-220 / 109-800
  • Vibration
    10-55 Hz at 0.35 mm
  • Feature: Integral Muting
    No
  • low-profile
    Yes
  • Operating Voltage
    24 V dc +/- 15%
  • Short Protection
    Yes
  • Feature: End-to-End Sensing
    Yes
  • Primary Housing Material
    Aluminum
  • PL Rating
    Ple
  • System Type
    Emitter
  • Trip/Latch Output
    N/A
  • Connector Type
    Removable Disconnect
  • IP Rating
    IP65
  • SIL Rating
    SIL3; CL3
  • Supply Current
    60 mA max.
  • Dimensions WxD (mm)
    28 x 26
  • Resolution (mm)
    14
  • Electrical Safety Class
    III
  • OSSD Rating
    N/A
  • External Monitoring Device
    No
  • Housing Finish
    Nickel Plated
  • Response Time
    19.5
  • Fault Output
    Yes
  • Defined Area Height (mm)
    690
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Scan Code
    Selectable
  • Housing Material
    Aluminum; Zinc; Acrylic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPE14-690N Related Documents

EZ-SCREEN LP, SLP.... 690mm-1630955684659.pdfEZ-SCREEN LP, SLP.... 690mm-1630955684658.stp
