SLPE25-1250N Banner Electronic Components
Part#:SLPE25-1250N
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

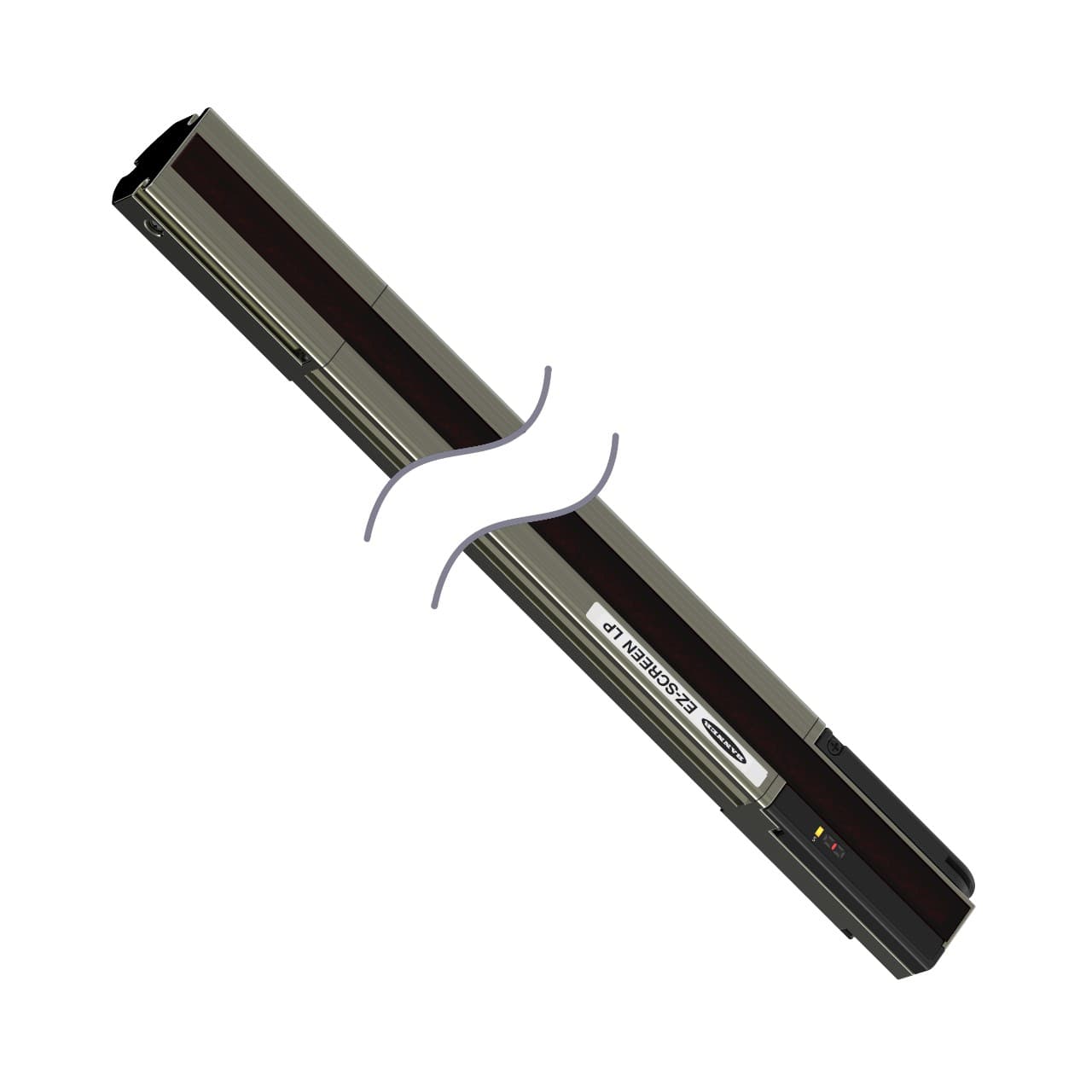

SLPE25-1250N EZS LP EMTR 25mm X 1250mm
Product Details
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Reduced Resolution Yes
- Feature: ESD Safe No
- Connector Type Removable Disconnect
- Housing Finish Clear Anodized
- SIL Rating SIL3; CL3
- Overall Length (mm) 1250
- Operating Distance (m) 0.1 - 7
- Shock 10g at 16ms (6000 cycles)
- Test Input No
- Defined Area Height (mm) 1250
- PL Rating Ple
- System Type Emitter
- External Monitoring Device No
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Safety Level Type 4
- IP Rating IP65
- Scan Code Selectable
- Fault Output Yes
- Feature: Integral Muting No
- low-profile Yes
- Fixed Blanking Yes
- Response Time 18.5
- Auxiliary Output Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Trip/Latch Output Selectable
- Dimensions WxD (mm) 28 x 26
- Resolution (mm) 25
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Supply Current 150 mA max.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
