SLPE14-1110NP8 Banner Electronic Components
Part#:SLPE14-1110NP8
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

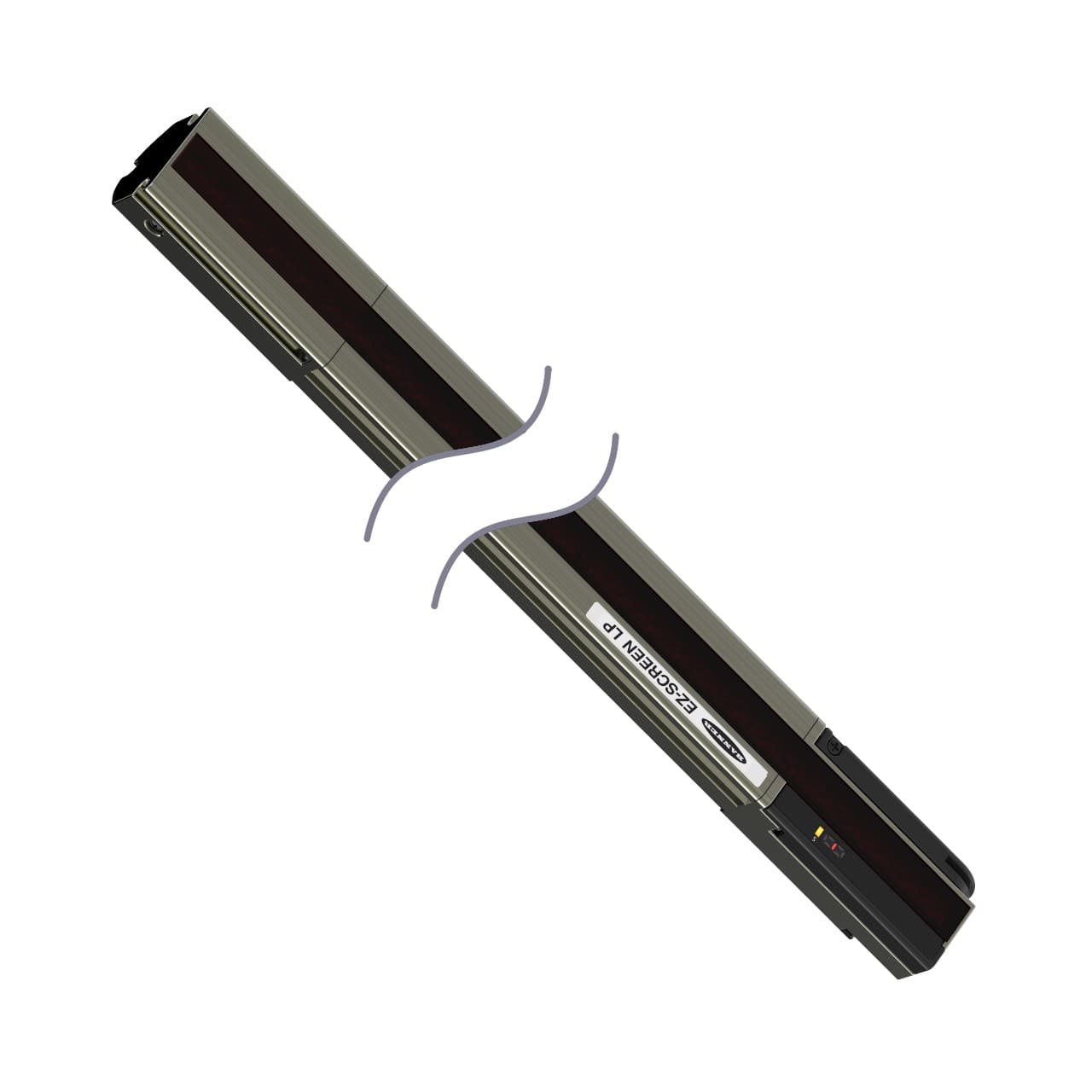

SLPE14-1110NP8 EZS LP EMTR 14mm X 1110mm PIGTAIL
Product Details
- Dimensions WxD (mm) 28 x 26
- Operating Voltage 24 V dc +/- 15%
- Reduced Resolution No
- Auxiliary Output No
- External Monitoring Device No
- PL Rating Ple
- Scan Code Selectable
- Shock 10g at 16ms (6000 cycles)
- Supply Current 60 mA max.
- low-profile Yes
- Operating Distance (m) 0.1 - 7
- Response Time 28.5
- Vibration 10-55 Hz at 0.35 mm
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- Housing Finish Nickel Plated
- OSSD Rating N/A
- Connector Type M12 Pigtail (Yellow)
- Number of Pins (Receiver/Emitter) 8
- SIL Rating SIL3; CL3
- Fault Output Yes
- Safety Level Type 4
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP65
- Short Protection Yes
- Defined Area Height (mm) 1110
- Fixed Blanking No
- Resolution (mm) 14
- System Type Emitter
- Overall Length (mm) 1110
- Recovery Time 33-220 / 109-800
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Test Input Yes
- Feature: End-to-End Sensing Yes
- Trip/Latch Output N/A
- Feature: Integral Muting No
- Feature: ESD Safe Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
