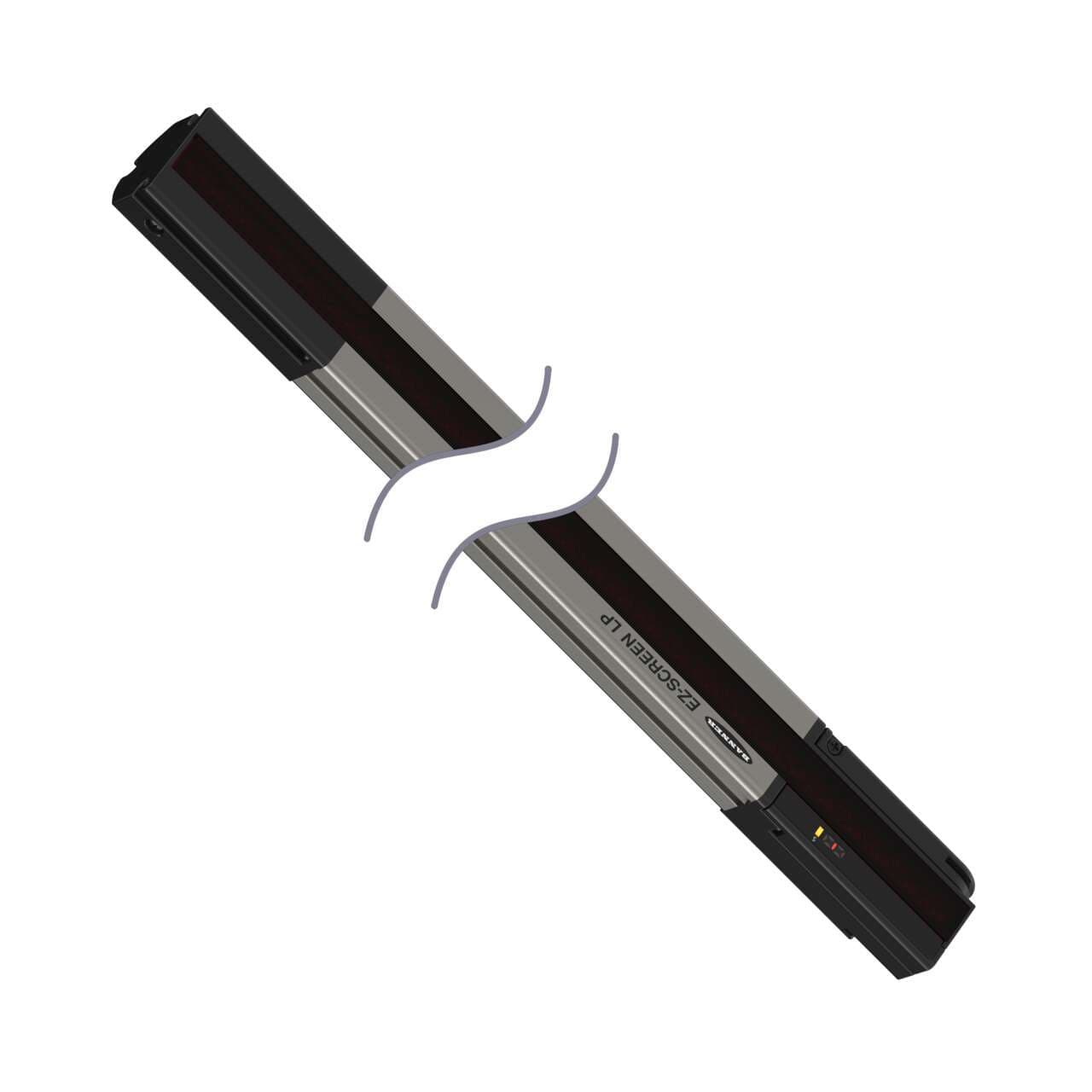

SLPE14-1110A Banner Safety Light Curtains
Part#:SLPE14-1110A
Alt. Part#:83878
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPE14-1110 AP8 EZ-SCREEN Low Profile EMITTER; Resolution: 14 mm; Response (Tr): 28.5 ms; Beams: 111; Range: 0.1-7 m (4 in - 23 ft); Height: 1110 mm (43.7 in); Integral RD; Housing: Anodized Aluminum
Product Details
- Weight 1723.6496 g
- Country Of Origin US
- Safety Level Type 4
- Operating Distance (m) 0.1 - 7
- SIL Rating SIL3; CL3
- Dimensions WxD (mm) 28 x 26
- Operating Voltage 24 V dc +/- 15%
- IP Rating IP65
- Vibration 10-55 Hz at 0.35 mm
- low-profile Yes
- PL Rating Ple
- Response Time 28.5
- Fault Output Yes
- Defined Area Height (mm) 1110
- Electrical Safety Class III
- OSSD Rating N/A
- Overall Length (mm) 1110
- Fixed Blanking No
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output N/A
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Resolution (mm) 14
- System Type Emitter
- External Monitoring Device No
- Housing Finish Clear Anodized
- Short Protection Yes
- Test Input Yes
- Primary Housing Material Aluminum
- Reduced Resolution No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Auxiliary Output No
- Feature: ESD Safe No
- Connector Type Removable Disconnect
- Scan Code Selectable
- Recovery Time 33-220 / 109-800
- Supply Current 60 mA max.
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- Feature: End-to-End Sensing Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPE14-1110A on Powermatic Associates is $1,804.00. Order now.
About the product
Banner Engineering SLPE14-1110A is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This unit, serving as the emitter alone, is constructed with a clear anodized aluminum housing, acrylic lens, and zinc end caps. It features an integral removable disconnect (RD) for its connection type. The protective height of the SLPE14-1110A is 1110mm, and it comes in a gray housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This model is IP65 rated, indicating a high level of protection against dust and water. The net dimensions are 28mm in width, 1108mm in height, and 26mm in depth. It offers a sensing distance from 10cm up to 7m and utilizes infrared (IR) light with a wavelength of 850 nm. The response time is 28.5ms. For outputs, it includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; 250mA; PNP transistor) for fault indication.
