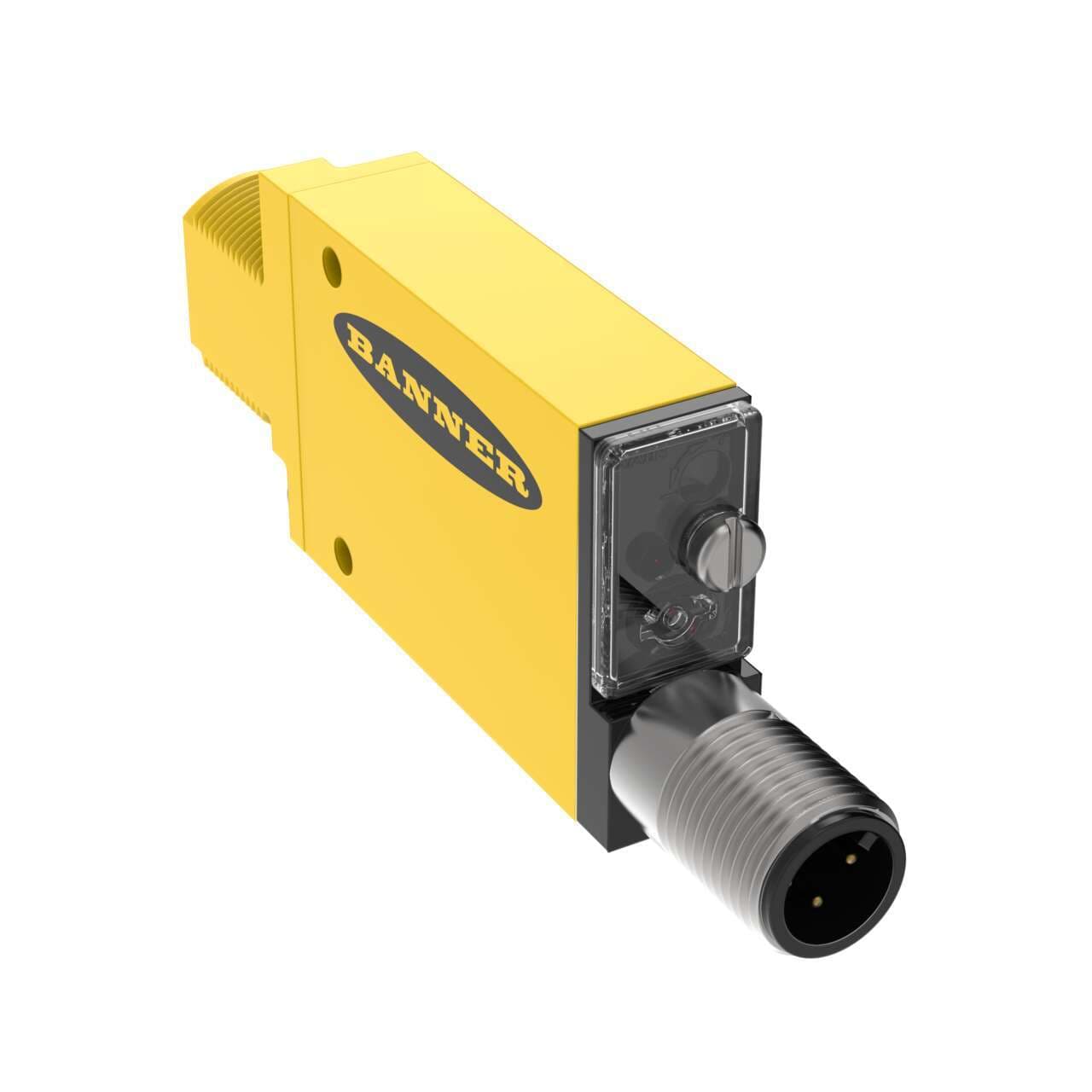

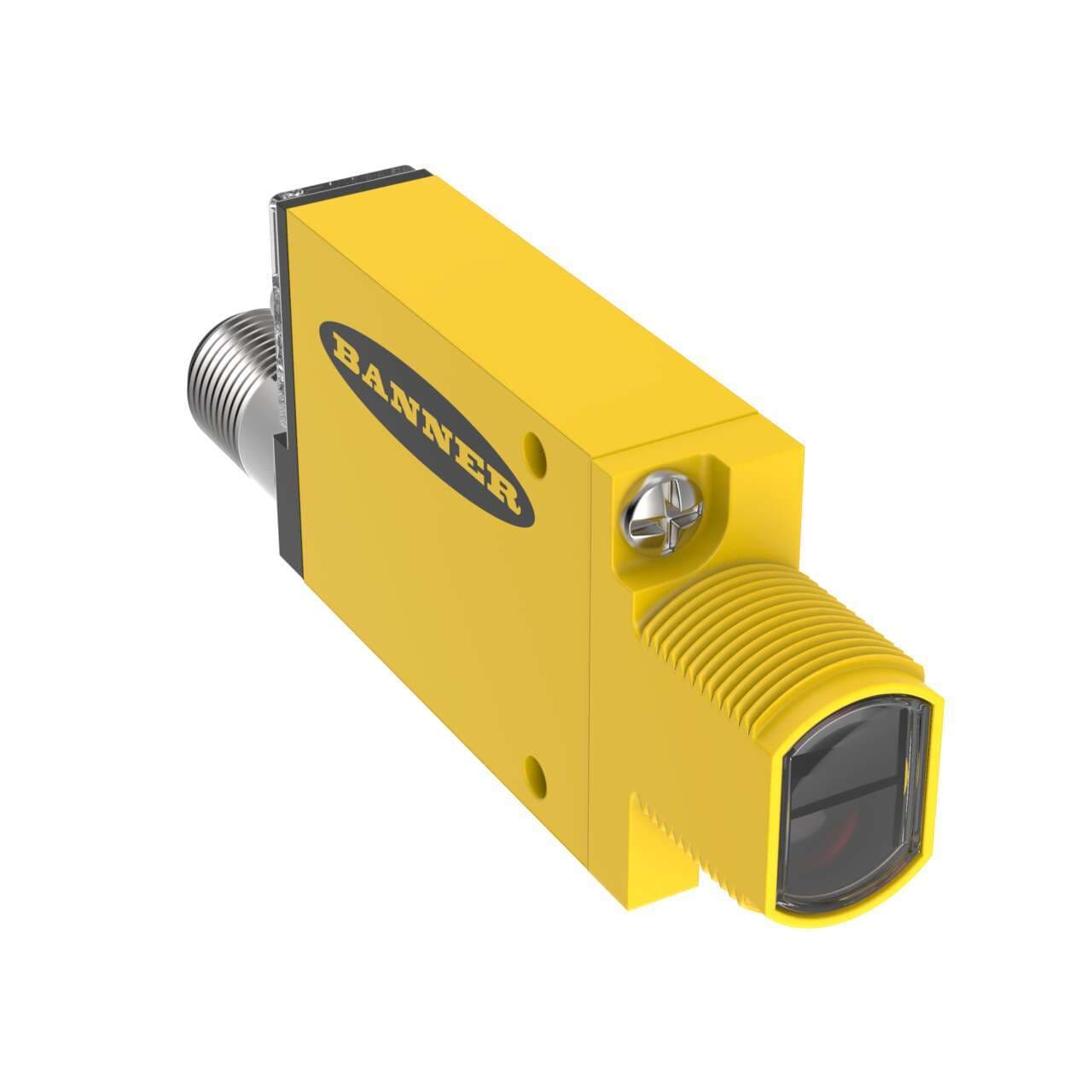

SM2A312CV2QD Banner Proximity Sensors

SM2A312CV2QD on Powermatic Associates
Banner
  • SM2A312CV2QD
  • SM2A312CV2QD

Part#:SM2A312CV2QD

Alt. Part#:26911

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 43 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD

Product Details

  • Weight
    70.30676 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • Delay at Power-up (ms)
    300
  • IP Rating
    IP67
  • Number of Pins
    3
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    1300
  • Sensing Beam Wavelength
    650
  • Max Op. Temp. (°C)
    70
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Connection
    Integral QD
  • Output response time (ms)
    4
  • Quick Disconnect Type
    1/2 in. (Micro)
  • Min Op. Temp. (°C)
    -20
  • Power Supply/Supply Voltage
    24-240 V ac
  • Power
    AC
  • Outputs
    Solid-State AC Switch
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    43
  • Sensing Mode (General)
    Proximity
  • Input/Output
    Solid-State AC Switch
  • Sensing Beam
    Visible Red LED
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (Detailed)
    Convergent

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312CV2QD on Powermatic Associates is $203.00. Order now.

About the product

Banner Engineering SM2A312CV2QD is a photo-electric sensor from the SM2A312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and can be mounted using an M18 threaded mount. The sensor is capable of operating in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. It has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 43mm. The sensor emits visible red light with a wavelength of 650 nm and has a response time of 4ms / 0.004 s. Its operating modes include Light-ON and Dark-ON.
