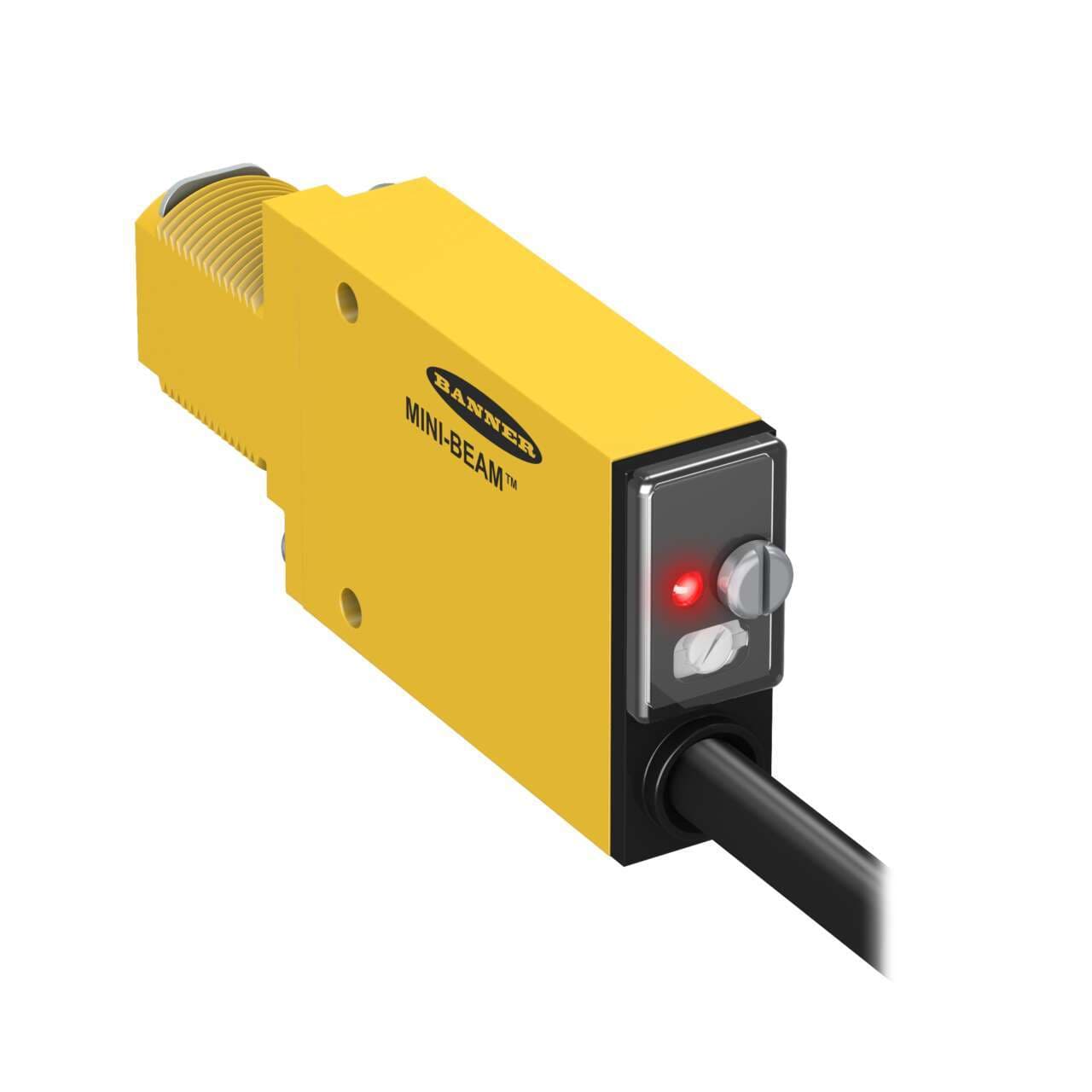

SM2A312FV Banner Proximity Sensors
Part#:SM2A312FV
Alt. Part#:26863
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Visible Red 650 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 2 m (6.5 ft) Cable
Product Details
- Weight 154.22128 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Sub-range name SM2A312
- Light Color Visible red
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Response time 8ms / 0.008 s
- Product series / family name MINI-BEAM series
- Wavelength 650 nm
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Functions Photo-electric fiber optic sensor red LED (power ON) potentiometer adjustment
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+70 °C
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Thread size M18
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s) cURus CSA CE
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Order code / Manufacturer SKU 26863
- Technical compatibility with glass fiber
- Connection Cable
- Housing Style Rectangular w/M18 Mount
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Minimum response time (ms) 8
- Housing Material Thermoplastic
- Input/Output Discrete
- Output Type (Specific) Single Discrete
- Intrinsically Safe No
- Feature: Audible No
- IP Rating IP67
- Color LED - Amplifiers Red
- Indicator Display Type Indicator LEDs
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Number of Pins 2
- Adjustments Potentiometer
- Special Feature: Remote Teach No
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Special Feature: Bussable Power No
- IO Link No
- Power AC
- Min Op. Temperature (°C) -20
- Repeatability (µs) 2600
- Fiber Type Glass Only
- Max Op. Temperature (°C) 70
- Power Supply/Supply Voltage 24-240 V ac
- Output Solid-State AC Switch
- Max Op. Relative Humidity (%) 90% @ 50°C
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312FV on Powermatic Associates is $191.00. Order now.
About the product
Banner Engineering SM2A312FV is a photo-electric fiber optic sensor within the SM2A312 series, featuring a potentiometer adjustment specifically designed for glass fiber applications. This sensor is housed in a thermoplastic casing with an acrylic lens and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage range of 24Vac to 240Vac, with nominal voltages of 200Vac and 220Vac, and can be mounted using an M18 threaded mount. The SM2A312FV is designed to function within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring its suitability for various environmental conditions. It has a rectangular shape and includes one digital output (Solid-state AC output; SPST contact type). The sensor emits visible red light with a wavelength of 650 nm and has a response time of 8ms / 0.008 s.
