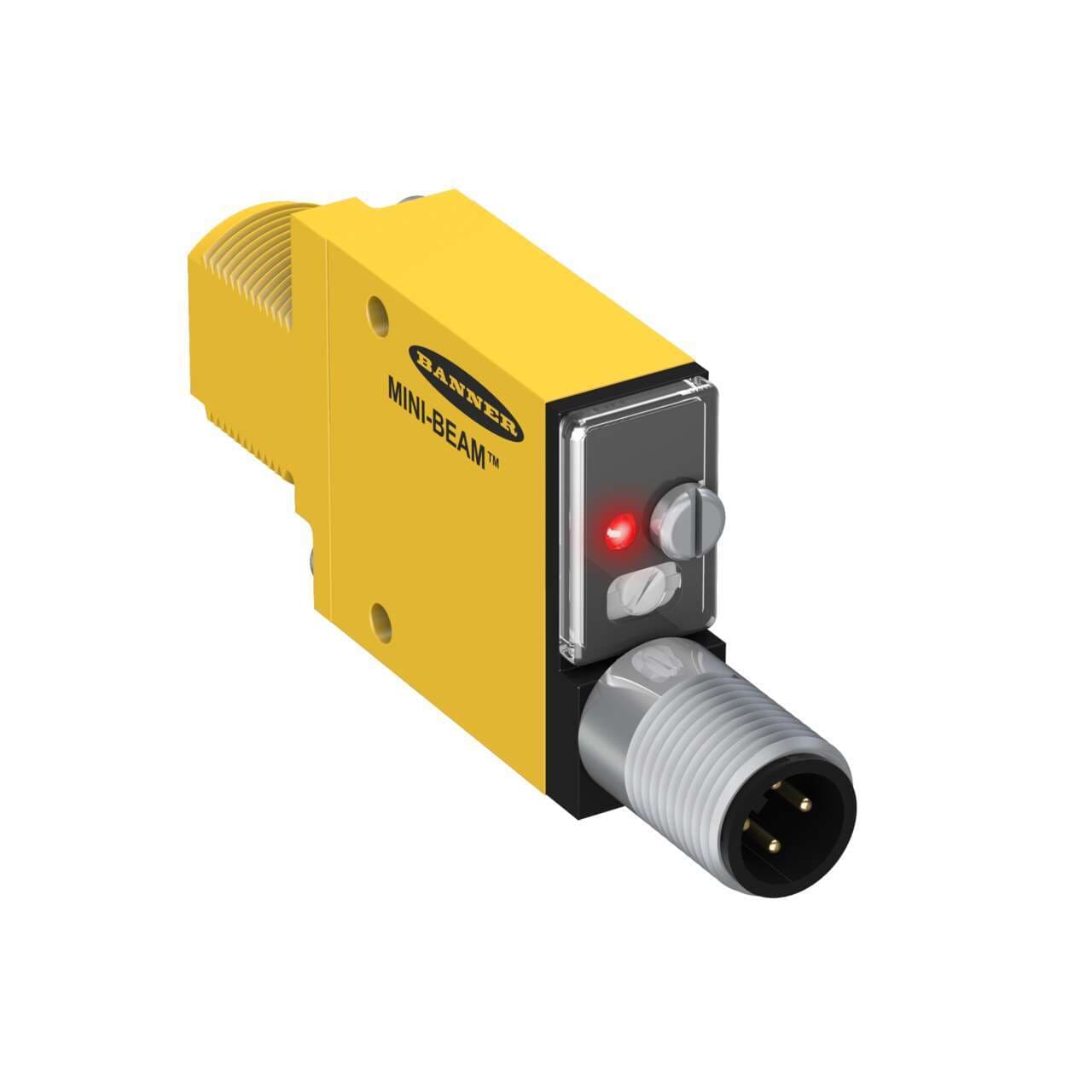

SM312CV2 W/30 Banner Proximity Sensors
Part#:SM312CV2 W/30
Alt. Part#:26273
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 43 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) cable
Product Details
- Weight 580.59776 g
- Country Of Origin US
- Input/Output Discrete
- Housing Style Rectangular w/M18 Mount
- Special Feature: Intrinsically Safe No
- Output response time (ms) 1
- Adjustments Potentiometer
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -20
- Repeatability (µs) 300
- IO Link No
- Max Sensing Distance (mm) 43
- Sensing Beam Wavelength 650
- Lens Material Acrylic
- DeviceNet No
- Power DC
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Indicator LEDs
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Connection Cable
- Quick Disconnect Type No QD
- IP Rating IP67
- Special Feature: Water Detection No
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Convergent
- Cable Length (m) 9
- Sensing Mode (General) Proximity
- Number of Pins 4
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312CV2 W/30 on Powermatic Associates is $219.00. Order now.
About the product
Banner Engineering SM312CV2 W/30 is a photo-electric sensor from the SM312 series designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The SM312CV2 W/30 offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, ensuring durability in various environments. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of 43mm. It emits visible red light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.
