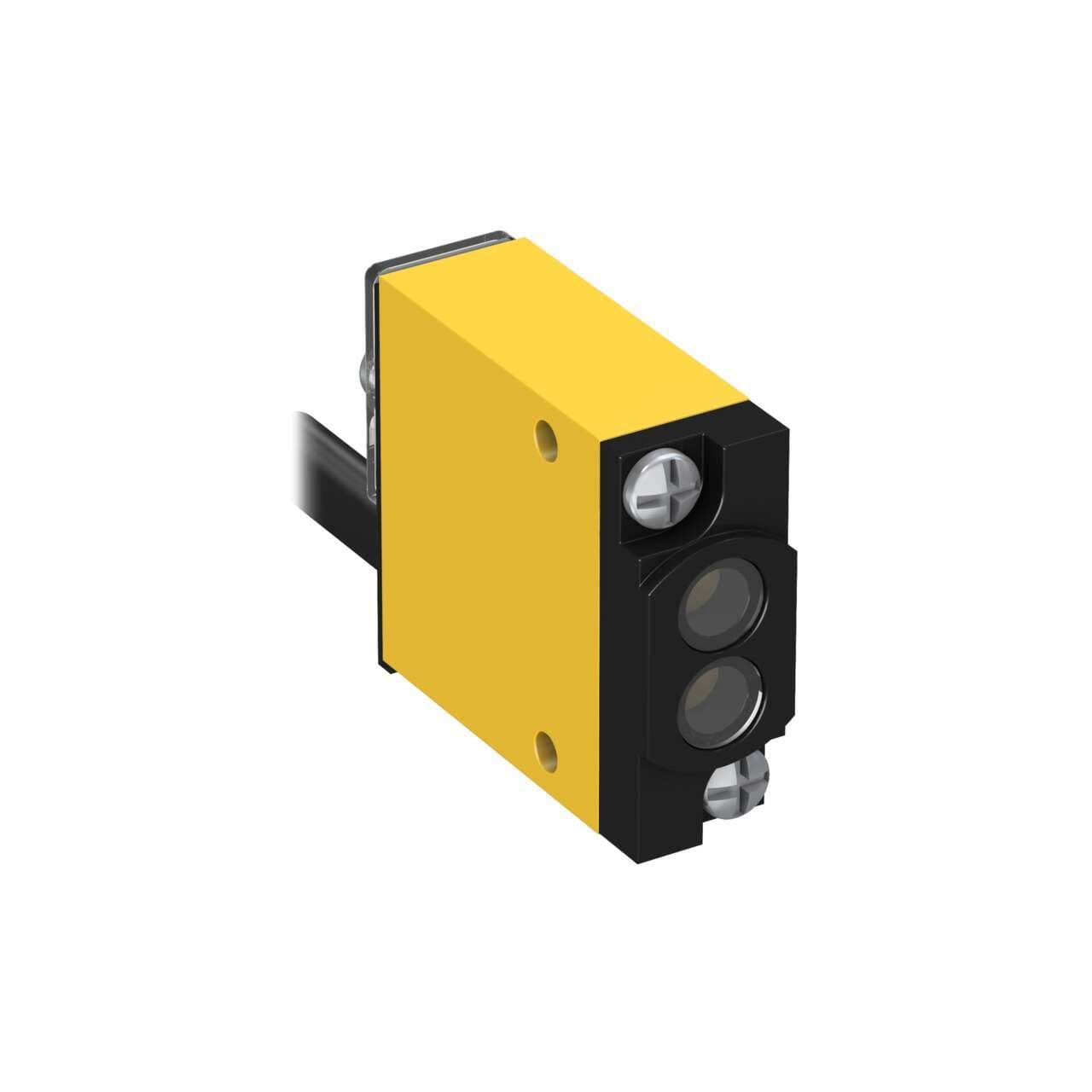

SM312DBZ W/30 Banner Proximity Sensors
Part#:SM312DBZ W/30
Alt. Part#:30987
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable
Product Details
- Weight 585.13368 g
- Country Of Origin US
- Sensing Beam Infrared LED
- Special Feature: Remote Teach No
- Max Op. Temp. (°C) 70
- Quick Disconnect Type No QD
- Max Sensing Distance (mm) 300
- Housing Style Rectangular
- Special Feature: Water Detection No
- Power Supply/Supply Voltage 10-30 V dc
- Connection Cable
- Input/Output Discrete
- Sensing Mode (Detailed) Diffuse
- Repeatability (µs) 300
- Primary Housing Material Thermoplastic
- Outputs Bipolar (NPN & PNP)
- Cable Length (m) 9
- Operation Light/Dark Operate
- Number of Pins 4
- Indicator LEDs
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Encapsulated No
- DeviceNet No
- Delay at Power-up (ms) 100
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Adjustments Potentiometer
- Feature: Hazardous Area No
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- Power DC
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (General) Proximity
- Output response time (ms) 1
- Barrel Diameter (mm) N/A
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312DBZ W/30 on Powermatic Associates is $192.00. Order now.
About the product
Banner Engineering SM312DBZ W/30 is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of 300mm. It emits infrared (IR) light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.
