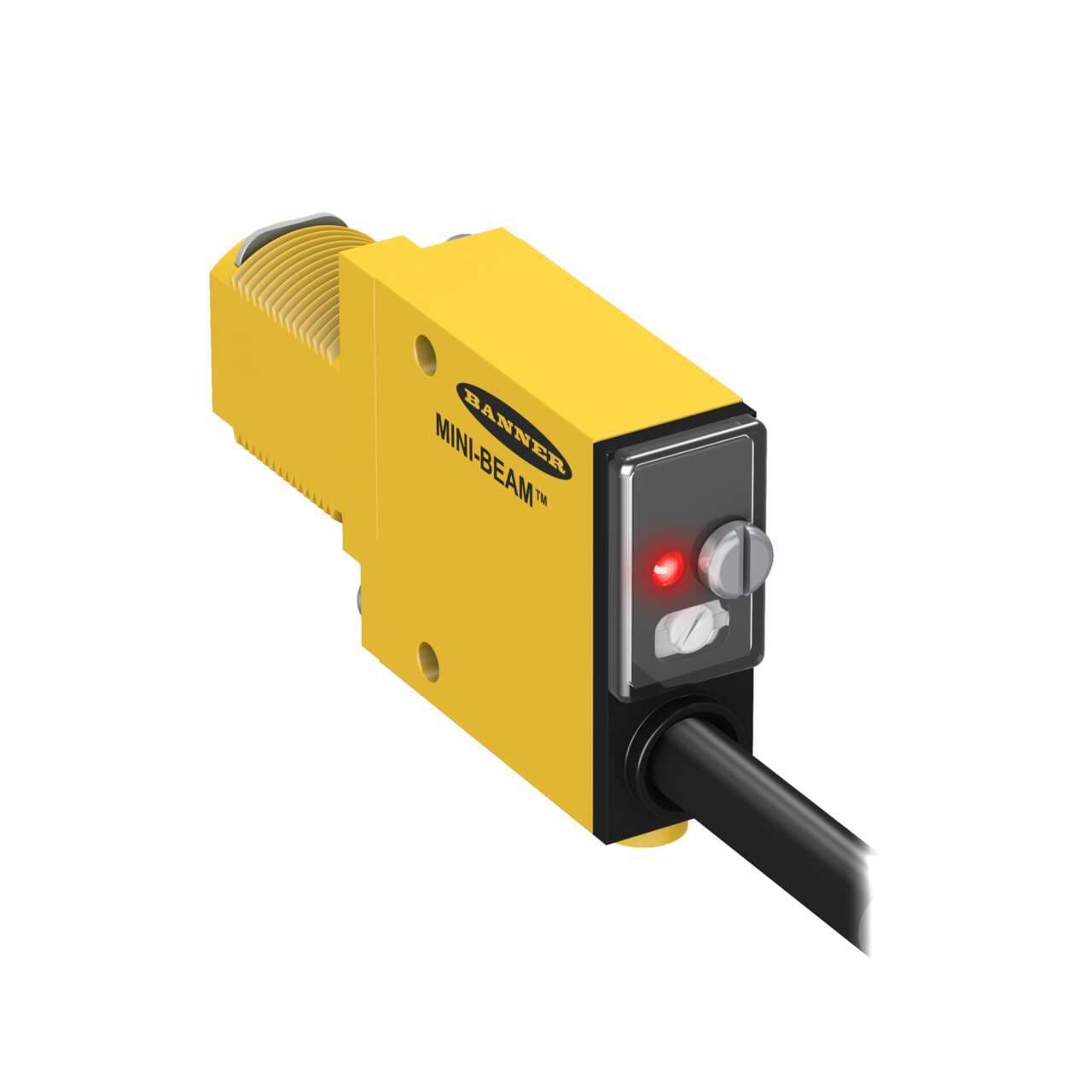

SM312FMHS W/30 Banner Proximity Sensors
Part#:SM312FMHS W/30
Alt. Part#:35915
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Infrared High Speed Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 9 m (30 ft) Cable
Product Details
- Weight 598.74144 g
- Country Of Origin US
- Output Bipolar (NPN & PNP)
- Output Type (Specific) Single Discrete
- Delay at Power-up (ms) 100
- Fiber Type Glass Only
- Max Op. Relative Humidity (%) 90% @ 50°C
- Special Feature: Bussable Power No
- Cable Length (m) 9
- IP Rating IP67
- Special Feature: Remote Teach No
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -20
- Feature: Timing (Hold/Delay) No
- Number of Pins 4
- Connection Cable
- Feature: Audible No
- Power DC
- Quick Disconnect Type No QD
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Indicator Display Type Indicator LEDs
- Repeatability (µs) 300
- Primary Housing Material Thermoplastic
- Minimum response time (ms) .3
- Color LED - Amplifiers Infrared
- Max Op. Temperature (°C) 70
- Adjustments Potentiometer
- IO Link No
- Input/Output Discrete
- Intrinsically Safe No
- Housing Material Thermoplastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312FMHS W/30 on Powermatic Associates is $192.00. Order now.
About the product
Banner Engineering SM312FMHS W/30 is a photo-electric fiber optic sensor from the SM312 series, designed with a potentiometer adjustment for glass fiber. This sensor features a thermoplastic housing with glass fiber material and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It emits infrared (IR) light with a wavelength of 880 nm and has a response time of 0.3ms / 0.0003 s. The operating modes available are Light-ON and Dark-ON.
