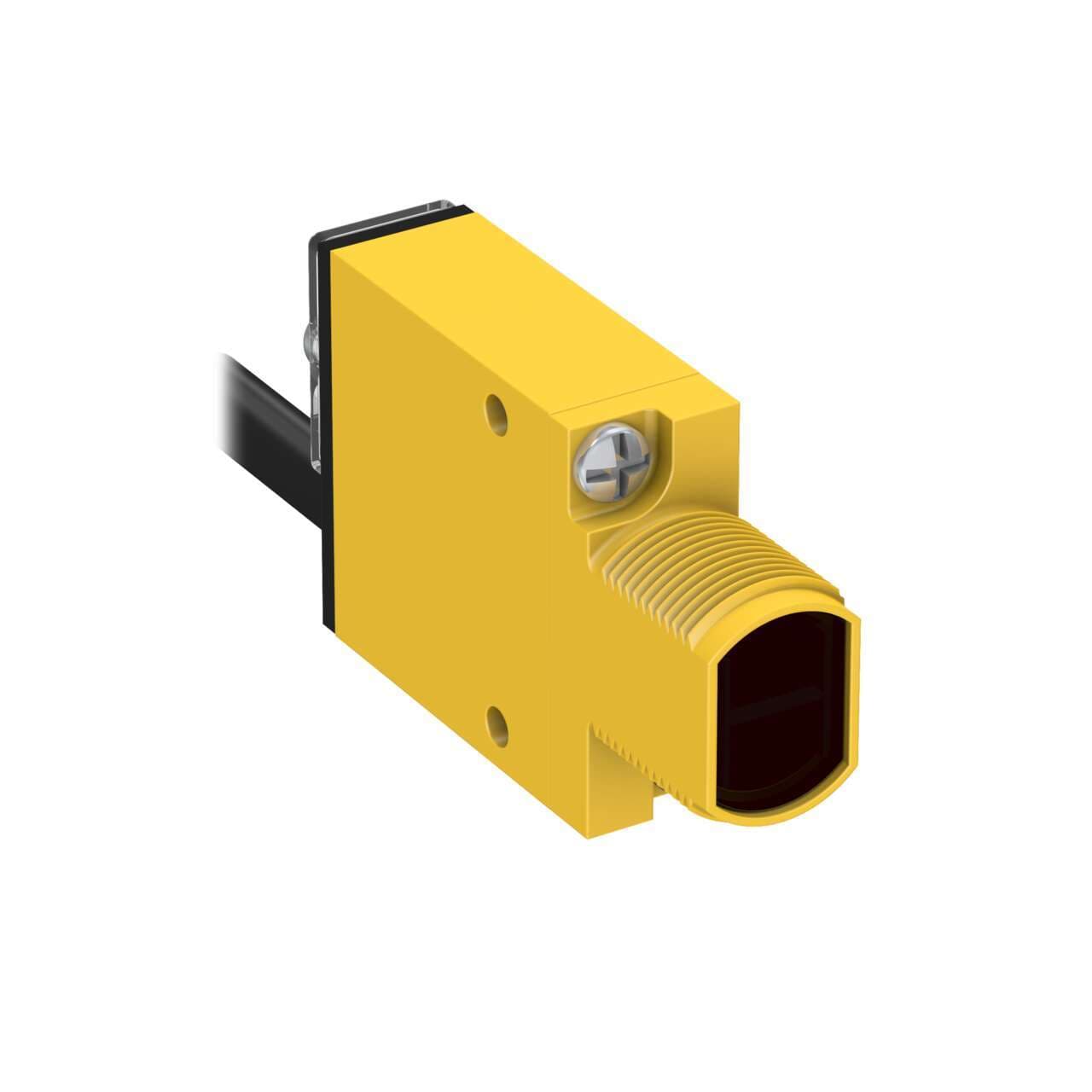

SM312LVMHS W/30 Banner Proximity Sensors
Part#:SM312LVMHS W/30
Alt. Part#:27222
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: High Speed Retro; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 9 m (30 ft) Cable
Product Details
- Weight 596.927072 g
- Country Of Origin US
- Special Feature: Water Detection No
- Outputs Bipolar (NPN & PNP)
- Barrel Diameter (mm) 18
- Power DC
- Max Sensing Distance (mm) 5000
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Feature: Audible No
- Cable Length (m) 9
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Sensing Mode (Detailed) Non-Polarized
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Indicator LEDs
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Connection Cable
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Encapsulated Yes
- Quick Disconnect Type No QD
- Primary Housing Material Thermoplastic
- Repeatability (µs) 300
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Output response time (ms) 0.3
- Lens Material Acrylic
- IO Link No
- Sensing Mode (General) Retroreflective
- Sensing Beam Wavelength 650
- Adjustments Potentiometer
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312LVMHS W/30 on Powermatic Associates is $192.00. Order now.
About the product
Banner Engineering SM312LVMHS W/30 is a photo-electric sensor from the SM312 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, making it suitable for various environmental conditions. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of up to 5m. It emits visible red light and has a response time of 0.3ms / 0.0003 s, with operating modes that include Light-ON and Dark-ON.
