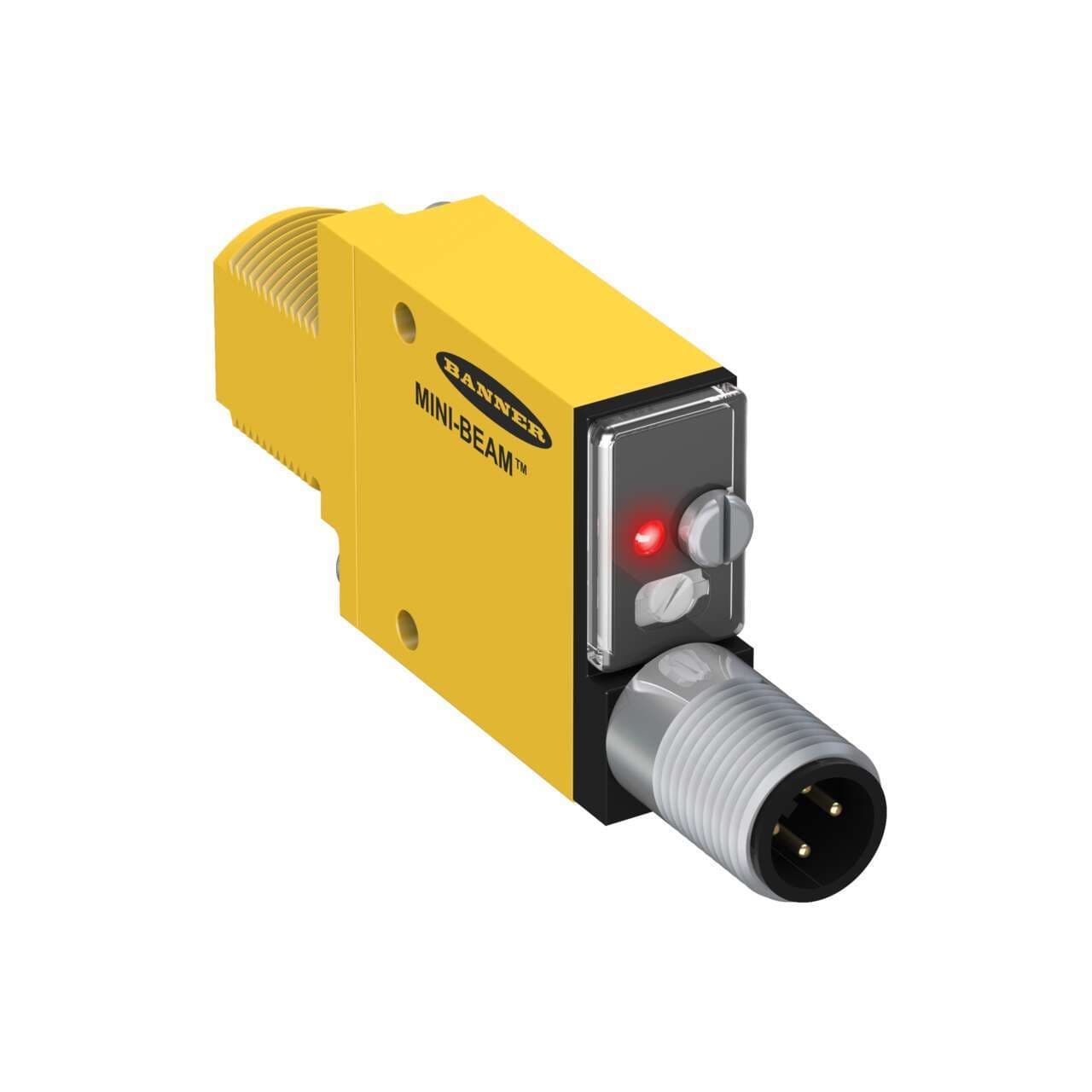

SM312LVQD-50939 Banner Proximity Sensors
Part#:SM312LVQD-50939
Alt. Part#:50939
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM312LVQD-50939 MINI-BEAM; Special Short Range Retroreflective; Input: 10-30 V dc; Output: Bipolar; 4-pin M12 Integral QD
Product Details
- Weight 81.64656 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Primary brand Banner Engineering
- Sub-range name SM312
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Thread size M18
- Product series / family name MINI-BEAM series
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Sensing distance 5m
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Equivalent to SM312LVQD50939
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Design retro-reflective mode
- Response time 1ms / 0.001 s
- Order code / Manufacturer SKU 50939
- Shape Rectangular
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -20...+70 °C
- Compliant with standard(s) cURus CSA CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312LVQD-50939 on Powermatic Associates is $152.00. Order now.
About the product
Banner Engineering SM312LVQD-50939 is a photo-electric sensor from the SM312 series, designed in a retro-reflective mode with potentiometer adjustment for special short-range applications. It features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a high degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of up to 5m, utilizes visible red light, and boasts a rapid response time of 1ms / 0.001 s. It supports both Light-ON and Dark-ON operating modes.
