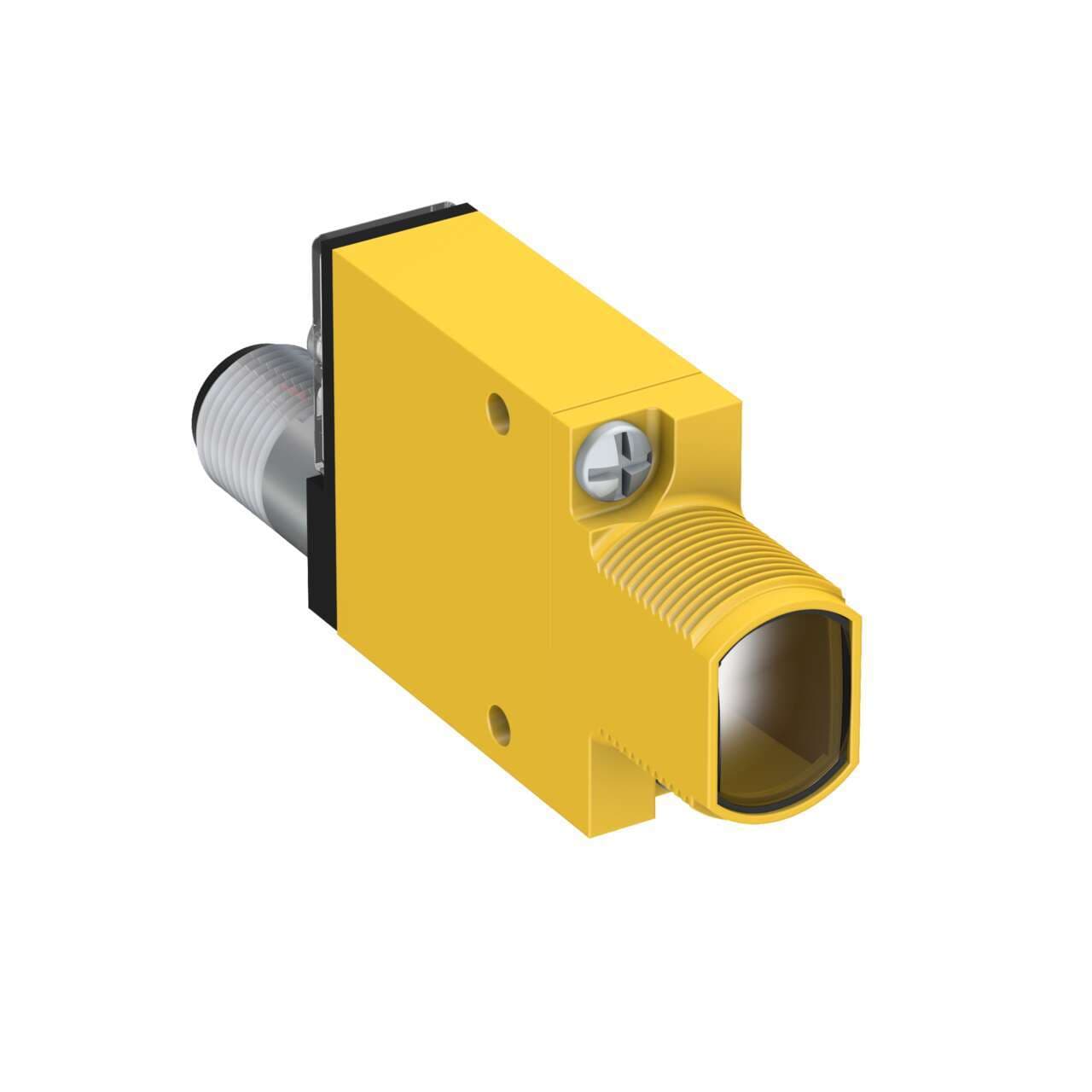

SM31RLMHSQD Banner Proximity Sensors
Part#:SM31RLMHSQD
Alt. Part#:30232
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: High Speed Receiver; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; QD
Product Details
- Weight 62.595696 g
- Country Of Origin US
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Encapsulated Yes
- Sensing Mode (General) Opposed
- Connection Integral QD
- Number of Pins 4
- Indicator LEDs
- Max Sensing Distance (mm) 30000
- Sensing Mode (Detailed) Receiver
- Outputs Bipolar (NPN & PNP)
- Output response time (ms) 0.3
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Operation Light/Dark Operate
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- DeviceNet No
- Power DC
- Min Op. Temp. (°C) -20
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- IO Link No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 140
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RLMHSQD on Powermatic Associates is $125.00. Order now.
About the product
Banner Engineering SM31RLMHSQD is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor functions as a receiver alone, housed in a thermoplastic body with an acrylic lens. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It features an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. The SM31RLMHSQD offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, and 12. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor) and can detect objects up to a distance of 30m using infrared (IR) light. The sensor's response time is notably quick at 0.3ms, and it supports both Light-ON and Dark-ON operating modes.
