SMU315LPQDP Banner Proximity Sensors
Part#:SMU315LPQDP
Alt. Part#:63160
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SMU315LPQDP 5 PIN MICRO-STYLE QD PIGTAIL NON-SWIVEL
Product Details
- Weight 117.93392 g
- Country Of Origin US
- Sensing Mode (Detailed) Polarized
- Connection Pigtail QD
- Delay at Power-up (ms) N/A
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 3000
- Max Op. Temp. (°C) 55
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Power Supply/Supply Voltage 24-240 V ac/dc
- Power AC/DC Universal
- Special Feature: Remote Teach No
- Outputs SPDT e/m Relay
- Number of Pins 5
- Special Feature: Water Detection No
- Feature: Encapsulated No
- Input/Output E/M Relay
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Quick Disconnect Type 1/2 in. (Micro)
- Adjustments Potentiometer
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 90% @ 50°C
- Barrel Diameter (mm) 18
- Sensing Mode (General) Retroreflective
- Operation Light/Dark Operate
- Sensing Beam Wavelength 650
- Feature: Audible No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Output response time (ms) 20
- Lens Material Acrylic
- DeviceNet No
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU315LPQDP on Powermatic Associates is $232.00. Order now.
About the product

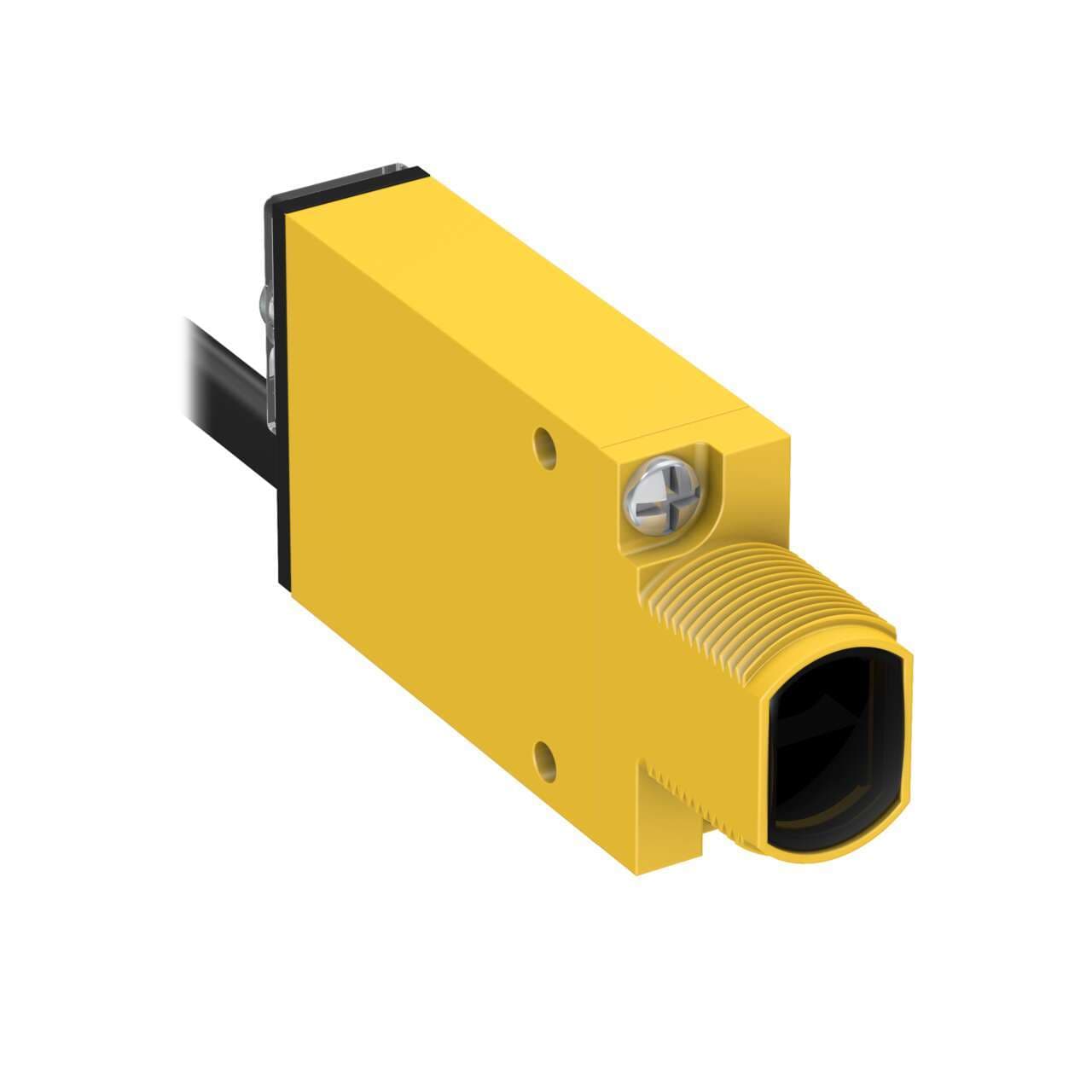

Banner Engineering SMU315LPQDP is a polarized photo-electric sensor from the SMU315 universal voltage series, designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and is pre-wired with a 6" / 150mm pigtail terminated with a 5-pin 1/2" micro connector. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) for AC and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.) for DC. The SMU315LPQDP offers an M18 threaded mount for installation and boasts a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. Its rectangular shape encompasses 1 x digital output (SPDT rly. contact) and achieves a sensing distance of 3m. The sensor emits a visible red light with a wavelength of 650 nm and responds within 20ms / 0.02 s, supporting both Light-ON and Dark-ON operating modes.
