Part#:T8RP6D100Q5

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

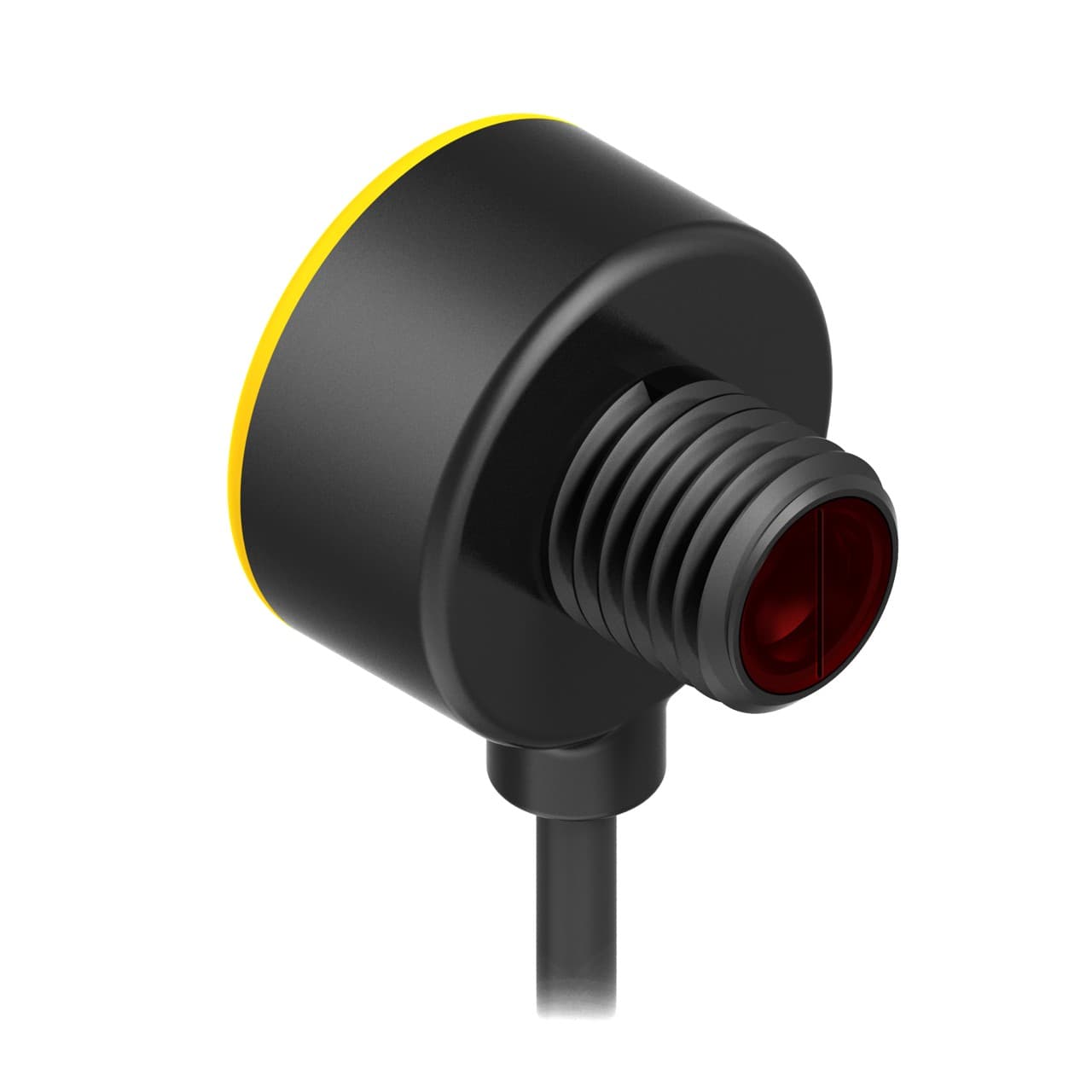

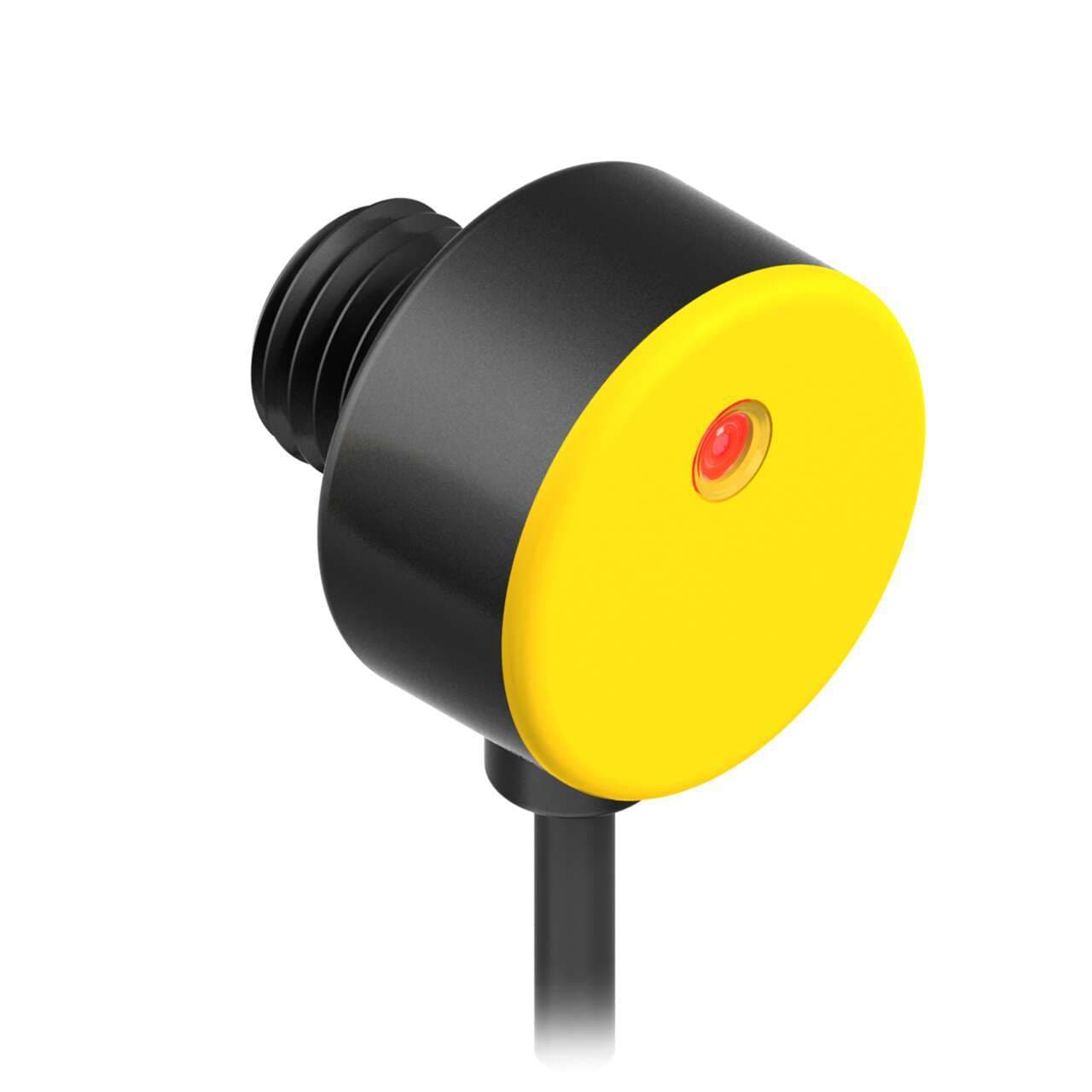

EZ-BEAM T8 Series DIFFUSE, Range: 100 mm; Input: 10-30Vdc, Output: PNP/ DO, 150 mm Pigtail QD Connector

Product Details

  • Housing Style
    Barrel
  • Min Op. Temp. (°C)
    -20
  • Number of Pins
    4
  • Indicator
    LEDs
  • Connection
    Pigtail QD
  • Primary Housing Material
    Thermoplastic
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Outputs
    PNP
  • Output response time (ms)
    1 ON/0.5 OFF
  • Repeatability (µs)
    160
  • Opposed Mode Emitter/Receiver
    N/A
  • DeviceNet
    No
  • Max Sensing Distance (mm)
    100
  • Sensing Beam
    Visible Red LED
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Delay at Power-up (ms)
    150
  • Barrel Diameter (mm)
    8
  • IO Link
    No
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    55
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Feature: Hazardous Area
    No
  • Sensing Mode (General)
    Proximity
  • Operation
    Dark Operate
  • NEMA Rating
    NEMA 6
  • Feature: Encapsulated
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T8RP6D100Q5 Related Documents

T8 Series, Diffuse-Mode Models-1630949251320.pdf
