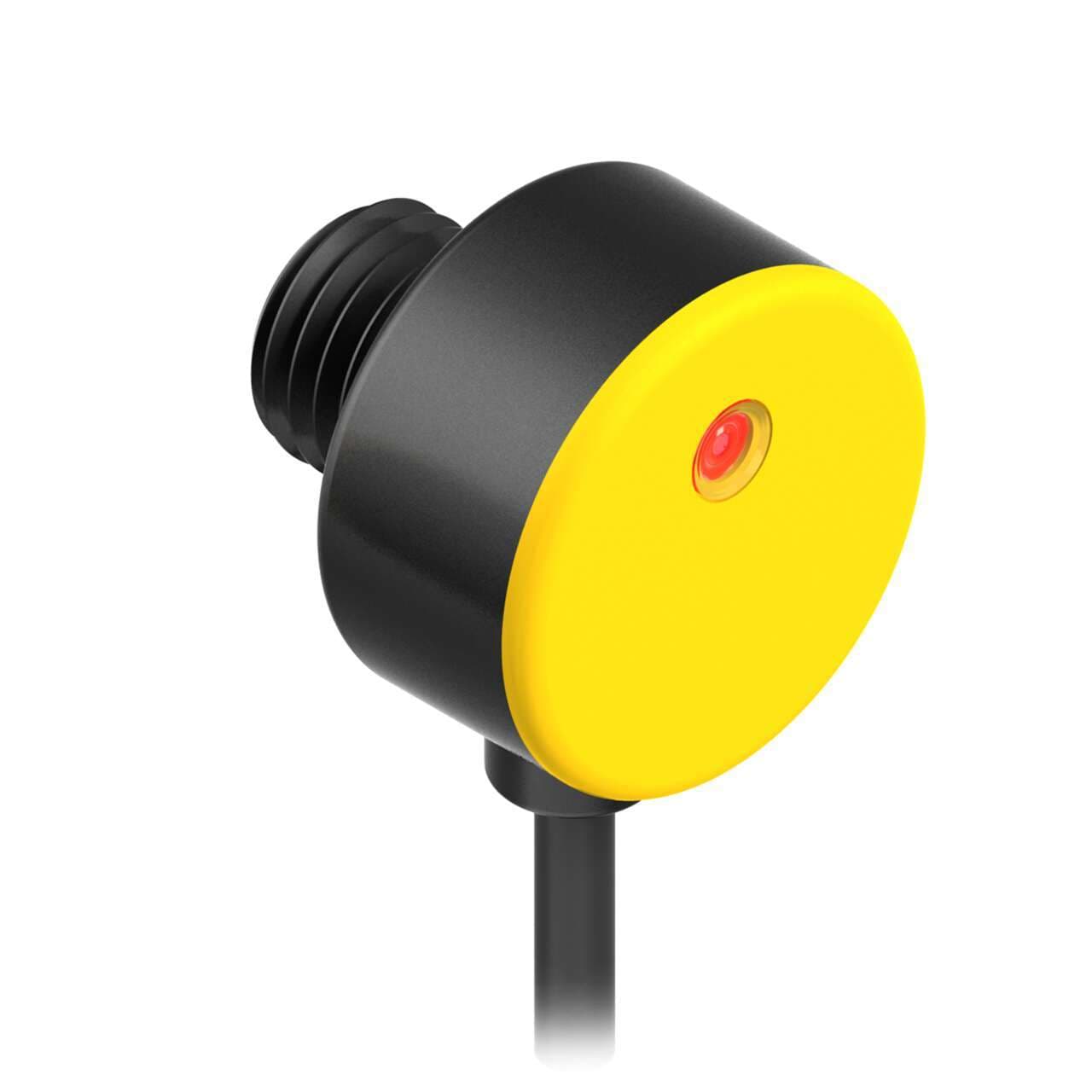

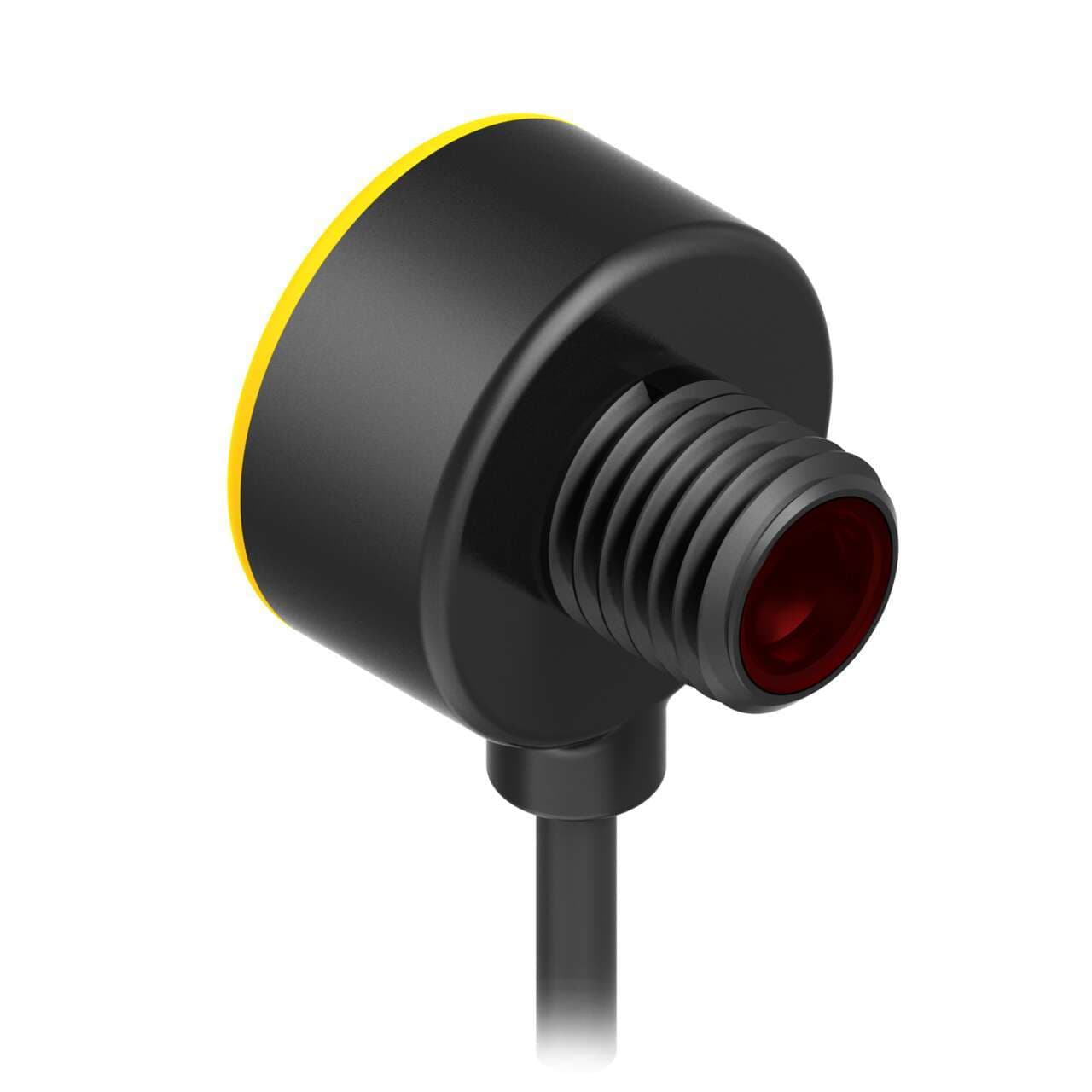

T8RP6RQ Banner Proximity Sensors
Part#:T8RP6RQ
Alt. Part#:66670
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T8 Series: Opposed Mode; Range: 2000 mm; Input: 10-30 V dc; Output: PNP Dark Operate; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 36.28736 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Light Color Visible red
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Operating mode Dark-ON NC (Normally Closed)
- Product series / family name EZ-BEAM series
- Sub-range name T8 series
- Design through-beam system / opposed mode
- Response time 1ms / 0.001 s
- Ambient air temperature for operation -20...+55 °C
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor receiver green LED (power ON) red LED (failure)
- Thread size M8
- Material thermoplastic housing Acrylic lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 660 nm
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (PNP transistor)
- Sensing distance 2m
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 66670
- DeviceNet No
- Housing Style Barrel
- Output response time (ms) 1 ON/0.5 OFF
- Repeatability (µs) 100
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Connection Pigtail QD
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type M8 (Pico)
- Outputs PNP
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Power DC
- Operation Dark Operate
- IP Rating IP67
- Feature: Encapsulated No
- Max Sensing Distance (mm) 2000
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Mode (Detailed) Receiver
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments N/A
- Input/Output Discrete
- Max Op. Temp. (°C) 55
- Number of Pins 3
- Barrel Diameter (mm) 8
- IO Link No
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Delay at Power-up (ms) 100
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8RP6RQ on Powermatic Associates is $126.00. Order now.
About the product
Banner Engineering T8RP6RQ is a photo-electric sensor from the T8 series designed with a through-beam system, functioning as the receiver component of the opposed mode setup. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6-inch (150mm) pigtail that terminates with a 3-pin Pico-style M8 connector. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to work within an ambient air temperature range of -20 to +55 degrees Celsius and offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environmental conditions. The T8RP6RQ has an M8 cylindrical threaded/barrel shape, includes one digital output (PNP transistor), and provides a sensing distance of up to 2 meters. It emits visible red light with a wavelength of 660 nm and features a fast response time of 1ms (0.001 s). Its operating mode is Dark-ON NC (Normally Closed), and it has an M8 thread size.
