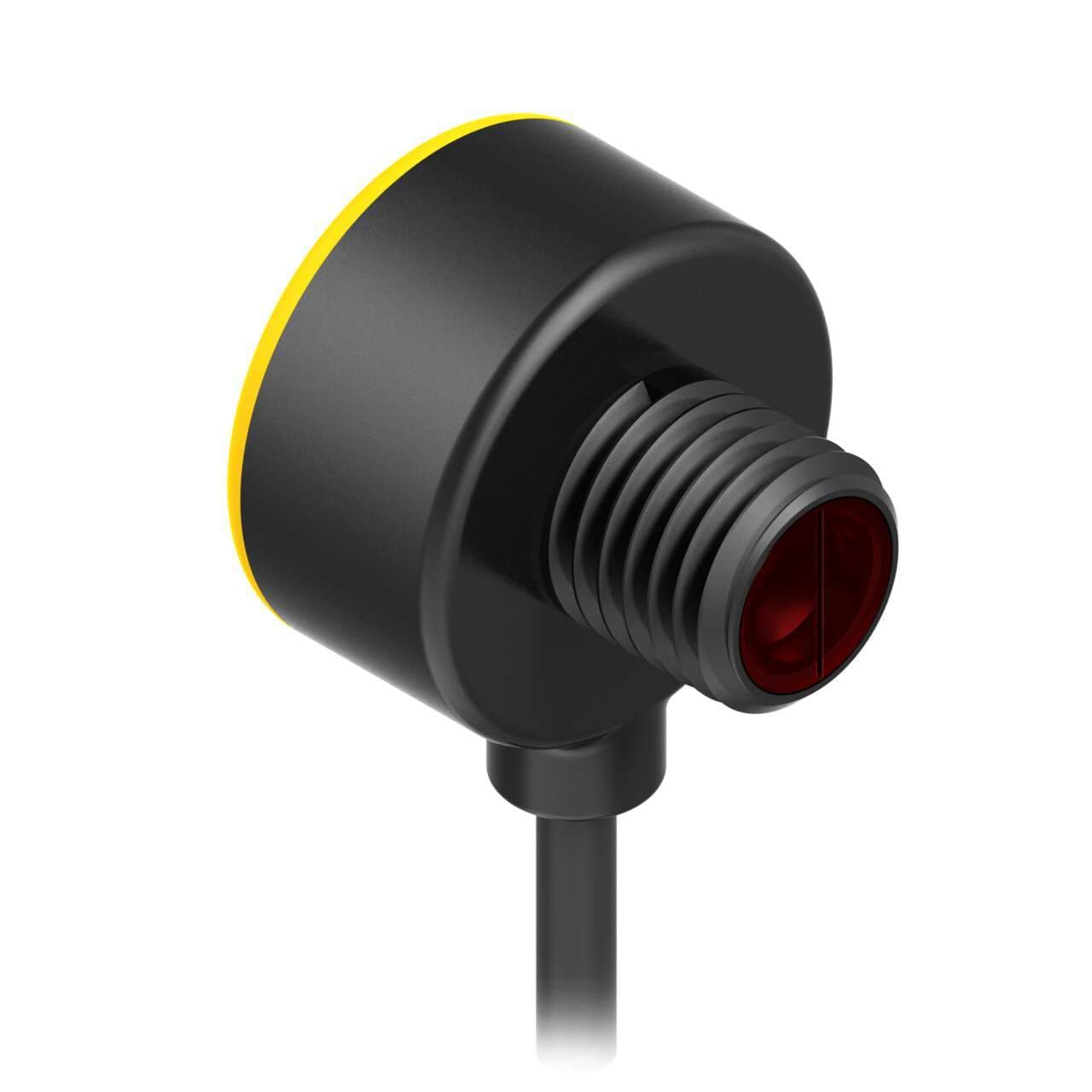

T8RP6D50 Banner Proximity Sensors
Part#:T8RP6D50
Alt. Part#:66661
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T8 Series: Diffuse; Range: 50 mm; Input: 10-30 V dc; Output: PNP Dark Operate; 2 m (6.5 ft) Cable
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 680 nm
- Order code / Manufacturer SKU 66661
- Primary brand Banner Engineering
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Functions Photo-electric sensor red LED (failure)
- Shape Cylindrical threaded/barrel
- Sensing distance 50mm
- Response time 1ms / 0.001 s
- Sub-range name T8 series
- Degree of protection IP67 NEMA 6
- Design diffuse mode
- Thread size M8
- Material thermoplastic housing Acrylic lns.
- Product series / family name EZ-BEAM series
- Light Color Visible red
- Ambient air temperature for operation -20...+55 °C
- Operating mode Dark-ON NC (Normally Closed)
- Digital outputs 1 x digital output (PNP transistor)
- Output response time (ms) 1 ON/0.5 OFF
- Adjustments N/A
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Diffuse
- Power Supply/Supply Voltage 10-30 V dc
- Lens Material Acrylic
- Feature: Hazardous Area No
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Operation Dark Operate
- Housing Style Barrel
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 50
- Connection Cable
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- NEMA Rating NEMA 6
- Max Op. Relative Humidity [%] 90% @ 50°C
- Cable Length (m) 2
- Power DC
- Min Op. Temp. (°C) -20
- Max Op. Temp. (°C) 55
- Delay at Power-up (ms) 150
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Feature: Audible No
- Sensing Mode (General) Proximity
- Repeatability (µs) 160
- Special Feature: Remote Teach No
- Outputs PNP
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Number of Pins 3
- IP Rating IP67
- Barrel Diameter (mm) 8
- DeviceNet No
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8RP6D50 on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering T8RP6D50 is a photo-electric sensor from the T8 series designed in a diffuse mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The T8RP6D50 can function within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP67 NEMA 6. Its shape is an M8 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance of the sensor is 50mm, and it emits visible red light with a wavelength of 680 nm. The response time is 1ms / 0.001 s, and it operates in a Dark-ON NC (Normally Closed) mode, with a thread size of M8.
