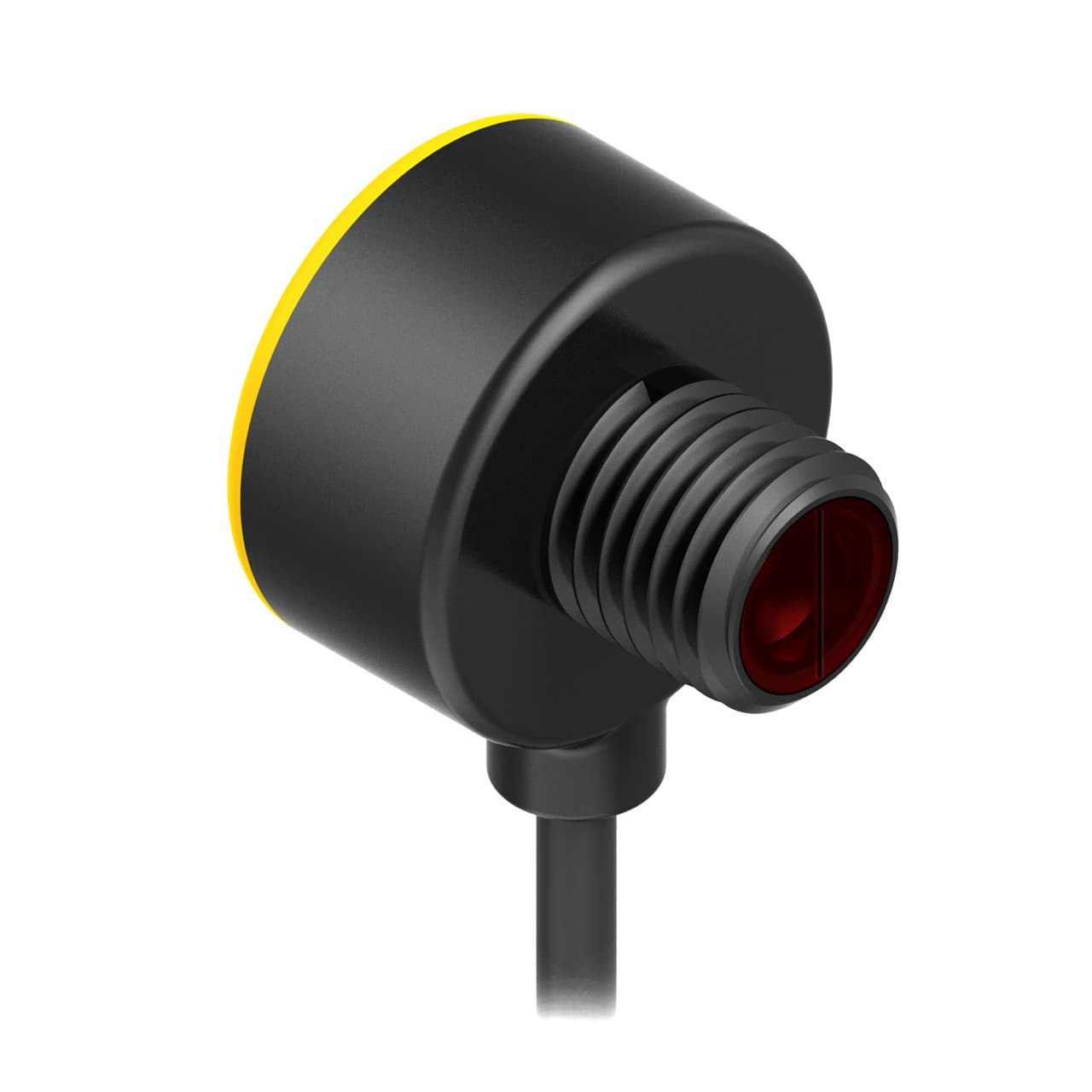

T8RP6D50 W/30 Banner Electronic Components

Product Details

• Sensing Mode (General)
  Proximity
• Operation
  Dark Operate
• IP Rating
  IP67
• Feature: Timing (Hold/Delay)
  No
• Power
  DC
• Max Sensing Distance (mm)
  50
• Cable Length (m)
  9
• Sensing Beam
  Visible Red LED
• Output response time (ms)
  1 ON/0.5 OFF
• Outputs
  PNP
• Min Op. Temp. (°C)
  -20
• Delay at Power-up (ms)
  150
• Special Feature: Intrinsically Safe
  No
• Repeatability (µs)
  160
• NEMA Rating
  NEMA 6
• Feature: Encapsulated
  No
• Feature: Hazardous Area
  No
• Feature: Audible
  No
• DeviceNet
  No
• IO Link
  No
Feature: Chemical Resistant
No
Input/Output
Discrete
Sensing Mode (Detailed)
Diffuse
Primary Housing Material
Thermoplastic
Connection
Cable
Max Op. Relative Humidity [%]
90% @ 50°C
Housing Style
Barrel
Max Op. Temp. (°C)
55
Quick Disconnect Type
No QD
Power Supply/Supply Voltage
10-30 V dc
Adjustments
N/A
Lens Material
Acrylic
Opposed Mode Emitter/Receiver
N/A
Number of Pins
3
Indicator
LEDs
Barrel Diameter (mm)
8
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
