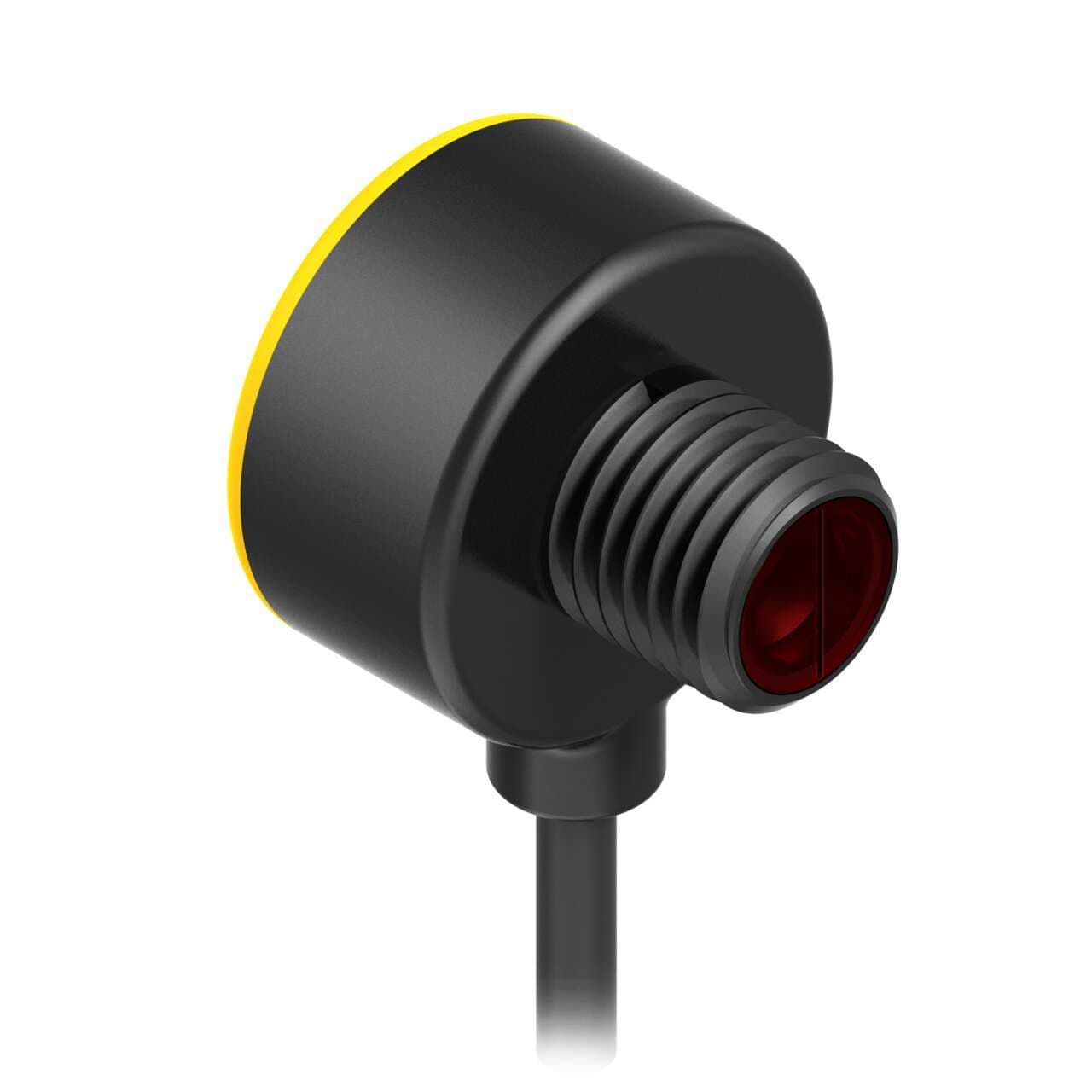

T8RP6D100Q Banner Proximity Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  MX
• Product series / family name
  EZ-BEAM series
• Design
  diffuse mode
• Wavelength
  680 nm
• Shape
  Cylindrical threaded/barrel
• Ambient air temperature for operation
  -20...+55 °C
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric sensor red LED (failure)
• Light Color
  Visible red
• Operating mode
  Dark-ON NC (Normally Closed)
• Material
  thermoplastic housing Acrylic lns.
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Thread size
  M8
• Digital outputs
  1 x digital output (PNP transistor)
• Primary brand
  Banner Engineering
• Response time
  1ms / 0.001 s
• Order code / Manufacturer SKU
  68691
• Sub-range name
  T8 series
• Sensing distance
  100mm
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
Degree of protection
IP67 NEMA 6
Sensing Mode (Detailed)
Diffuse
Connection
Pigtail QD
Delay at Power-up (ms)
150
Opposed Mode Emitter/Receiver
N/A
Housing Style
Barrel
Power Supply/Supply Voltage
10-30 V dc
Repeatability (µs)
160
Indicator
LEDs
Primary Housing Material
Thermoplastic
Special Feature: Intrinsically Safe
No
Number of Pins
3
Feature: Encapsulated
No
Outputs
PNP
Output response time (ms)
1 ON/0.5 OFF
NEMA Rating
NEMA 6
IO Link
No
Input/Output
Discrete
Min Op. Temp. (°C)
-20
IP Rating
IP67
Feature: Timing (Hold/Delay)
No
Power
DC
Max Op. Temp. (°C)
55
Lens Material
Acrylic
DeviceNet
No
Sensing Mode (General)
Proximity
Operation
Dark Operate
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Chemical Resistant
No
Sensing Beam
Visible Red LED
Quick Disconnect Type
M8 (Pico)
Special Feature: Water Detection
No
Barrel Diameter (mm)
8
Max Sensing Distance (mm)
100
Special Feature: Remote Teach
No
Adjustments
N/A
Feature: Hazardous Area
No
Feature: Audible
No
