T8RP6D50Q5 Banner Proximity Sensors
Part#:T8RP6D50Q5
Alt. Part#:70646
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T8 Series DIFFUSE; Range: 50 mm; Input: 10-30 V dc; Output: PNP/ DO; 150 mm Pigtail QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 150
- Feature: Encapsulated No
- Input/Output Discrete
- Operation Dark Operate
- NEMA Rating NEMA 6
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Output response time (ms) 1 ON/0.5 OFF
- Adjustments N/A
- IO Link No
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Special Feature: Water Detection No
- Indicator LEDs
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 4
- Barrel Diameter (mm) 8
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- Lens Material Acrylic
- DeviceNet No
- Max Sensing Distance (mm) 50
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 160
- Feature: Timing (Hold/Delay) No
- Outputs PNP
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8RP6D50Q5 on Powermatic Associates is $158.00. Order now.
About the product

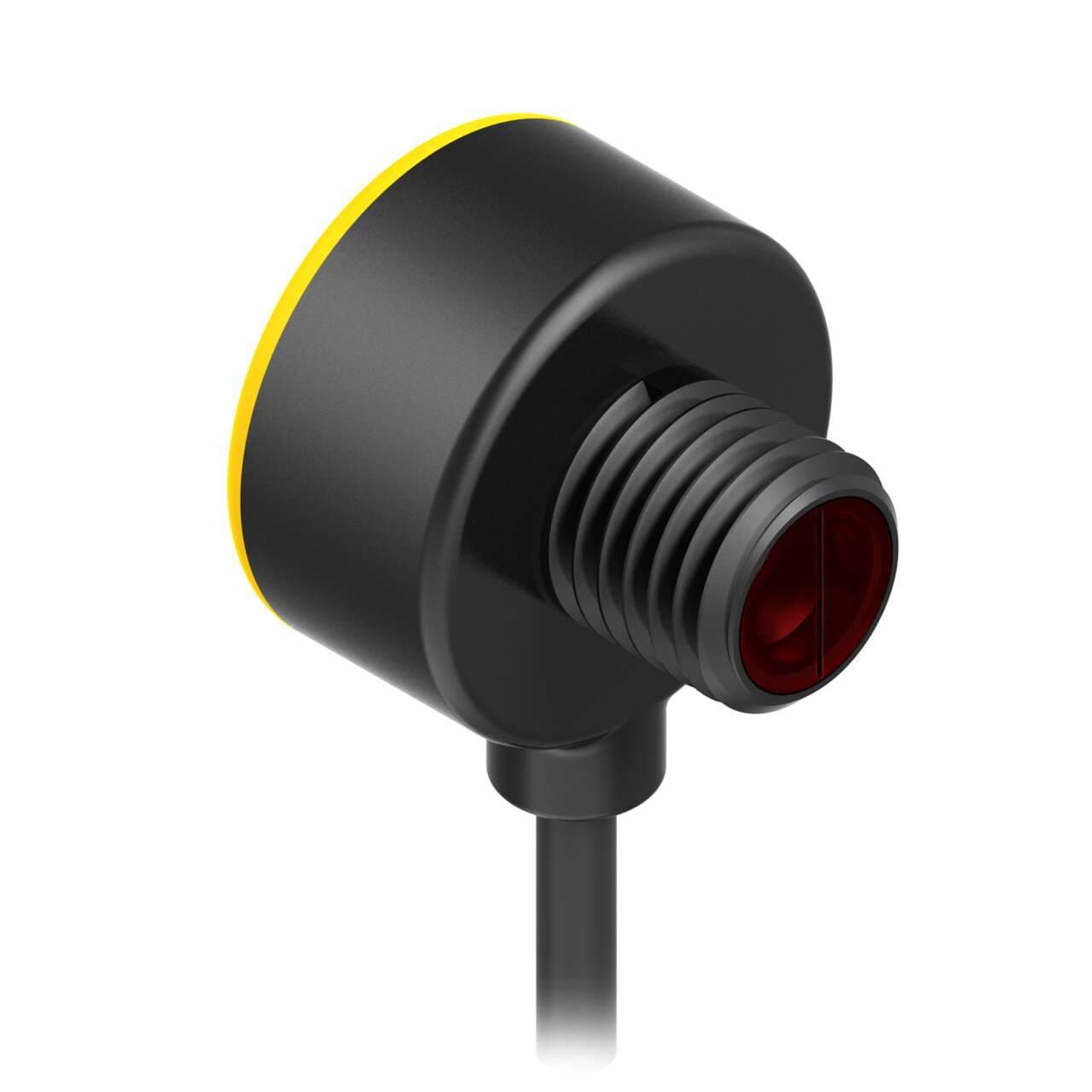

Banner Engineering T8RP6D50Q5 is a photo-electric sensor from the T8 series, designed in a diffuse mode with a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67 NEMA 6. It features an M8 cylindrical threaded/barrel shape, a single digital output (PNP transistor), and a sensing distance of 50mm. The light color is visible red, with a response time of 1ms / 0.001 s, operating in a Dark-ON NC (Normally Closed) mode. The wavelength of the light is 680 nm, and it has an M8 thread size.
