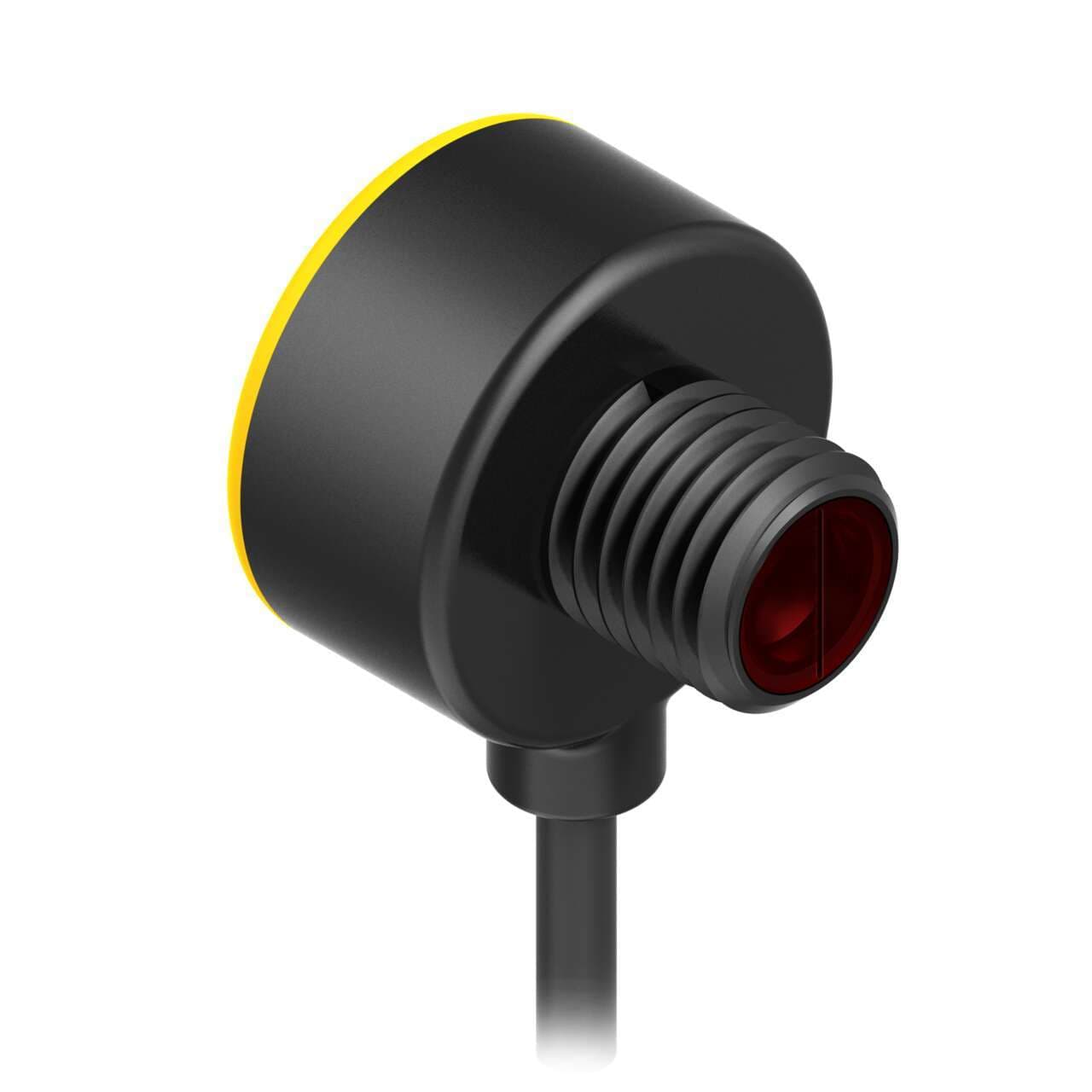

T8RP6D50Q Banner Proximity Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  MX
• Product series / family name
  EZ-BEAM series
• Design
  diffuse mode
• Sub-range name
  T8 series
• Sensing distance
  50mm
• Operating mode
  Dark-ON NC (Normally Closed)
• Degree of protection
  IP67 NEMA 6
• Order code / Manufacturer SKU
  66662
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Cylindrical threaded/barrel
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
• Material
  thermoplastic housing Acrylic lns.
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric sensor red LED (failure)
• Thread size
  M8
• Primary brand
  Banner Engineering
• Light Color
  Visible red
• Digital outputs
  1 x digital output (PNP transistor)
• Wavelength
  680 nm
Response time
1ms / 0.001 s
Ambient air temperature for operation
-20...+55 °C
Sensing Beam
Visible Red LED
Output response time (ms)
1 ON/0.5 OFF
Adjustments
N/A
IO Link
No
Sensing Mode (General)
Proximity
Power
DC
Input/Output
Discrete
Connection
Pigtail QD
Min Op. Temp. (°C)
-20
Special Feature: Remote Teach
No
Special Feature: Intrinsically Safe
No
Delay at Power-up (ms)
150
DeviceNet
No
Sensing Mode (Detailed)
Diffuse
Max Sensing Distance (mm)
50
Outputs
PNP
Quick Disconnect Type
M8 (Pico)
Max Op. Temp. (°C)
55
Special Feature: Water Detection
No
IP Rating
IP67
Number of Pins
3
Housing Style
Barrel
Primary Housing Material
Thermoplastic
Power Supply/Supply Voltage
10-30 V dc
Operation
Dark Operate
Repeatability (µs)
160
NEMA Rating
NEMA 6
Indicator
LEDs
Opposed Mode Emitter/Receiver
N/A
Feature: Encapsulated
No
Feature: Hazardous Area
No
Lens Material
Acrylic
Feature: Timing (Hold/Delay)
No
Max Op. Relative Humidity [%]
90% @ 50°C
Barrel Diameter (mm)
8
Feature: Audible
No
Feature: Chemical Resistant
No
