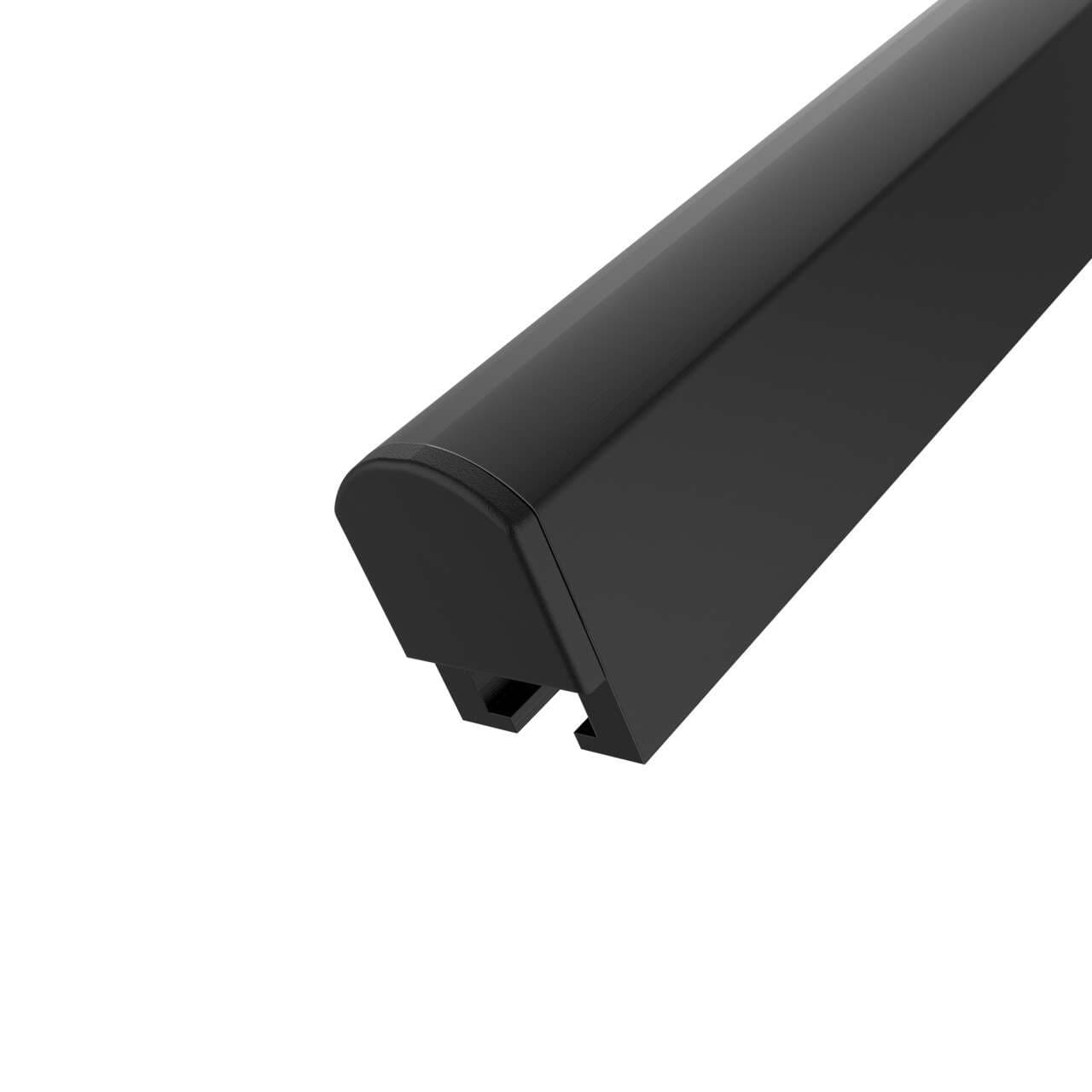

TTR533RPSD3T-1.0Q3-CTR Banner Safety Light Curtains
Part#:TTR533RPSD3T-1.0Q3-CTR
Alt. Part#:809855
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 3 Beam Sensor Array 21.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: DO PNP; Input: 18-30 V dc; 1 m (3.3 ft) M8 Conn. T: T-Slot Mount Endcap
Product Details
- Weight 340.194 g
- Country Of Origin MX
- End Cap Type T: T-Slot Mounting
- Sensing Mode (Detailed) Diffuse
- Housing Style Roller Conveyor
- Max Sensing Range (mm) 120
- Power Supply/Supply Voltage 18-30 V dc
- Connection Pigtail QD
- Operation Dark Operate
- Number of Pins 4
- Power DC
- Slot Overall Depth (mm) 19
- Cable Length (m) 1
- Outputs PNP
- Beam to Beam Spacing [mm] 162
- Primary Housing Material Black Anodized Aluminum
- Max Op. Temperature (°C) 55
- Slot Depth/Array Length (mm) 533
- Min Op. Temperature (°C) -10
- Adjustments N/A
- Quick Disconnect Type M8 (Pico)
- IP Rating IP50
- Delay at Power-up (ms) 1500
- Indicator Indicator LEDs
- Output response time (ms) 1
- Max Op. Relative Humidity (%) 95% @ 55°C
- Distance to First Beam [mm] 104.5
- Lens Material Polycarbonate
- Number of Beams 3
- NEMA Rating N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR533RPSD3T-1.0Q3-CTR on Powermatic Associates is $191.00. Order now.
About the product

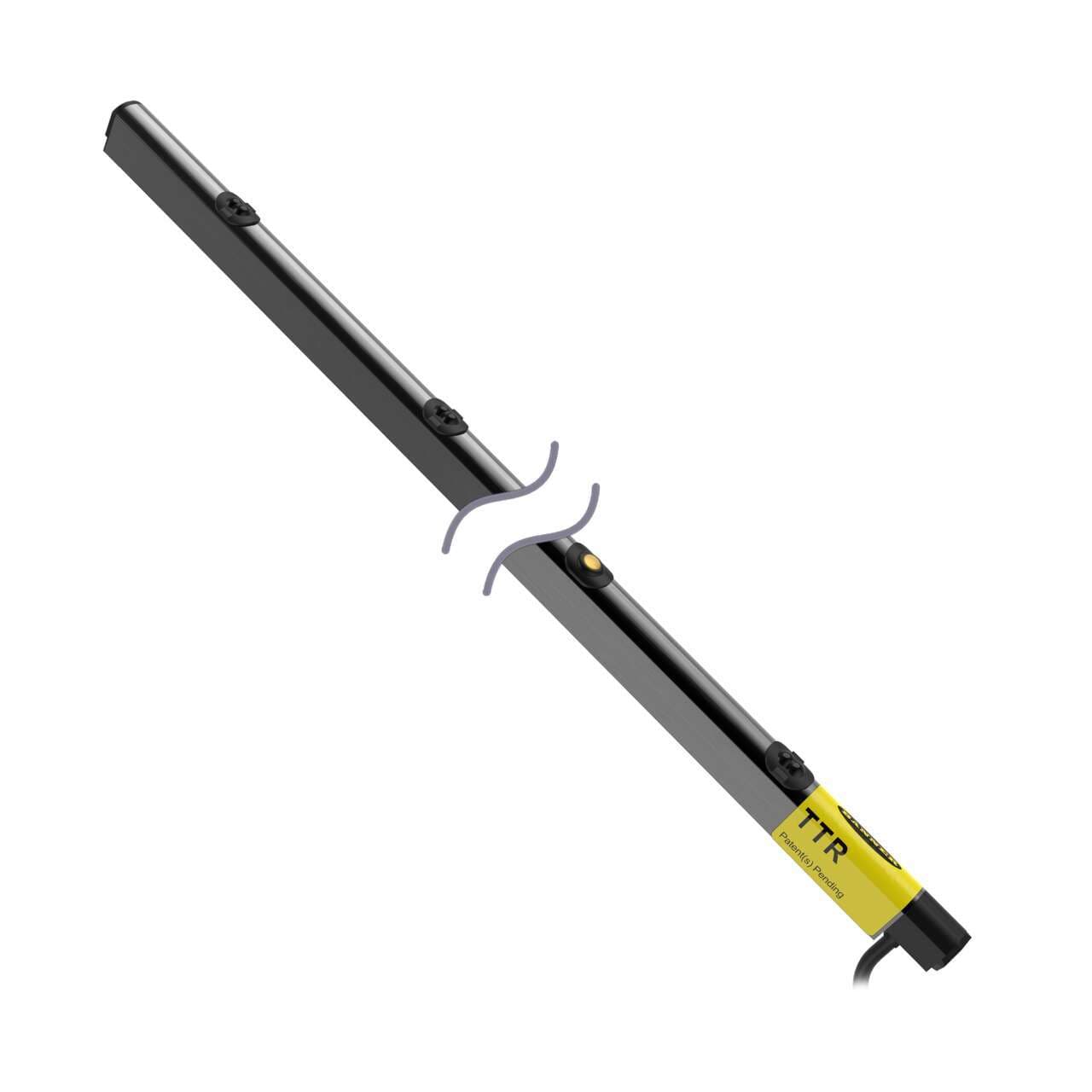

Banner Engineering TTR533RPSD3T-1.0Q3-CTR is a sensor array designed with a diffuse mode featuring 3 beams. This part is pre-wired with a 1m pigtail that terminates with an M8 connector. It has a rectangular shape with dimensions including a 533mm array length and a beam spacing/pitch of 162mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to operate within an ambient air temperature range of -10 to +70°C and offers a degree of protection rated at IP50. The sensor provides 1 x digital output (PNP transistor) and has a sensing distance of 120mm. The light emitted by the sensor is in the infrared (IR) spectrum with a wavelength of 940 nm.
